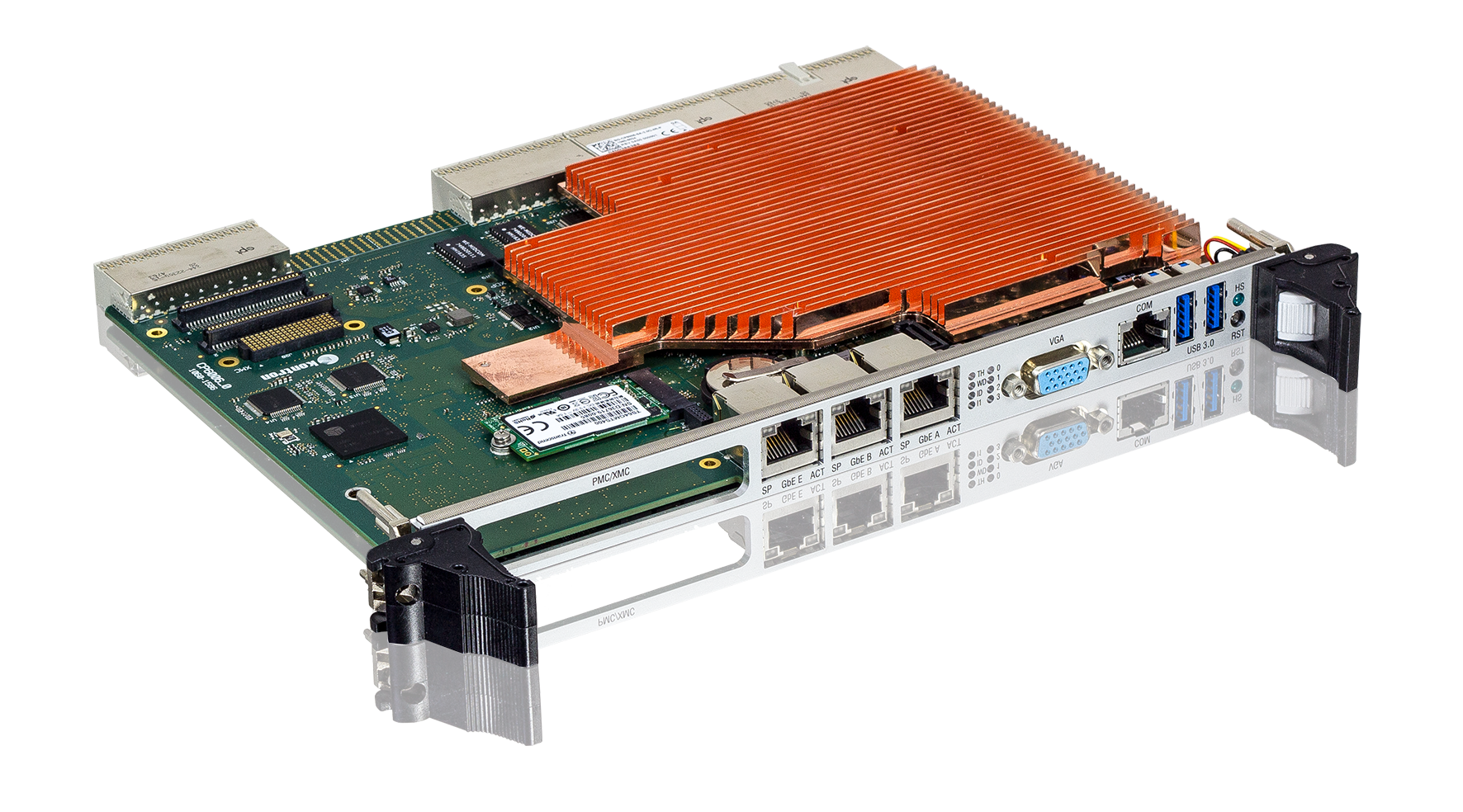

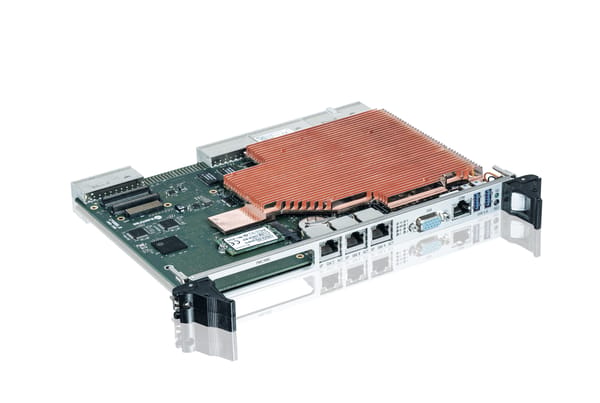

CompactPCI® Intel® Xeon® D Server Blade
Mouseover Zoom loading...
  • PICMG2.16 system/peripheral 8-core CPU board
  • DDR4 ECC maximum storage for virtualisation
  • High bandwidth backplane options
  • European production and development
Download Datasheet

For server applications in industrial and harsh environments

    • 4HP single slot CPU board with passive cooling
    • Xeon® class server features
    • 2-16 processor cores option, scalable processor power
    • 10 years Intel silicon reliability
    • DDR4 SO-DIMM memory with ECC up to 32GB
    • 64GB RAM option for best support of virtualisation
    • 5x GigEthernet, SATA Gen3
    • Onboard XMC/PMC, SSD flash
    • Graphics 2D SM750 assembled
    • Rear I/O supporting PICMG2.16
    • CP6006X-SA: backplane J4 for PCIe 3 x8, 10GbETH, SATA 6Gb
    • Trusted Platform Module TPM 2.0 option


Octo Core Intel® Xeon® D Server CPU

CP6006 is a server class CPU platform, designed and produced in Germany. CP6006 is based on the 14nm technology Intel® Xeon® D-1500 processor with 8 CPU cores (options 2–16 cores), with excellent performance-per-watt values. Its scalable power budget allows users to tailor the power dissipation to their requirements. CP6006-SA provides cooling mechanics for standard air cooled systems.

Safe investment by virtualisation

CP6006 is well suited for advanced Multi-CPU server applications, built as virtual machines. By using virtualization, any CP6006 based platform becomes a future proof investment. The well established CompactPCI eco system, combined with a long availability of the XEON D-1500 processor family and 10 years Intel reliability, make it a safe choice.

For 19” Rackmount servers with higher demands

The outstanding Xeon® server capabilities can be combined with a storage capacity of 32 GB DDR4 with ECC, to allow for virtualization support. This makes CP6006-SA the ideal choice for servers and computing nodes, when ordinary 19” Rackmount systems do not meet the required robustness and longevity.

Versatility in communication, storage, extensions

The Xeon D system on a chip (SoC) has an integrated platform controller hub (PCH), two integrated 10 Gigabit Ethernet ports, and integrated I/O such as USB and Serial ATA channels. Different Serial ATA storage devices can be used with CP6006: an onboard M.2 flash device, or others such as a 2.5" HDD/SSD by using the additional onboard cable connection or one of the rear transition modules. The highly integrated CP6006-SA also features an XMC site supporting x8 PCI Express® and alternatively a PMC site for various market available extensions. Based on the Kontron rear I/O concept, existing rear I/O transition modules are fully functional on the CP6006-SA, where the CP6006X-SA provides additional 10GbE and PCI-Express on the backplane for communication between CompactPCI® slots.

PCI Express® and 10 Gigabit Ethernet via backplane PICMG2.20-based

PCI Express® and 10 Gigabit Ethernet is enabled via a high speed backplane connector at J4 position and the signalling according to PICMG2.20. The function is provided as additional option beyond PICMG2.16 by the product variant CP6006X-SA. In detail: high bandwidth x8 PCI-Express® Gen3 and two lanes of 10 Gigabit Ethernet. The PICMG2.20 based products are the right choice whenever highest data throughput and maximum bandwidth within the system is required. Further PICMG2.20 based products are the GPU carrier CP6108X and sample backplanes for system integration.


Processor Intel® Xeon® Processor D-1500, integrating a PCH and a dual 10 GbE NIC.
D-1539, 8 core, 12 MByte cache, 1.6 GHz
D-1548, 8 core, 12 MByte cache, 2.0 GHz
D-1559, 12 core, 18 MByte cache, 1.5 GHz, on request
Main Memory 16 / 32 / 64 GByte SODIMM dual channel DDR4 with ECC, up to 2133 MHz
per channel; 64 GByte requires 8HP extension on bottom side
SATA Four ports fi xed to rear I/O, one port for a standard SATA connector,
one port supporting M.2 SSD fl ash (type 2280 or 2242 double sided)
Serial COM1 (RS232) routed to front panel and rear I/O
COM2 (RS232/RS422) routed to rear I/O only
Rear I/O J3: 2x ETH acc. PICMG 2.16, 2x ETH, VGA, COM 1/2, 4x USB, GPIO, fan sense
J4: CP6006-SA: not assembled;
J4: CP6006X-SA ZD-plus connector: 2x 10GBASE-KR, x8 PCIe Gen 3, 2x SATA 6Gb/s
J5: 2-4x SATA, 2x DVI/HDMI, battery, fan control, additional GPIO
Security Kontron Security Solution, Trusted Platform Module (TPM) 2.0
IPMI IPMI 1.5-compliant for IPMI based management and CompactPCI® System
Management PICMG 2.9 R1.0



Datasheet CP6006(X)-SA
[ cp6006x-sa_20210305_datasheet.pdf, 1.15 MB, Mar.09.2021 ]


CP6006(X)-SA User Guide
Rev. 1.2, 2021-03-25
[ cp6006-sa_user_guide_v1-2_2021_03_25.pdf, 5.58 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

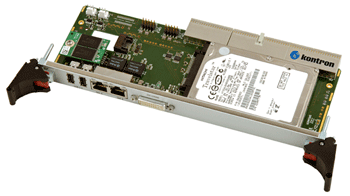

CP-RIO6-001 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 processor board more
CP-RIO6-A / CP-RIO6-A216
CP-RIO6-A / CP-RIO6-A216 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 & CP6016 card more

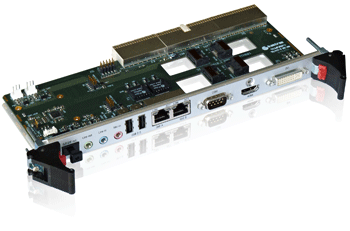

CP-RIO6-B / CP-RIO6-B216
CP-RIO6-B / CP-RIO6-B216 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 card more

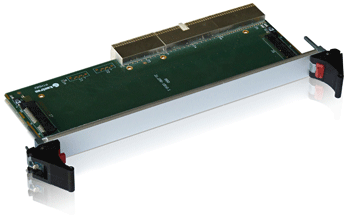

CP-RIO6-M 4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 & CP6016 card more
