For server applications in industrial and harsh environments
Octo Core Intel® Xeon® D Server CPU

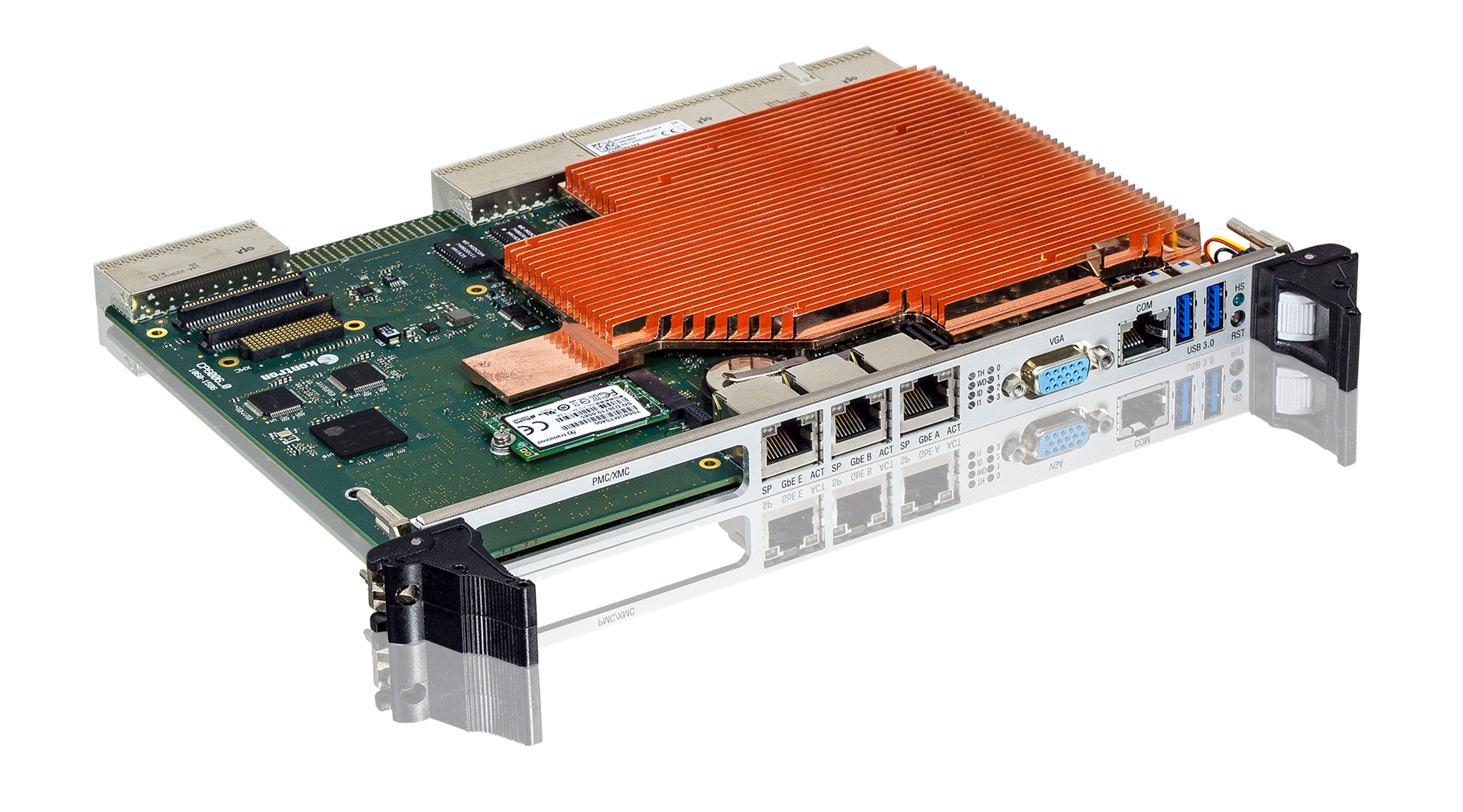

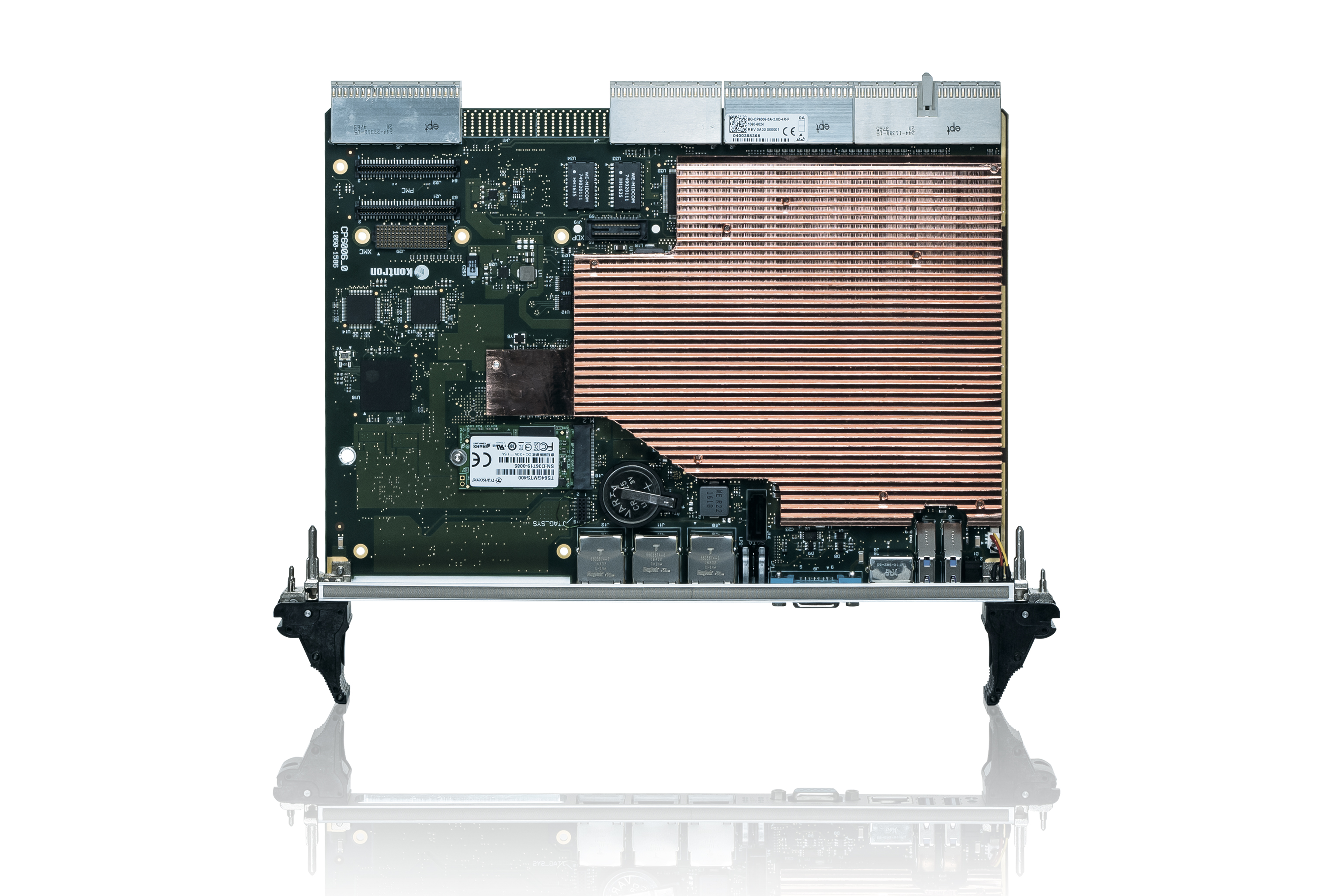

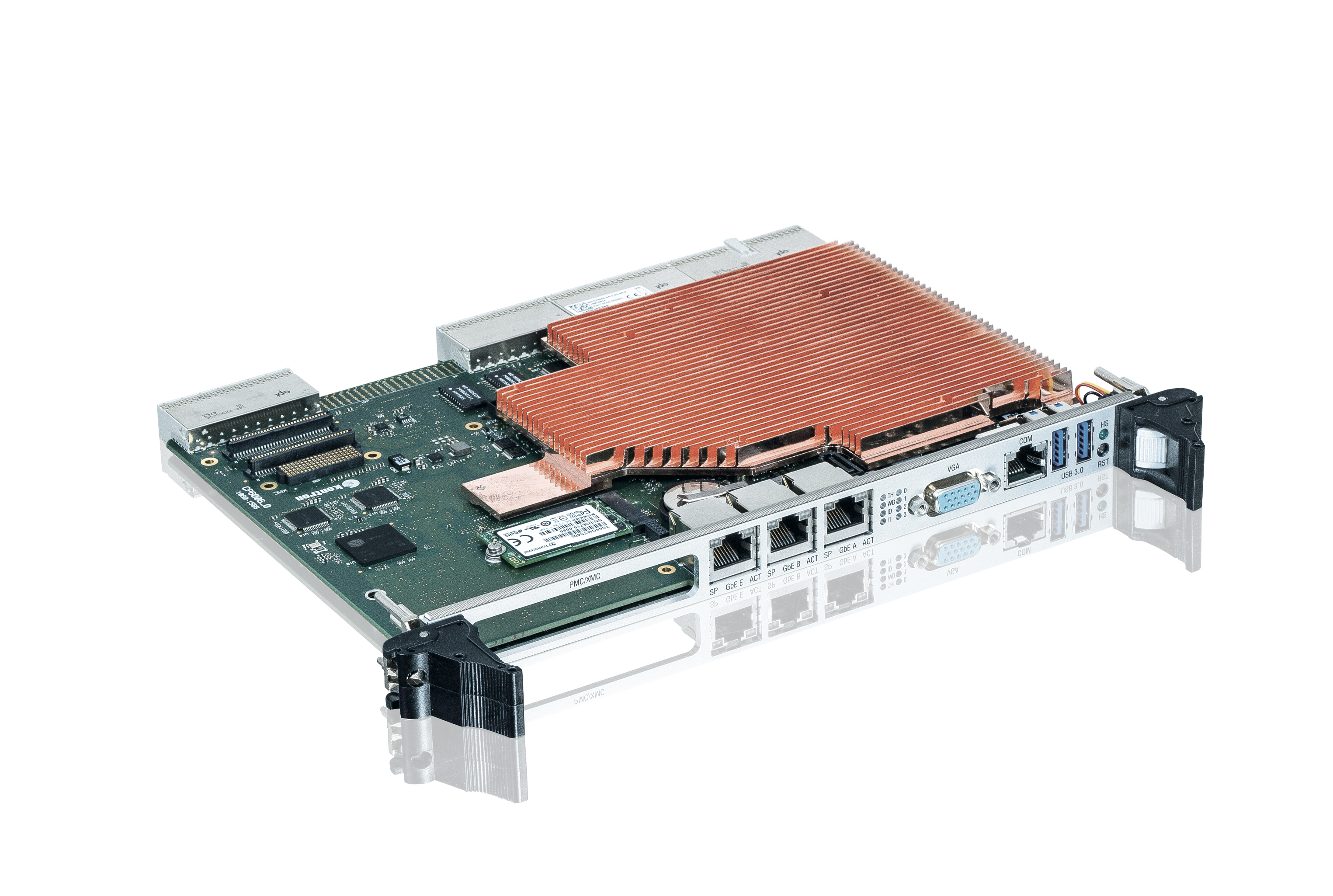

CP6006 is a server class CPU platform, designed and produced in Germany. CP6006 is based on the 14nm technology Intel® Xeon® D-1500 processor with 8 CPU cores (options 2–16 cores), with excellent performance-per-watt values. Its scalable power budget allows users to tailor the power dissipation to their requirements. CP6006-SA provides cooling mechanics for standard air cooled systems.
Safe investment by virtualisation
CP6006 is well suited for advanced Multi-CPU server applications, built as virtual machines. By using virtualization, any CP6006 based platform becomes a future proof investment. The well established CompactPCI eco system, combined with a long availability of the XEON D-1500 processor family and 10 years Intel reliability, make it a safe choice.
For 19” Rackmount servers with higher demands
The outstanding Xeon® server capabilities can be combined with a storage capacity of 32 GB DDR4 with ECC, to allow for virtualization support. This makes CP6006-SA the ideal choice for servers and computing nodes, when ordinary 19” Rackmount systems do not meet the required robustness and longevity.
Versatility in communication, storage, extensions
The Xeon D system on a chip (SoC) has an integrated platform controller hub (PCH), two integrated 10 Gigabit Ethernet ports, and integrated I/O such as USB and Serial ATA channels. Different Serial ATA storage devices can be used with CP6006: an onboard M.2 flash device, or others such as a 2.5" HDD/SSD by using the additional onboard cable connection or one of the rear transition modules. The highly integrated CP6006-SA also features an XMC site supporting x8 PCI Express® and alternatively a PMC site for various market available extensions. Based on the Kontron rear I/O concept, existing rear I/O transition modules are fully functional on the CP6006-SA, where the CP6006X-SA provides additional 10GbE and PCI-Express on the backplane for communication between CompactPCI® slots.
PCI Express® and 10 Gigabit Ethernet via backplane PICMG2.20-based
PCI Express® and 10 Gigabit Ethernet is enabled via a high speed backplane connector at J4 position and the signalling according to PICMG2.20. The function is provided as additional option beyond PICMG2.16 by the product variant CP6006X-SA. In detail: high bandwidth x8 PCI-Express® Gen3 and two lanes of 10 Gigabit Ethernet. The PICMG2.20 based products are the right choice whenever highest data throughput and maximum bandwidth within the system is required. Further PICMG2.20 based products are the GPU carrier CP6108X and sample backplanes for system integration.
|Processor||Intel® Xeon® Processor D-1500, integrating a PCH and a dual 10 GbE NIC.
D-1539, 8 core, 12 MByte cache, 1.6 GHz
D-1548, 8 core, 12 MByte cache, 2.0 GHz
D-1559, 12 core, 18 MByte cache, 1.5 GHz, on request
|Main Memory||16 / 32 / 64 GByte SODIMM dual channel DDR4 with ECC, up to 2133 MHz
per channel; 64 GByte requires 8HP extension on bottom side
|SATA||Four ports fi xed to rear I/O, one port for a standard SATA connector,
one port supporting M.2 SSD fl ash (type 2280 or 2242 double sided)
|Serial||COM1 (RS232) routed to front panel and rear I/O
COM2 (RS232/RS422) routed to rear I/O only
|Rear I/O||J3: 2x ETH acc. PICMG 2.16, 2x ETH, VGA, COM 1/2, 4x USB, GPIO, fan sense
J4: CP6006-SA: not assembled;
J4: CP6006X-SA ZD-plus connector: 2x 10GBASE-KR, x8 PCIe Gen 3, 2x SATA 6Gb/s
J5: 2-4x SATA, 2x DVI/HDMI, battery, fan control, additional GPIO
|Security||Kontron Security Solution, Trusted Platform Module (TPM) 2.0|
|IPMI||IPMI 1.5-compliant for IPMI based management and CompactPCI® System
Management PICMG 2.9 R1.0
