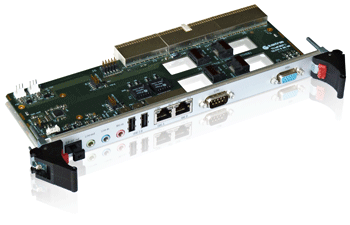

The CP-RIO6-A is a 4HP Rear I/O interface for a CP6002, CP6003, CP6004, CP6005, CP6006 & CP6016 Compact PCI card complying to Kontron\'s proprietary RTM pinout. This RTM unit will provide USB, Ethernet, serial,VGA, USB Flash, and SATA connection.
The CP-RIO6-A216 version is compliant to PICMG2.16 and has therefore the two rear IO Gigabit Ethernet channels routed to the backplane.
|Additional||Headers for FAN control, High Definition Audio|
|Ethernet||2x GbE (RJ45) at rear panel, CP-RIO6-A216 ETH to backplane|
|Flash Disk||2x USB Flash headers|
|Hard Disk||No local hard disk|
|SATA||4x SATA cable connectors|
|Serial||1x RS232 at rear panel; 1x headers|
|Temperature/Humidity||0-60°C, 93% rel. humidity|
|USB||2x type A connector at rear panel, 2x USB flash disk connector|
|Video Output||VGA SUB-D at rear panel|
CP-RIO6-Ax/Bx Users Manual
[ 1030-8996_20_sk-man-cp-rio6-ax_bx.pdf, 400.38 KB, Sep.11.2017 ]
CP-RIO6-Ax/Bx Introduction Manual
[ 1030-8996_20_sk-man-cp-rio6-ax_bx_introduction.pdf, 239.67 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
