CP-RIO6-B / CP-RIO6-B216

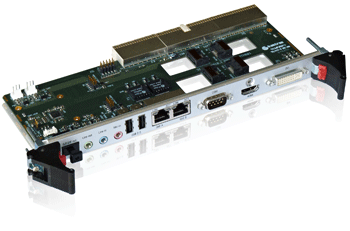

4HP Rear I/O interface for a 6U CompactPCI CP6002, CP6003, CP6004, CP6005, CP6006 card
  • Single slot (4HP)
  • Header connectors for 4xSATA, 2xUSB2.0 Flash Disk, 1xRS232
  • USB Flash Support
  • Rear panel connectors for 2x Ethernet (not B216), DVI, HDMI, 2x USB, HD Audio, RS232
  • Software Packages for Windows & Linux

The CP-RIO6-B is a 4HP Rear I/O interface for a CP6002, CP6003, CP6004, CP6005, CP6006 Compact PCI card complying to Kontron\'s proprietary RTM pinout. This RTM unit will provide USB, Ethernet, serial,DVI, HDMI, USB Flash, and SATA connection.
The CP-RIO6-B216 version is compliant to PICMG2.16 and has therefore the two rear IO Gigabit Ethernet channels routed to the backplane.


Additional Headers for FAN control, High Definition Audio
Ethernet 2x GbE (RJ45) at rear panel, CP-RIO6-B216 ETH to backplane
Flash Disk 2x USB Flash headers
Hard Disk No local hard disk
Keyboard n/a
Mouse n/a
SATA 4x SATA cable connectors
Serial 1x RS232 at rear panel; 1x headers for RS422
Temperature/Humidity 0-60°C, 93% rel. humidity
USB 2x type A connector at rear panel, 2x USB flash disk connector
Video Output DVI-D and HDMI connector at rear panel
