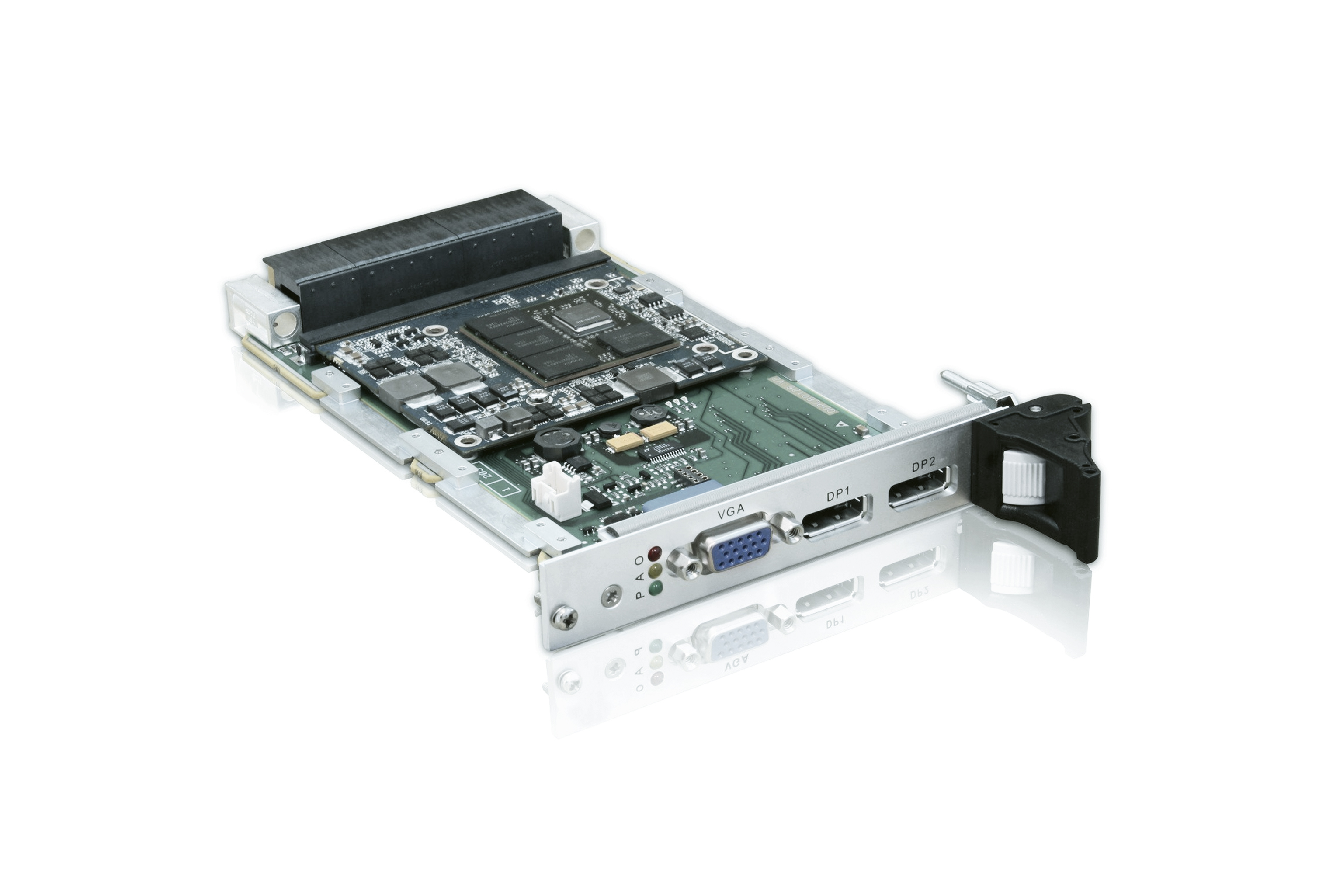

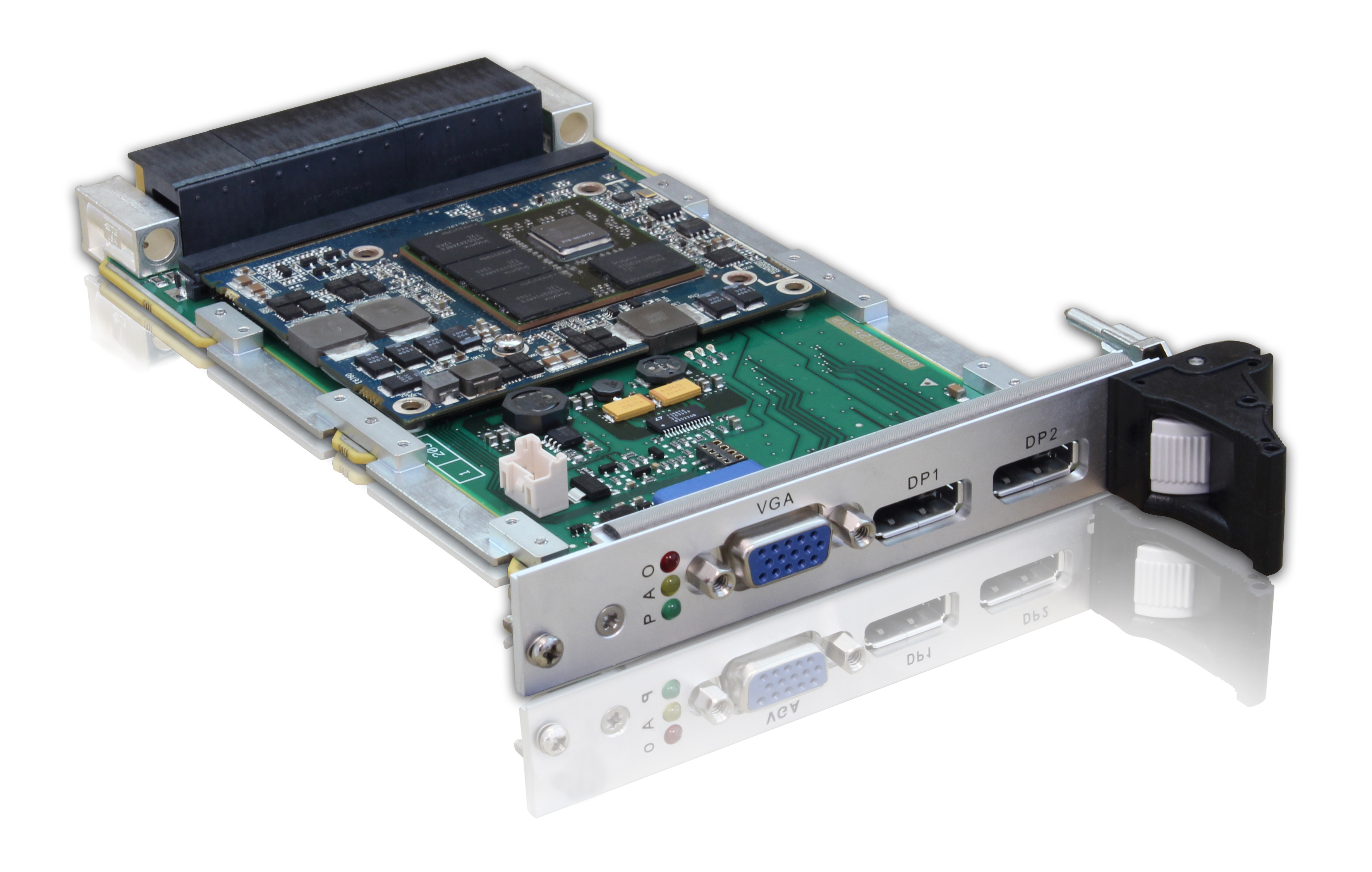

VX3327
Versatile 3U VPX GPU/GPGPU board
Mouseover Zoom loading...
Specifications
- ATI Radeon™ E6760 Silicon
- Modular design: MXM 3.0 mezzanine
- High-End graphics GPU, parallel processing GPGPU
- Three independent Displays: one VGA and two DP
- Air-cooled and rugged conduction-cooled versions
The VX3324 and VX3327 offer high-end graphics and exceptional parallel processing capabilities provided by the latest graphics processing units (GPUs) from AMD Radeon™.
The Kontron VX3327 with AMD Radeon™ E6760 graphics is drilled toward high-performance applications. VX3327 boasts 480 cores at 600 MHz and 1 GB GDDR5 for up to 576 GFlops single-precision floating-point performance.
VX3327 supports up to three independent displays through one VGA interface and two DisplayPorts, available as front or rear I/O. VX3327 is available in an air-cooled (0°C to +55°C) one inch (5HP) version and conduction-cooled (-40°C to +85°C) 0.8 inch (4HP) version.
The Kontron VX3327 with AMD Radeon™ E6760 graphics is drilled toward high-performance applications. VX3327 boasts 480 cores at 600 MHz and 1 GB GDDR5 for up to 576 GFlops single-precision floating-point performance.
VX3327 supports up to three independent displays through one VGA interface and two DisplayPorts, available as front or rear I/O. VX3327 is available in an air-cooled (0°C to +55°C) one inch (5HP) version and conduction-cooled (-40°C to +85°C) 0.8 inch (4HP) version.
Features
| Form Factor | MXM Version 3.0, Type A mounted on a 3U VPX carrier card (onboard PCIe retimer enhances signal integrity) |
| Display | One VGA port and 2 DisplayPorts, up to 30 bits per pixel |
| Interface | PCI-Express® Base Specifi cation Revision 2.1, gen2 speed, ×1, ×2, ×4 and ×8 |
| Main Memory | 1 GB GDDR5, 128 bits, 800 MHz |
Downloads
Datasheets
Datasheet VX3327
[ vx3327_20170926_datasheet.pdf, 1.18 MB, Sep.26.2017 ]
VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 889.98 KB, Mar.20.2025 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Managing 3rd gen High Data Rates on VPX Backplanes
This white paper describes the key parameters that must be mastered to achieve high data rates on VPX architectures. It explains some of the technologies used by Kontron to operate VPX computers at top bandwidth (eg PCIe gen3, 10G/40G Base KR)
[ whitepaper_vpx_highdatarates.pdf, 3.49 MB, Apr.21.2017 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
