MediClient New

All-in-one Medical Panel PC meets highest requirements for hygiene and connectivity
Mouseover Zoom loading...
Specifications
  • Easy connection to hospital IT: connectivity wireless (WiFi, BT) or via isolated Ethernet interfaces and isolated serial ports
  • Anti-glare and anti-fingerprint surface finish for best readability
  • Seamless, flush all-glass front for best cleanability
  • Robust powder coated stainless steel housing
  • PCAP touch operation even with medical gloves
  • Customization such as branding, I/Os, computing performance, software integration, etc.
  • IEC 60601-1 compliant
Download Datasheet

All-in-one Medical Panel PC MediClient meets highest requirements for hygiene and connectivity

The all-in-one Panel PC MediClient with special anti-glare and anti-fingerprint display for best readability meets the high requirements in the medical sector for hygiene and connectivity. The system conforms to DIN EN 60601-1 and is particularly suitable for use in nurses’ stations, operating rooms, intensive care units, laboratories, pharmacies and clean rooms.

With its robust, joint-free front made of continuous tempered glass, the MediClient is easy to clean. The rear of the device, made of powder-coated stainless steel, is just as easy to clean and disinfect and ensures lasting mechanical stability. The PCAP touch display with anti-glare and anti-fingerprint surface finish can be operated even with overlapping medical gloves and is perfectly readable even in difficult lighting conditions. The touchscreen in 16:9 format detects drops (drop rejection) and supports palm rejection. Easy integration into the infrastructure is enabled by the integrated power supply, which is isolated according to EN 60601-1. Data transfer between different medical devices and hospital information systems is ensured by wireless interfaces (WiFi, BT) and the EN 60601-1 certified and isolated interfaces. In addition, the MediClient supports the SDC standard (Service-oriented Device Connectivity) and thus standardized communication across manufacturer boundaries.

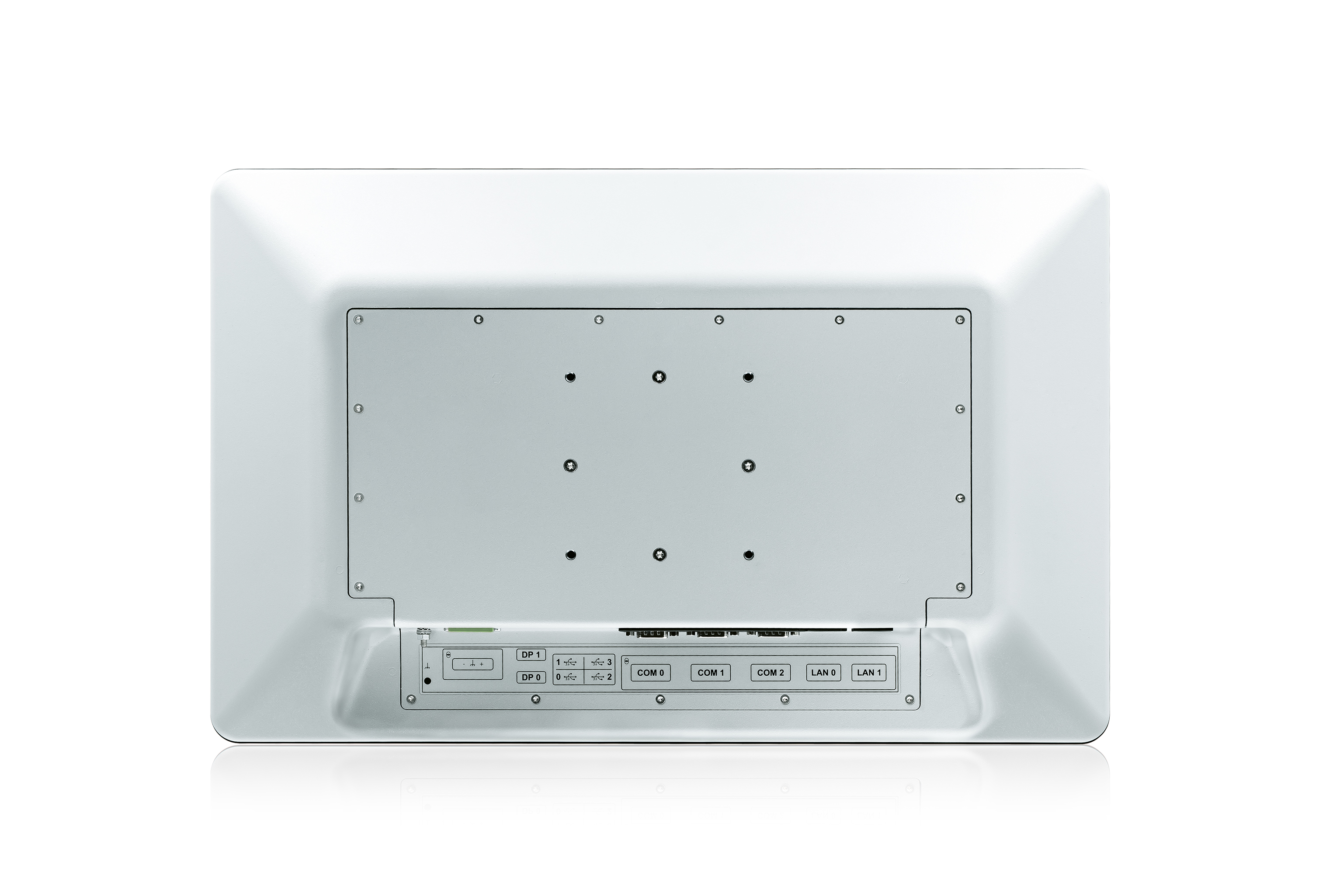

The new MediClient has a special design feature: the device consists of two separable functional units – the display unit with display and PCAP touch as well as the computing unit with CPU and memory, so that both units are easily exchangeable in case of service requirements. The Kontron MediClient All-in-one Panel PC is shock and vibration resistant and offers numerous standard interfaces with compact dimensions, including 4 x USB 3.2 Gen 2, 2 x GbE (2 MOOP), 3 x RS232 (2 MOOP) and 2 x DP++.

The fanless design ensures silent operation and high reliability with an MTBF of more than 50,000 hours. Thanks to VESA 100 mounting, the panel PC can be mounted on swivel arms or wall mounts in just a few steps. The MediClient supports Windows 10 IOT and Linux and is equipped with Intel® Core™ i5-8365UE processors or Intel® Celeron® 4305UE processors as standard.

Customized solutions can be implemented quickly and cost-effectively, from flexibility in computing performance and memory expansion, to application-specific touch settings, I/O customizations, security hardening of BIOS and operating system, software installation, individual branding, customized service and repair kits, up to special packaging.

Downloads

Solution Brief

Intel Solution Brief: Future of Patient Monitoring and Connected Healthcare
To provide connectivity and intelligence for digital healthcare applications, the medical-grade Kontron MediClientPanel PC offers a powerful, extensible foundation based on Intel® Core™ and Intel® Celeron® processors.
[ kontron_intel_solution-brief_mediclient.pdf, 1.29 MB, Oct.02.2023 ]

Datasheets

MediClient_datasheet
[ mediclient_datasheet.pdf, 1.81 MB, Oct.26.2023 ]

Manuals

MediClient User Guide
Rev 1.0 Mar. 10, 2023
[ mediclient_21-5_23-8_user-guide_rev_1-0_2023-03-10.pdf, 2.98 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Quick Reference Guide

MediClient_MediView_Overview
[ mediclientmediview-overview.pdf, 1.09 MB, Jan.25.2022 ]

Tech Spec Sheet

Tech Specs HMI
[ tech-specs_hmi.pdf, 1.44 MB, Nov.02.2023 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
