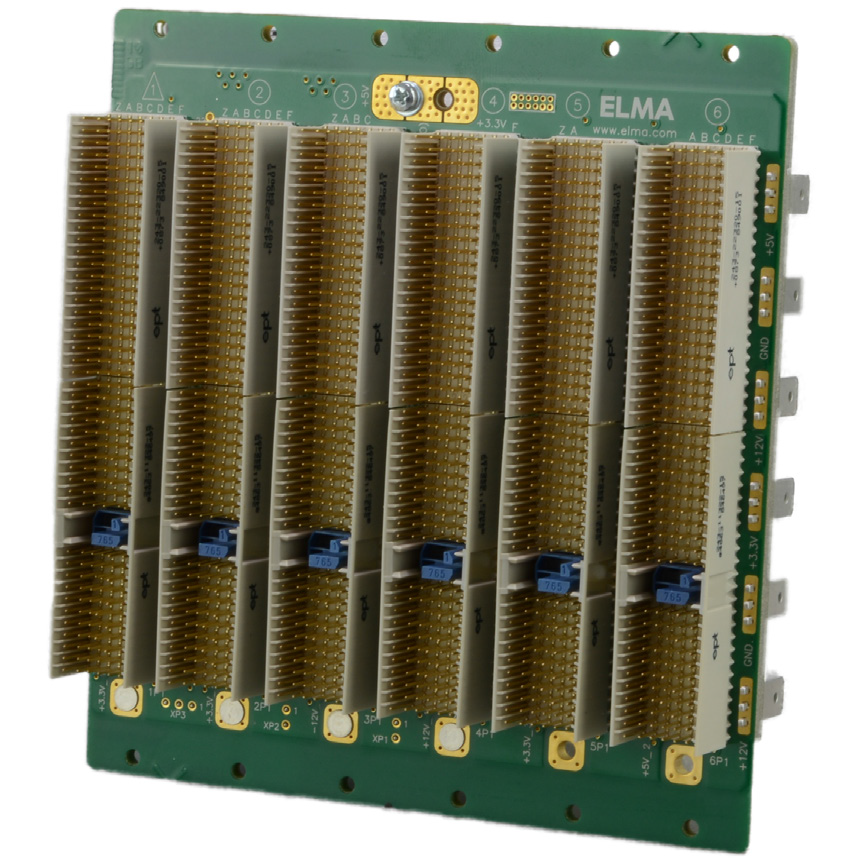

CP-BP-KIT

CPCI Backplane Kits with Power Connectors
Specifications
  • Positronic P47 and M-type power connectors
  • 2-8 slots, bridge option for more
  • Hot swap capability
  • IPMI management

The CP-BP-KIT series provides backplanes for operation at 33 MHz with 2-8 slots. Backplanes with 2-5 slots are available for 66 MHz bus frequency as well. The slot count can be extended to 10-21 by a bridge option. There are versions with 32 bit routing with rear I/O as well as 64- bit routing. Hot swap and IPMI management is supported. CP-BP-KIT backplanes have excellent EMI properties.

Power connection boards with Positronic P47 or M24/8 type connectors and modules to interconnect with the backplanes are included in the KIT. The advantage is mechanical flexibility, and cabling is avoided for easy installation and long term reliability. Supported standards:

  • PICMG 2.0 R3.0 CPCI Core Specification
  • PICMG 2.1 R2.0 Hot Swap Specification
  • PICMG 2.9 R1.0 System Management Specification

Downloads

Datasheets

CP-BP-KIT Datasheet
[ cp-bp-kit_20210218_datasheet.pdf, 430.08 KB, Feb.18.2021 ]

CPCI backplanes General Datasheet
[ cpci-backplanes-general-datasheet.pdf, 3.44 MB, Feb.18.2021 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
