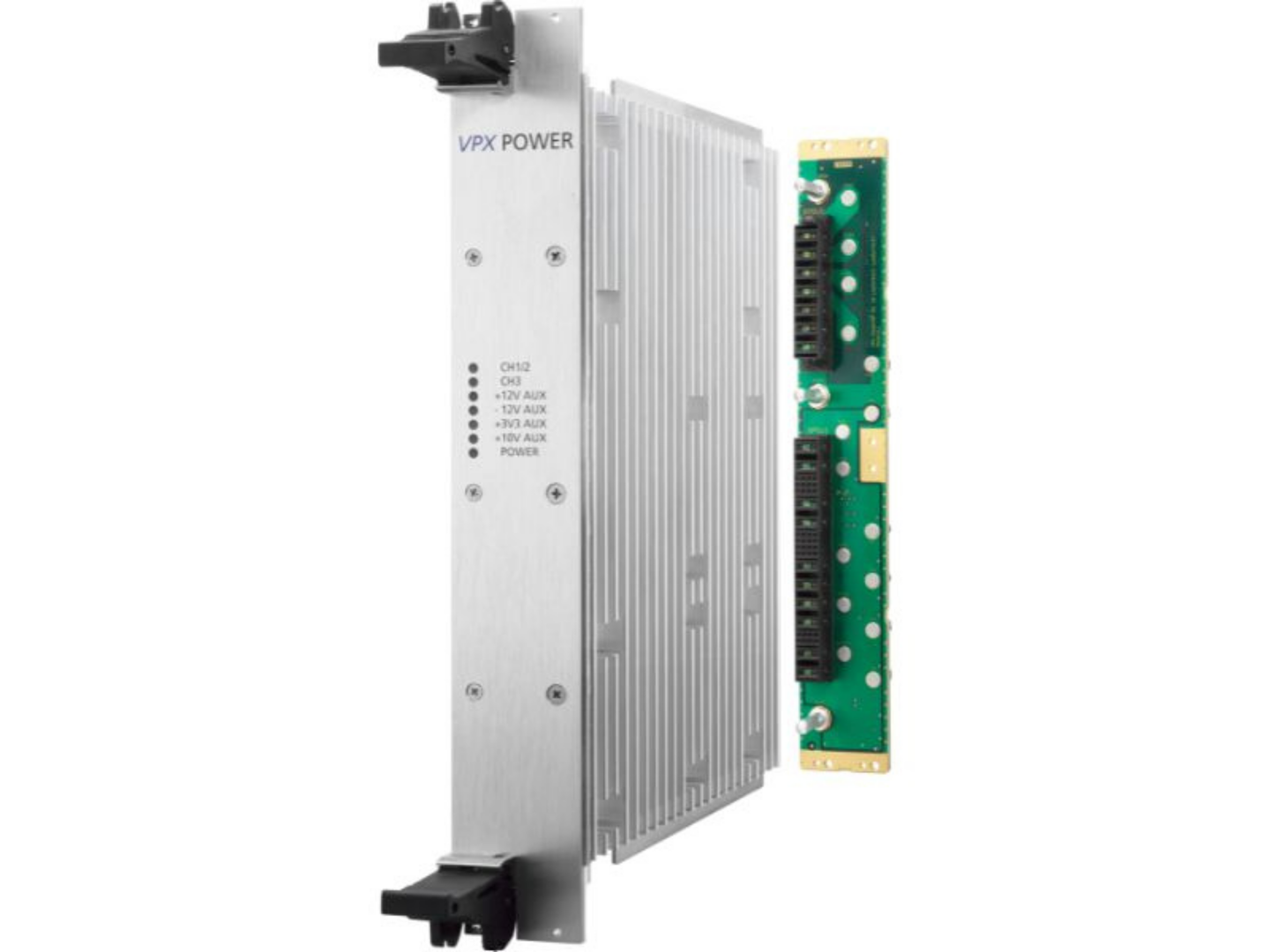

VPX 6U/AC Power Supply 1000W
Power Supply 1000 W
Specifications
- 1000W air cooled VPX power supply, VITA62 base line
- Input: 85-264 VAC, 5.2 – 7.3A / 37A (normal / peak inrush current)
- 6 DC Outputs: +12V [VS1]/35A, +12V [VS2]/35A, +5V [VS3]/30A, +3.3V_AUX/20A, +12V_AUX/2A, -12V_AUX/2A
- Efficiency up to 89%
- Forced air cooled, at least 800 LFM moving air
- Operating temperature -40°C … 85°C (50% derated)
Kontron Hartmann Wieners 6U VPX power supplies are designed for the most demanding environments – with a strong focus on durability, quality, and reliability. This AC/DC power module delivers up to 1000 W output power with an efficiency of up to 89%, and offers partial compliance with the VITA 62 specification.
Equipped with six high-performance DC outputs, forced air cooling, and a wide operating temperature range from -40 °C to +85 °C, it is ideally suited for industrial, defense, and research applications. The mechanical design follows the 6U VPX standard, featuring a front panel with extractor handle and 160 mm depth.
Features
| Compliance | Compliant to VITA 62 baseline specification Ruggedized per MIL‑STD‑810 with standard conformal coating |
| Power & Efficiency | Output power: 1000 W (air-cooled) Efficiency up to 89% Input voltage: 85–264 V AC, 47–63 Hz Inrush current: 5.2–7.3 A (normal), 37 A (peak) |
| Cooling & Form Factor | 6U / 10HP VPX Air-cooled with forced airflow ≥ 800 LFM Front panel with extraction handle |
| Protection Features | Active current sharing on +12 V outputs via internal OR-ing diode for N+1 redundancy Over-current, over-voltage, and over-temperature protection (latching) DC OK and Power OK signals per output |
| Operating Conditions | Operating temperature: –40 °C to +85 °C (with derating above 50 °C) Storage temperature: –45 °C to +85 °C |
| Mechanical & Electrical | VPX-standard depth approx. 160 mm Weight: approx. 2.0 kg Input–Output isolation: 1500 V AC |
| Control & Monitoring | PMBus interface for status and control |
