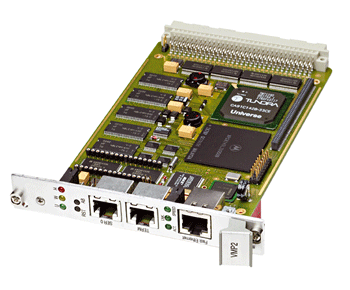

VMP2 This product is legacy
VME 3U PowerPC MPC8245 处理器板
Specifications
- Freescale MPC8245 PowerPC @ 330MHz
- 集成网络接口
- 板载64 MB (可达256MB )SDRAM (ECC) 板载 @ 133MHz
- 4/8 MB 固化 Flash
- 高达 144 MB FLASH DiskOnChip 或 0,5 MB 插槽NVRAM
- 极低的电源功耗: 5,8 W typ.
- 宽温支持 -40°C to +85°C (可选)
- 支持 VxWorks 及 Linux
使用增强的 MPC8245 PowerPC 技术，以取得强大的计算性能及较低的功耗
Features
| CPU | Freescale MPC8245 @ MHz |
| CPU MIPS | 465 |
| DRAM | up to 256 SDRAM |
| SRAM | - |
| Flash | 128 MByte (optional, DIL socket) |
| Flash Onboard | 8 MByte |
| NVRAM | up to 0.5 MByte |
| Serial Channels Frontpanel (Total) | 2 |
| Network Options | 2x 10/100/1000BaseT, 1x 100/100BaseT |
| Mezzanine | PMC carrier optional |
| Power Consumption | 5.8 (typ.) @ 330 MHz |
Downloads
技术参数
Datasheet
[ vmp2.pdf, 520.38 KB, Aug.31.2017 ]
参考手册
Manual
[ vmp2_manual.pdf, 690.04 KB, Sep.11.2017 ]
Manual Errata 2
[ vmp2_manual_errata_2.pdf, 20.52 KB, Sep.11.2017 ]
Manual Errata 1
[ vmp2_manual_errata_1.pdf, 168.89 KB, Sep.11.2017 ]
Manual Errata 3
[ 24855_02_vmp2_errata_3.pdf, 174.93 KB, Sep.11.2017 ]
NetBootLoader User Guide
[ 1022-8317_20_sk-man-netbootloader.pdf, 473.06 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
驱动程序
DiskOnChip
[ diskonchip_ix0300_all_os.zip, 2.71 MB, Jul.03.2018 ]
技术信息
ESD Protection Guidelines
[ 29789_02_sk-man-esd_protection.pdf, 134.59 KB, Nov.27.2013 ]
