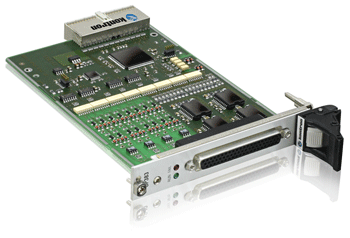

CP383 This product is legacy

16 通道数据输入16 通道数据输出板

Specifications

16 通道数据输入16 通道数据输出
输入电压最低: -3V..5V
输入电压最高值: 11V..30V
额定 24V
可编程去抖动, 输入事件检测、输入捕捉及比较功能。
每通道电压峰值 500 mA
高温、低电压、高电流保护

高可靠性数据输入/输出控制器

具备高可靠性，是需要数字输入输出的行业应用的理想选择。CP383甚至可在最严酷的工业环境中工作。
CP383支持 Windows NT/XP/2000, VxWorks 以及 Linux.

Features

Channels

16 digital in, 16 digital out

Input Voltage

Low Range: -3-5 V, High Range: 11-30 V

Input Current

5 mA

Output Current

max. 500 mA per channel

Isolation

2 kV

Downloads

技术参数

Datasheet
[ ds_cp383.pdf, 1.13 MB, Aug.31.2017 ]

Datasheet Linux BSP IOC01
[ dat_lin_bsp_ioc01.pdf, 754.48 KB, Aug.31.2017 ]

参考手册

Manual
[ man-cp383.pdf, 852.22 KB, Sep.11.2017 ]

Manual CP383 Errata 1
[ cp383_errata_1.pdf, 219.74 KB, Sep.11.2017 ]

Manual CP383 Errata 2
[ 27784_01_cp383_errata_2.pdf, 99.4 KB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Accessories

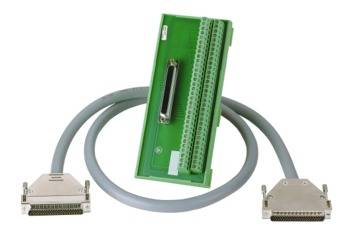

CP-ADAP-IO
CP-ADAP-IO

Termination box and cable for CPCI I/O boards
