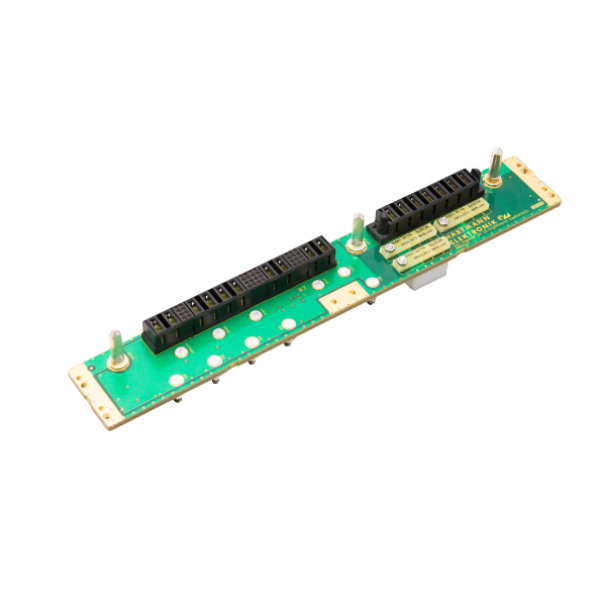

6U VPX Power Backplanes
The 6U VPX Power Backplanes from Kontron HARTMANN-WIENER provide rugged, high-reliability power distribution for 6U VPX / OpenVPX systems.
They are designed according to the VITA 62 standard, enabling both AC and DC power input, and delivering all required VPX voltage rails (VS1, VS2, VS3, AUX) to modules. These backplanes are hand-assembled for quality and durability.
In VPX systems, reliable power delivery is critical. Hartmann’s 6U VPX Power Backplanes fulfill this role by distributing all necessary voltage rails (VS1, VS2, VS3 and auxiliary rails) to each module per the VITA 62 standard. They support both AC and DC input power, making them flexible for various environments. With high current capacity and robust stud outputs, these backplanes ensure each slot receives consistent and clean power. The inclusion of sense and control lines through J0/J1 connectors supports advanced power management and health monitoring. Designed for rugged use, they offer wide temperature tolerance and optional coatings for harsh environments.
Features
| Features | Form Factor: 6U height Slots / Power Slots: Available in 1 or 2 power-slot versions (10HP pitch for 2-slot) Power Input Options: a) High Input Voltage (AC): 85 – 265 VAC, maximum 30 A (≈1700 W) b) Low Input Voltage (DC): 18 – 36 VDC, maximum 80 A (≈1600 W) Permissible Current Load per Slot: • +12 V VS1 / 40 A • +12 V VS2 / 40 A • +5 V VS3 / 40 A • +3.3 V_AUX / 35 A Power Output Feeds: • M4 studs for 12V, 5V, and ground • M3 or M4 studs for 3.3 V auxiliary Base Specification / Standard: VITA 62 (Power & Ground Backplane standard for VPX) Connectors for Control / Sense: • J0 TE Connectivity 6450863-5 • J1 TE Connectivity 1-6450869-0 Base Material: FR-4, UL 94 V-0 rated Card Thickness: 4.3 mm (.17"") Dimensions: • 1-slot variant: 161.85 mm × 38.92 mm • 2-slot variant: 161.85 mm × 90.07 mm Operating Temperature: –40 °C to +85 °C Relate Humidity: up to 90 %, non-condensing Optional Coating: Conformal coating optional for harsh environments Example Part Numbers: • B1961AM220 — 6U, 1-slot, high input voltage • B1961D4221 — 6U, 1-slot, low input voltage • B1962AM220 — 6U, 2-slot, high input voltage with CML interface" |
Downloads
技术参数
6U VPX Power Backplanes Datasheet
[ 6u-vpx-power-backplanes.pdf, 10 MB, Dec.18.2025 ]
参考手册
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
