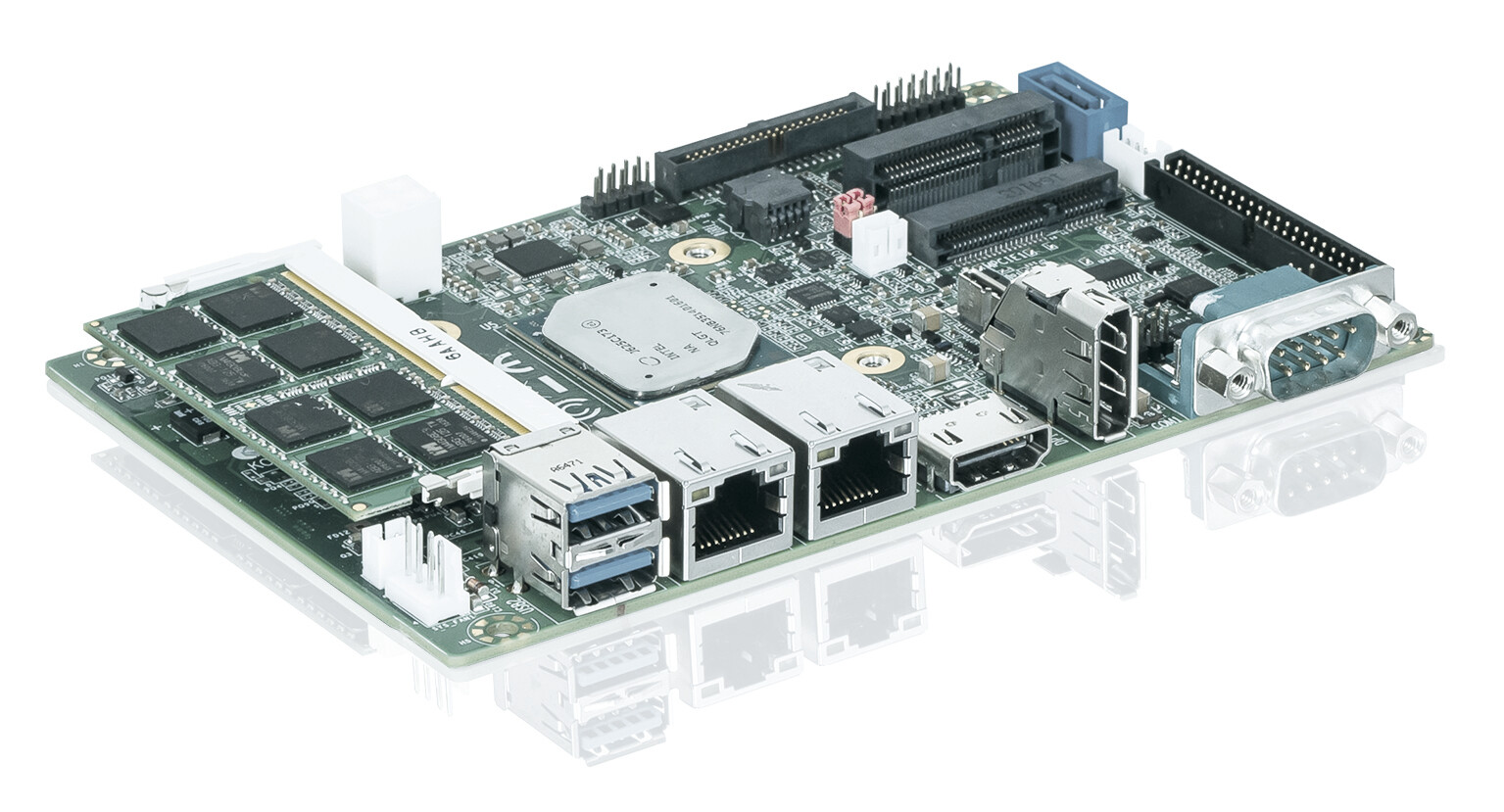

3.5-SBC-APL N3350

3.5-SBC-APL Celeron N3350 2C 2.3GHz, 6W, w.cooler

Specifications

High performance CPU, graphics, and media performance supporting up to 3 independent displays
TPM2.0 and built in Hardware Security Device
eMMC card, mPCIe Full and Half size.
SO-DIMM Sockets DDR3L-1867 Memory (up to 8GB)
HDMI 1.4, LVDS 18/24Bits dual channel and Display Port 1.2

Download Datasheet

With the launch of the new embedded motherboard 3.5”-APL form factor, Kontron is extending its new long-term available 3.5 inch portfolio to include a motherboard with the latest generation Intel® ATOM™ processor (formerly codenamed ‘Apollo Lake’). This ‘3.5” powerhouse’ has been specifically designed for performance-intensive applications and supports the extended temperature range of 0°C to +60°C. With its outstanding graphics performance, the board operates up to three independent displays. Additionally, the Kontron 3.5”-APL boasts an excellent performance-per-watt ratio and optimized Thermal Design Power (TDP). The ATX-compatible motherboard offers an extensive ecosystem, so developers can design even the most demanding systems based on standard components.

The 3.5”-APL is part of the Security Solution Product Line. The motherboard is prepared for Application Protection, License Creation, Delivery, Management and Tracking, Implementation of license models as well as the assignment of privileges and access levels.

The Kontron 3.5”-APL excels with a wide selection of interfaces. In addition, customer-specific functions can be integrated via standard extension slots such as Mini PCIe (Full and Half size) as well as Kontron’s own embedded Feature Connector. Additional features such as an eMMC Card and an mPCIe slot support Industrial Automation applicatios to further simplify and accelerate system designs. With its SIM card socket, this motherboard is also suitable for deployment in intelligent, distributed ‘Internet of Things’ for time-to-market applications.

Long-term availability of these boards ensures that OEMs can obtain the same boards for additional or replacement systems, thus, being able to efficiently manage large field deployments.

Downloads

技术参数

3.5"-SBC-APL
[ 3-5-sbc-apl_20171113_datasheet.pdf, 1.38 MB, Nov.24.2017 ]

参考手册

3.5"-SBC-APL Manual
Preliminary Revision 0.1
[ 3-5-sbc-apl-user-guide_rev-1-3_2020-07-14.pdf, 3.88 MB, May.23.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Variants

3.5-SBC-APL E2 E3930 43011-0000-18-2		3.5-SBC-APL Atom E3930 2C 1.8GHz, 6,5W, Ind. Temp, ECC, w.cooler
3.5-SBC-APL E2 E3940 43011-0000-18-4		3.5-SBC-APL Atom E3940 4C 1.8GHz, 9,5W, Ind. Temp, ECC, w.cooler
3.5-SBC-APL E2 E3950 43011-0000-20-4		3.5-SBC-APL Atom E3950 4C 2.0GHz, 13W, Ind. Temp, ECC, w.cooler
3.5-SBC-APL N3350 43011-0000-23-2		3.5-SBC-APL Celeron N3350 2C 2.3GHz, 6W, w.cooler

Accessories

DDR3L-1600 SODIMM 1GB 97015-1024-16-1		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800
DDR3L-1600 SODIMM 2GB 97015-2048-16-1		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800
DDR3L-1600 SODIMM 4GB 97015-4096-16-1		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800
DDR3L-1600 SODIMM 8GB 97015-8192-16-1		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800
DDR3L-1600 SODIMM 1GB E2 97015-1024-16-3		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40°C to +85°C
DDR3L-1600 SODIMM 2GB E2 97015-2048-16-3		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40°C to +85°C
DDR3L-1600 SODIMM 4GB E2 97015-4096-16-3		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40°C to +85°C
DDR3L-1600 SODIMM 8GB E2 97015-8192-16-3		DDR3 SDRAM, 204pin, Speed = 800MHz / DDR3L-1600 / 1.35V / PC3-12800, industrial temperature -40°C to +85°C
