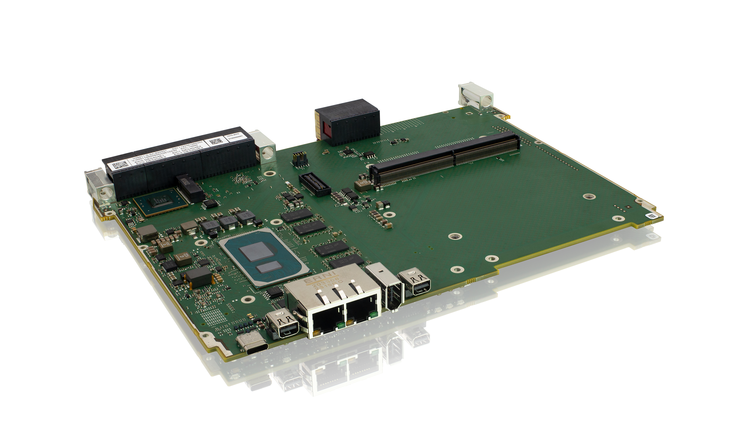

VX6011-S New
SOSA-aligned 11th Generation Intel Core Processor 6U VPX SBC
Specifications
- 11th Gen Intel® Core™ processor for AI (Artificial Intelligence), CVGIP (Computer Vision, Graphics, and Image Processing), DSP (Digital Signal Processing) workloads
- 12-28 W Quad Core™ processor, Enhanced AI, AVX-512, 32 GByte w ECC
- 8k Multi-Head display from Gen12 / 96 EUs high End GPU
- Versatile I/O: USB-C, M.2 sockets, XMC option
- 1G/10G Ethernet Multi-port with 2.5G, 25G and TSN capability
- 15-year availability, PBIT, CBIT, SEC-Line support
Developed in alignment with the SOSA™ Technical Standard.
The 10nm gen Intel® System On Chip (SOC) SKUs delivers an unmatched feature set in a low power envelope enabling a solid foundation for almost all rugged computing use cases.
The VX6011-S has selected CPU SKU guaranteed for 10 years operations with 100 per cent active usage profiles. Quad core units with specialized instructions for Artificial Intelligence (VNNI) and Doubled Signal Processing performance (AVX512) will be available.
The integrated Intel Xe graphics engine also adds 96 EU execution units (EU) computing power accessible to software written for GPGPUs (via OpenCL) and offers all the features expected from a modern PC platform by demanding applications.
The VX6011-S pin assignment is compatible with VITA65 OpenVPX Profiles SLT6-PAY-
4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0 and can be considered for system architectures developed in alignment with the SOSA™ Technical Standard.
Features
| Processor | Intel® Core™ i7-1185GRE, 4-core/8 threads, configurable TDP from 12W to 28W |
| Cache | 12Mbyte |
| DRAM DDR4 | 16-32 Gbyte dual channel DDR4 SDRAM with IECC |
| Expansion Slots | XMC or MXM |
| Backplanes | SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0 MOD6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-12.6.3-2 |
| I/O Features | Control planes: Dual 10GBASE-KR + dual 1000BASE-T ports x2 PCIe Gen3 / SATAIII for storage DP++ 1.2 Graphic port Dual USB2.0 ports USB3.0 port Dual serial lines 5 GPIOs XMCIOs Dual SMB/IPMB, JTAG, Power Supplies |
| Cooling | VITA 47 Standard air-cooled (0/+55°C) |
| Storage | 320GB NVMe 1.4 SSD boot storage (M.2 slot) |
| Frontpanel | 2x 10/100/1000Base-T(X) on RJ-45 connectors 1x RS-232 UART interfaces on iX connector 1x USB-C port 1x DP++ port on mDP connector One Reset button Bicolor LEDS |
Downloads
技术参数
VX6011-S datasheet
[ vx6011-s_datasheet_1.pdf, 992.52 KB, Apr.04.2024 ]
参考手册
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
