VX3406 New

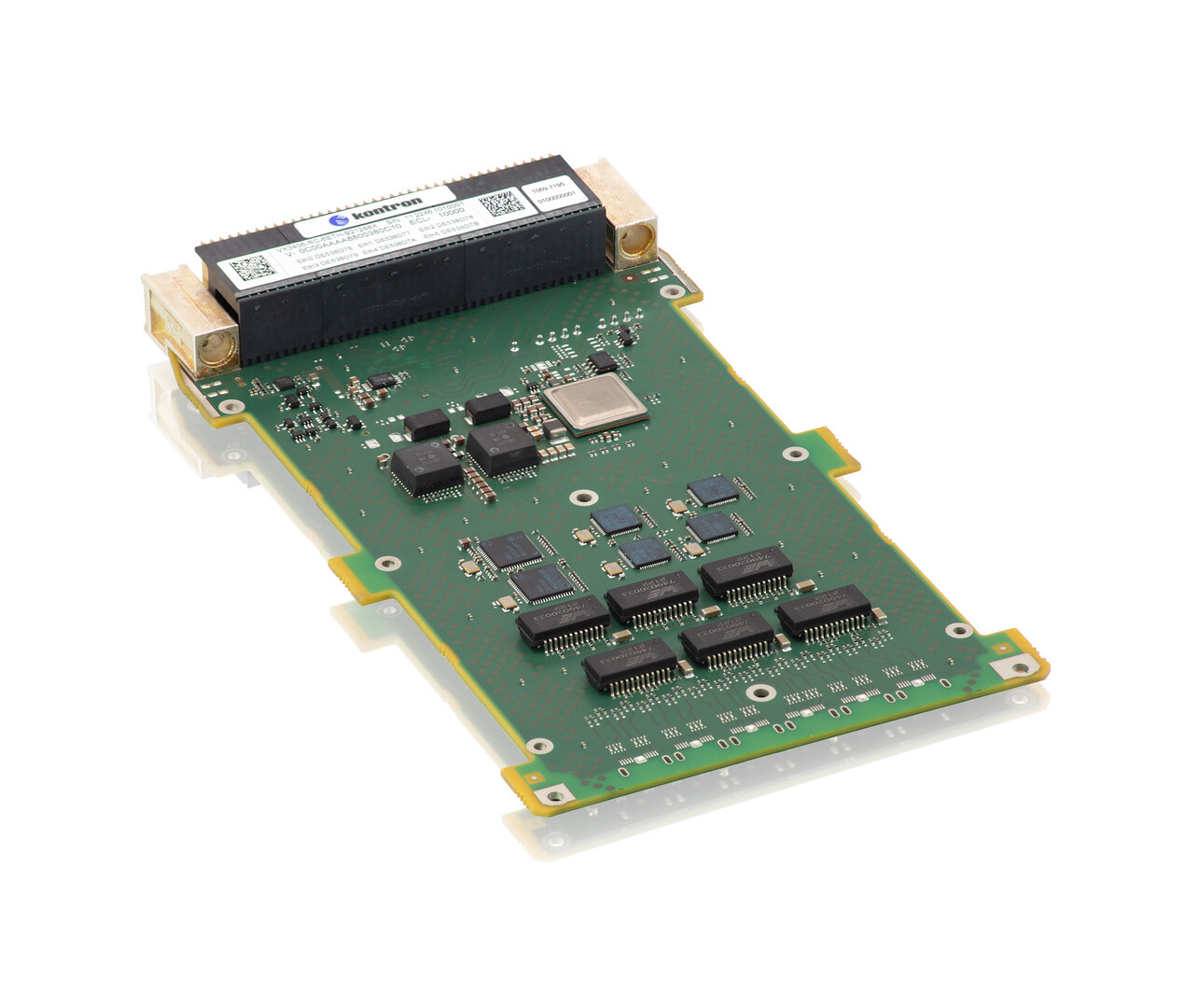

Rugged 3U VPX Ethernet Card with 6 Independent 1G/2.5G Ports
Specifications
- Six independent 1G/2.5G Ethernet ports, ideal for high-bandwidth and real-time communication
- TSN and IEEE 1588 PTP support for precise time synchronization
- Integrated 8-port PCIe Gen3 switch for optimized data flow and scalability
- Conduction-cooled rugged design (-40°C to +70°C) for deployment in extreme conditions
- Optional Rear Transition Module (RTM) to simplify cabling and testing in VPX systems
- Long lifecycle availability (up to 10 years) for secure system sustainability
The Kontron VX3406 is a high-performance 3U VPX Ethernet expansion card engineered for real-time, high-reliability, and data-intensive applications in harsh environments. Equipped with six independent 1G/2.5G Ethernet ports, it provides exceptional flexibility and bandwidth for mission-critical systems across defense, aerospace, transportation, and industrial sectors.
Featuring support for Time-Sensitive Networking (TSN) and IEEE 1588 Precision Time Protocol (PTP), the VX3406 ensures accurate and deterministic communication between connected devices. It integrates a powerful 8-lane PCIe Gen3 switch, supports up to four Intel i225 and two Intel i210 Ethernet controllers, and delivers consistent low-latency performance.
The VX3406 is available in a rugged conduction-cooled version for extended temperature operations and optionally in an air-cooled variant. Industrial-grade Harting ix connectors, compliant with IEC 61076 standards, offer enhanced EMC protection and mechanical durability. For streamlined integration and simplified maintenance, an optional Rear Transition Module (RTM) brings all six Ethernet ports to the rear panel.
Downloads
技术参数
VX3406 datasheet
[ vx3406_datasheet.pdf, 350.5 KB, May.19.2025 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
参考手册
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
