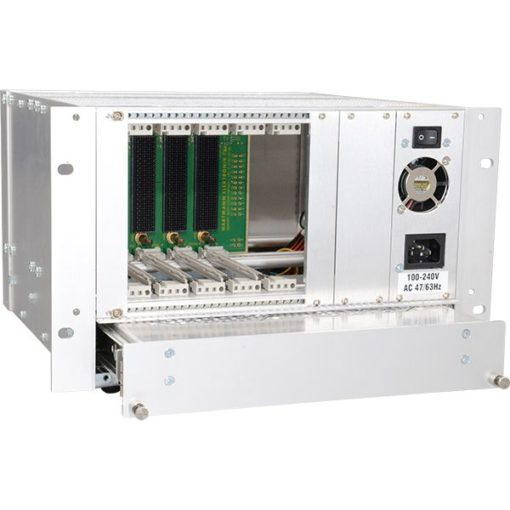

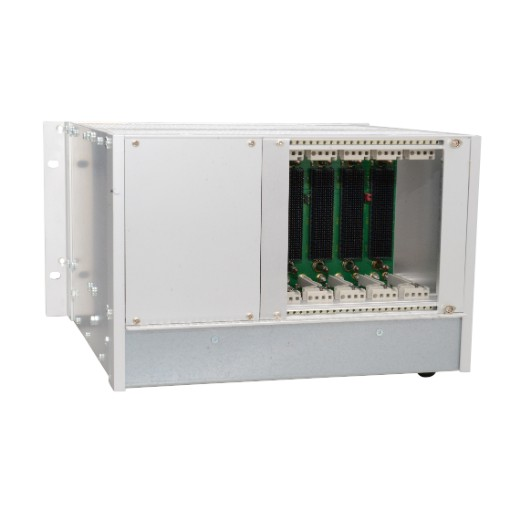

VPX Chassis 4U/50HP 5 Slots
Rugged 4U/50 HP VPX chassis offering 5-slot full mesh configuration, 300 W ATX power supply, and enhanced EMC for high-performance embedded systems
Specifications
- Mechanics: 4U × 50 HP, IEEE 1101.1/1101.10 compliant
- Slots: 5 × 3U VPX, full mesh X4 on P1 (8× differential pairs to each slot) for PCIe Gen3 with rear I/O
- Power Supply: 300 W ATX, wide-range 90–264 VAC, 47-63 Hz input
- Cooling: 1U removable fan tray with 2 × 92 mm, 12 V DC fans, airflow bottom to top

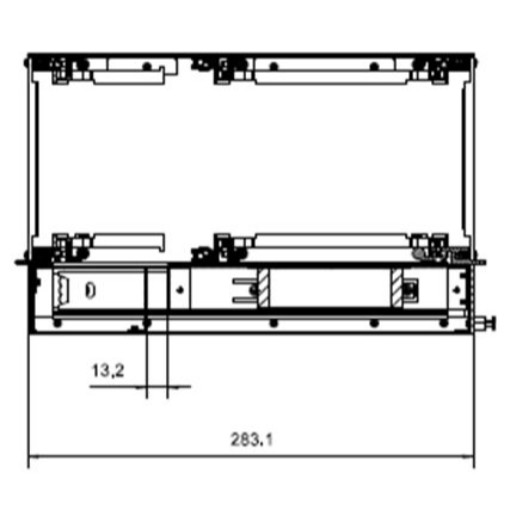

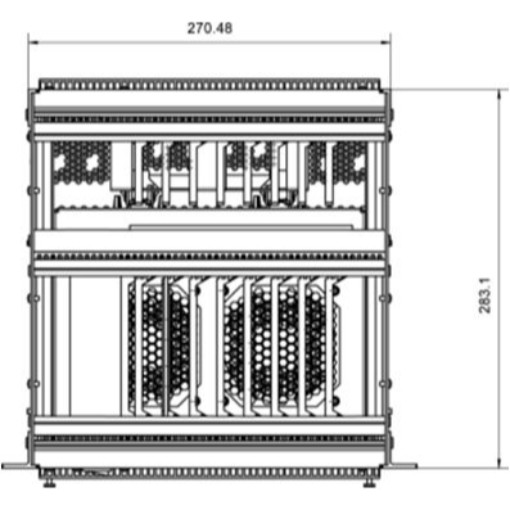

- Chassis Depth: 283.1 mm
- Compliance: IEC 60297-3-101/-102/-103, MIL-STD-810F (shock & vibration), EN 50155 railway standard
The Kontron Hartmann Wiener VPX Chassis 4U/50HP with 5 slots provides a reliable and efficient packaging solution for high-performance 3U VPX systems. Designed for rack-mount installation, the enclosure integrates a 300 W ATX power supply, removable fan tray, and enhanced EMC features, ensuring dependable operation for demanding applications.
This 5-slot 4U VPX chassis from Kontron Hartmann Wiener is engineered for performance, modularity, and durability. The system supports high-speed PCIe Gen3 communication via a full mesh VPX backplane (X4 on P1) and offers convenient front-side power access with switch and connector harness. Its removable fan tray provides efficient bottom-to-top airflow, while enhanced EMC shielding ensures compliance with industrial and military standards. Designed for rugged environments, the chassis is qualified against MIL-STD-810F vibration and shock as well as EN 50155 railway standards, making it suitable for versatile applications in defence, transportation, and industrial markets.
Features
| Compliance | IEEE 1101.1 and 1101.10/11 IEC 60297-3-101, -102, -103 MIL-STD-810F (shock & vibration) EN 50155 railway standard |
| Power & Efficiency | 300 W ATX power supply with wide-range input (90–264 VAC, 47–63 Hz) Output voltages: 12 V/24 A, 5 V/18 A, 3.3 V/17 A, -12 V/0.3 A |
| Protection | Enhanced EMC shielding Wide-range AC input protection |
| Control & Monitoring | Front-side switch and power connector Fully wired and assembled for quick deployment |
| Design & Components | 5-slot 3U VPX full mesh X4 backplane with rear I/O PCIe Gen3 compatible differential pairs Fan tray with 2 × 92 mm 12 V DC fans Vertical board mounting |
| Mechanical | 4U × 50 HP × 283.1 mm depth 1U removable fan tray Rack-mountable enclosure Bottom-to-top airflow |
Downloads
技术参数
VPX Chassis 4U50HP 5 Slots Datasheet
[ lmh0000840-4u-50hp-vpx-5-sl-300w.pdf, 616.47 KB, Oct.28.2025 ]
参考手册
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
