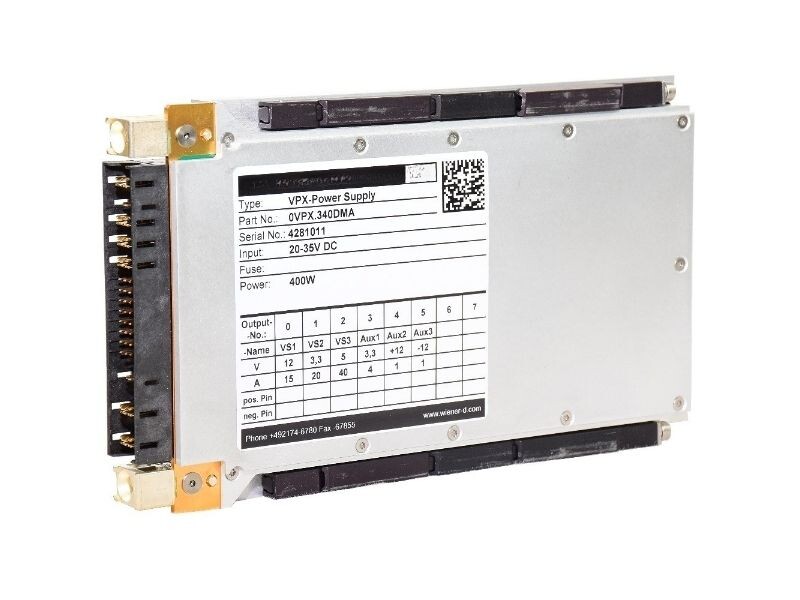

VPX 3U/DC Power Supply 400W – VPX340
High Efficiency / Medium Power – VITA 62 VPX Power Supply
Specifications
- COTS VPX power supply with conduction cooling
- VITA 62.0 compliant, fits standard VITA 46.0 envelope (3U x 4HP)
- High-efficiency single-stage converter with wide input range
- MIL-STD 461, 704, 1275, and 810 tested for rugged applications
- Integrated microcontroller with I²C and USB interface for monitoring
- Keying, alignment, and connectors per VITA 62 specification
WIENER VPX power supplies are designed as conduction-cooled, commercial off-the-shelf (COTS) single-stage converters according to the ANSI/VITA 62.0 specification. Built for seamless integration into standard VPX chassis, they conform to the mechanical envelope defined by VITA 46.0. Advanced switching power technology ensures excellent efficiency and a broad input voltage range. The VPX340 and VPX315 series are fully tested to comply with MIL-STD standards for performance in demanding environments. Intelligent onboard monitoring and control is available via I²C and USB interfaces.
Features
| Compliance | Compliant to VITA 62 specification MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliance tested (as per VITA 62, par. 3.2.1) MIL-STD-810 ruggedization, tested, with standard conformal coating (other on request) |
| Power & Efficiency | High efficiency up to 90% (87% at full load of 400W) Wide input voltage range: 15 V … 40 V DC Reverse polarity protection |
| Protection Features | Voltage sense controlled Over Voltage, Under Voltage, Over Current, Over Temperature protection |
| Management & Control | Microprocessor controlled I²C bus interface for monitoring (status, input and 6 output voltages/currents, temperatures) Micro-USB connector for communication and firmware updates |
| Design & Components | No electrolytic capacitors |
| Mechanical Dimensions | 100.0 mm x 168.5 mm x 19.56 mm (3.94 in x 6.63 in x 0.77 in) |
| Weight | 0.60 kg (1.3 lbs) |
Downloads
技术参数
VPX340 Datasheet
[ vpx340_kontron_datasheet.pdf, 569.37 KB, Jul.17.2025 ]
参考手册
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
Variants
|

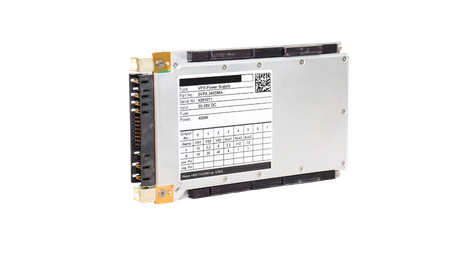

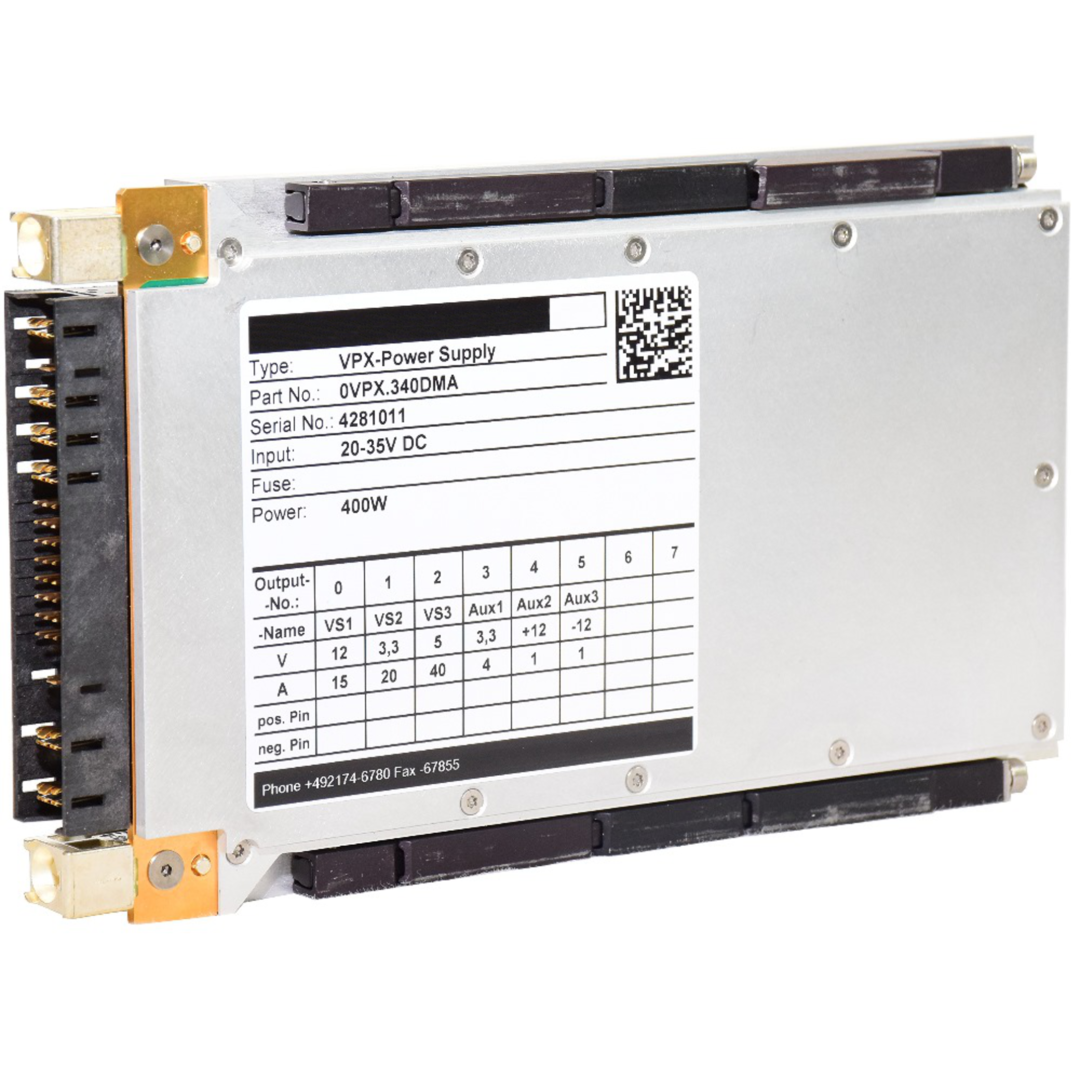

VPX340DMA |
|
400W VPX VITA 62 power supply, MIL-STD-461, -704,-1275 compliant, with standard acrylic conformal coating | |
|
VPX340DMA_P |
|
400W VPX VITA 62 power supply, MIL-STD-461, -704,-1275 compliant, with parylene conformal coating |
