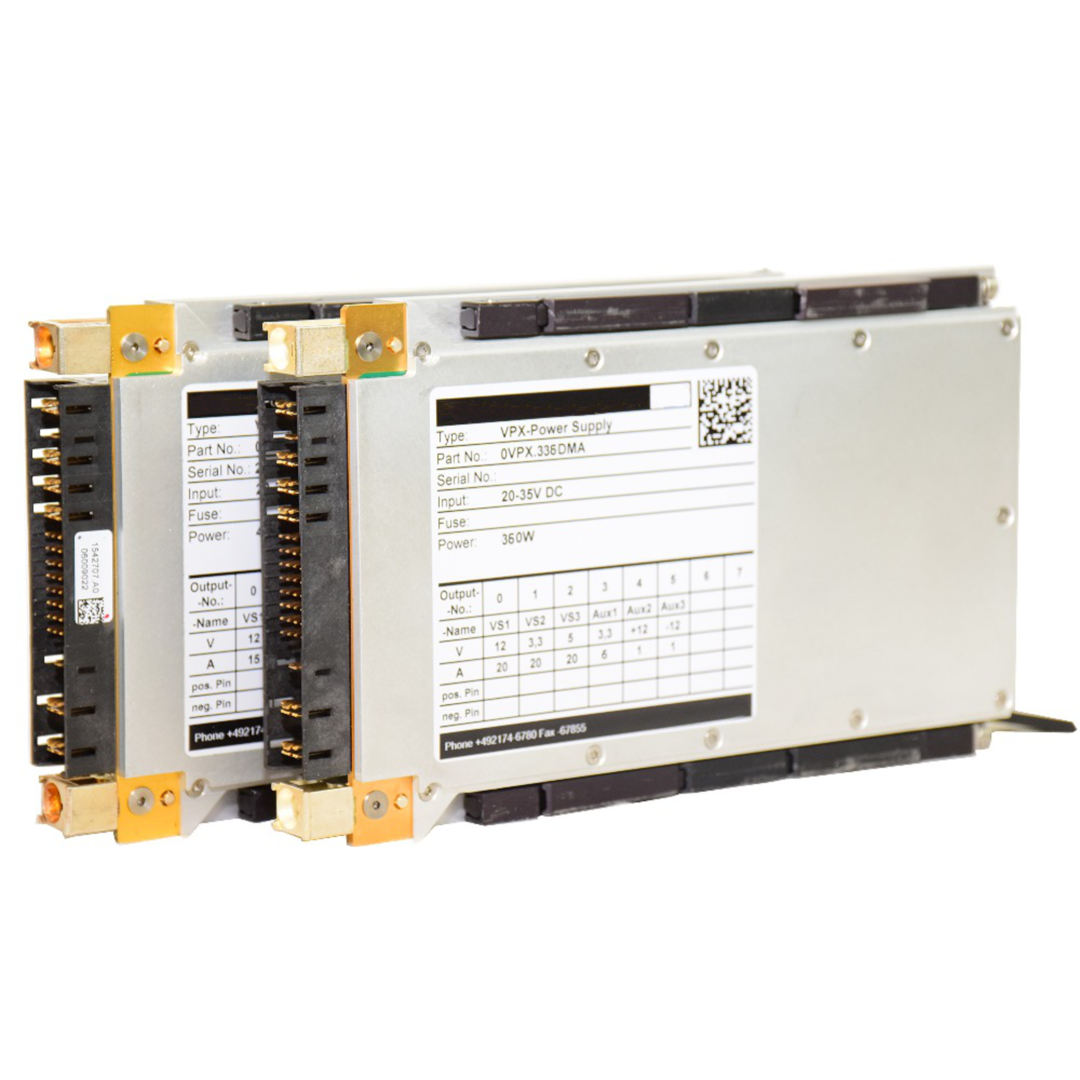

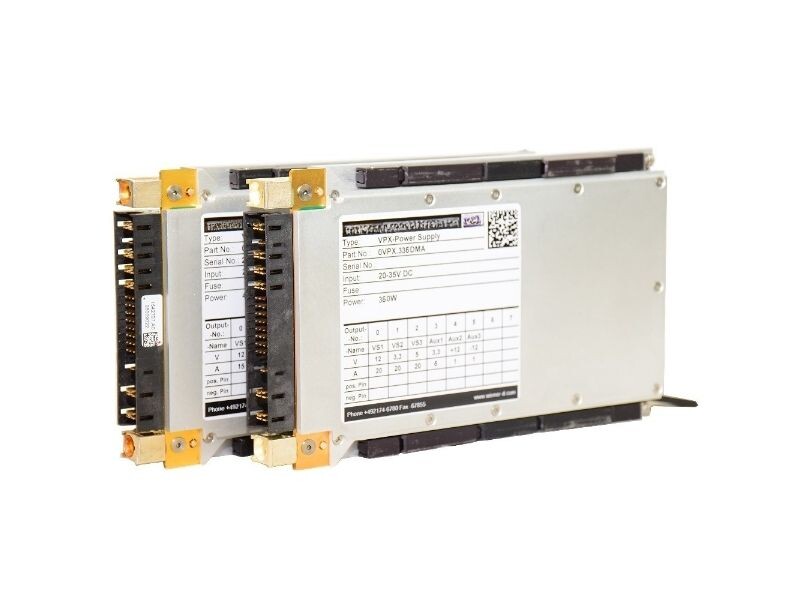

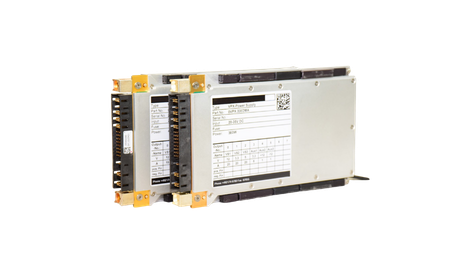

VPX 3U/DC Power Supply 360W - VPX336

Medium Power / Flexible Configuration – VITA 62 VPX Power Supply

Specifications

Conduction-cooled COTS VPX power supply, VITA 62.0 compliant
Fits standard VPX chassis per VITA 46.0 (3U x 4HP)
High-efficiency single-stage converter with wide input voltage range
Flexible power distribution across VS1, VS2, and VS3 due to oversized converters
MIL-STD 461, 704, 1275 tested; I²C and USB monitoring via onboard microcontroller

Download Datasheet

WIENER VPX336 power supplies are conduction-cooled, commercial off-the-shelf (COTS) single-stage converters built to the ANSI/VITA 62.0 standard. Designed to fit standard VPX chassis as specified by VITA 46.0, they deliver high overall efficiency and support a wide input voltage range through advanced switching power technology. Each main converter is deliberately oversized to allow multiple configuration options – either prioritizing 12V output or distributing power more evenly across all three main output rails.
The VPX336 series is compliant with key military standards (MIL-STD-461, 704, 1275) and features an embedded microprocessor for real-time monitoring and control via I²C or USB. Mechanically, the unit measures 3U x 4HP and includes all keying, connector, and alignment elements in line with VITA 62.

Features

Compliance

Compliant to VITA 62 specification
MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliance (to be tested as per VITA 62, par. 3.2.1)
Ruggedized to MIL-STD-810, with standard conformal coating (other on request)

Power & Efficiency

High efficiency up to 90%, 87% at full load of 360W
Wide input voltage range: 15 V … 40 V DC (nominal 28V)
Optional 48V DC input (33.5–49V)
Reverse polarity protection

Protection Features

Voltage sense controlled
Over Voltage, Under Voltage, Over Current, Over Temperature protection

Management & Control

Microprocessor controlled
I²C bus communication for monitoring (status, input and 6 output voltages and currents, temperatures)
Micro-USB connector for communication and firmware updates

Design & Components

No liquid / wet / aluminum electrolytic capacitors

Mechanical Dimensions

100.0 mm x 168.5 mm x 19.56 mm (3.94 inch x 6.63 inch x 0.77 inch)

Weight

0.60 kg (1.3 lbs)

Downloads

技术参数

VPX336 Datasheet
[ vpx336_kontron_datasheet.pdf, 482.9 KB, Jul.17.2025 ]

参考手册

General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]

Services

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]

Variants

VPX336DMA		360W 3U VITA 62 VPX power supply Standard Version, MIL-STD-461, -704, -1275 compliant, with standard acrylic conformal coating [Input] 28V DC VS1 [+12V] 15A VS2 [+3.3V] 20A VS3 [+5V] 30A Vaux1 [+12V] 1A Vaux2 [-12V] 1A Vaux3 [+3.3V] 6A
VPX336DMB		360W 3U VITA 62 VPX power supply – Max 12V Version, MIL-STD-461, -704, -1275 compliant, with acrylic conformal coating [Input] 28V DC VS1 [+12V] 20A VS2 [+3.3V] 20A VS3 [+5V] 20A Vaux1 [+12V] 1A Vaux2 [-12V] 1A Vaux3 [+3.3V] 6A
VPX336DMD		360W VITA 62 VPX power supply – Max 5V Version, MIL-STD-461, -704, -1275 compliant, with acrylic conformal coating [Input] 28V DC VS1 [+12V] 10A VS2 [+3.3V] 10A VS3 [+5V] 40A Vaux1 [+12V] 1A Vaux2 [-12V] 1A Vaux3 [+3.3V] 6A
VPX336DMS		306W VPX power supply – SOSA aligned Version, MIL-STD-461, -704, -1275 compliant, with acrylic conformal coating [Input] 28V DC VS1 [+12V] 20A VS2 [+3.3V] 20A VS3 [+5V] – Vaux1 [+12V] – Vaux2 [-12V] – Vaux3 [+3.3V] –
VPX336EMA		360W 3U VITA 62 VPX power supply 48V Version, MIL-STD-461, -704, -1275 compliant, with standard acrylic conformal coating [Input] 48V DC VS1 [+12V] 15A VS2 [+3.3V] 20A VS3 [+5V] 30A Vaux1 [+12V] 1A Vaux2 [-12V] 1A Vaux3 [+3.3V] 6A
