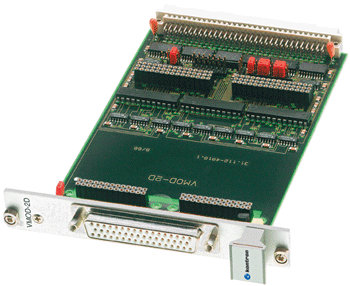

VMOD-2(D) This product is legacy
VMOD-2(D) , VME总线 ModPack 载板
Specifications
- 灵活的 ModPack I/O 设置
- 支持模拟、数字、串口、计数ModPack
- 2个 ModPack 接口
- 8/16 位数据总线
- 每个ModPack上独立的IRQ
- 板载RESET功能
- 50-针 D-Sub 或 50-针 ribbon-cable 连接器
- 宽温支持 -40 C 到 +85 C
3U 提供2个 ModPack 接口，VMOD-2(D) 可满足大多数工业应用需求
Downloads
技术参数
Datasheet
[ vmod-2d_datasheet.pdf, 202.42 KB, Aug.31.2017 ]
参考手册
Manual
[ vmod-2d_manual.pdf, 759.61 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
技术信息
ESD Protection Guidelines
[ 29789_02_sk-man-esd_protection.pdf, 134.59 KB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|

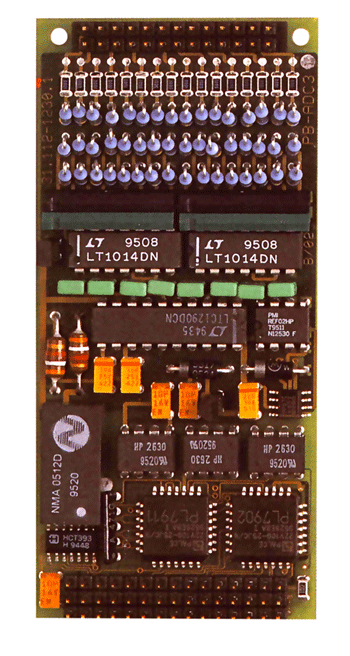

PB-ADC3
PB-ADC3 |
|
8 Diff. Ch., 隔光, 12-位 A/D ModPack | more |
|

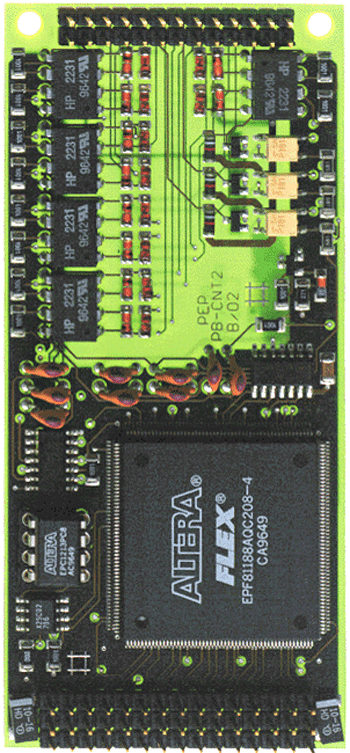

PB-CNT2
PB-CNT2 |
|
3 个隔光通道, 24位计数 ModPack | more |
|
PB-DAC3
PB-DAC3 |
|
4 通道隔光 12-位 D/A ModPack | more |
|
PB-DIN3
PB-DIN3 |
|
20 Channel Opto-isolated Digital Input ModPack | more |
|
PB-DIO3
PB-DIO3 |
|
20 Opto-isol. Channel, Input and Output ModPack | more |
|
PB-DOUT2
PB-DOUT2 |
|
16 通道隔光数字输出 ModPack | more |
|
PB-DOUT8
PB-DOUT8 |
|
8 Channel Opto-isolated Digital Output ModPack | more |
|
PB-SIO4A
PB-SIO4A |
|
四个异步串口 RS-422/485 ModPack | more |
|
PB-TIM2
PB-TIM2 |
|
3 Opto-isolated Channel, 16+8-bit Timer ModPack | more |
