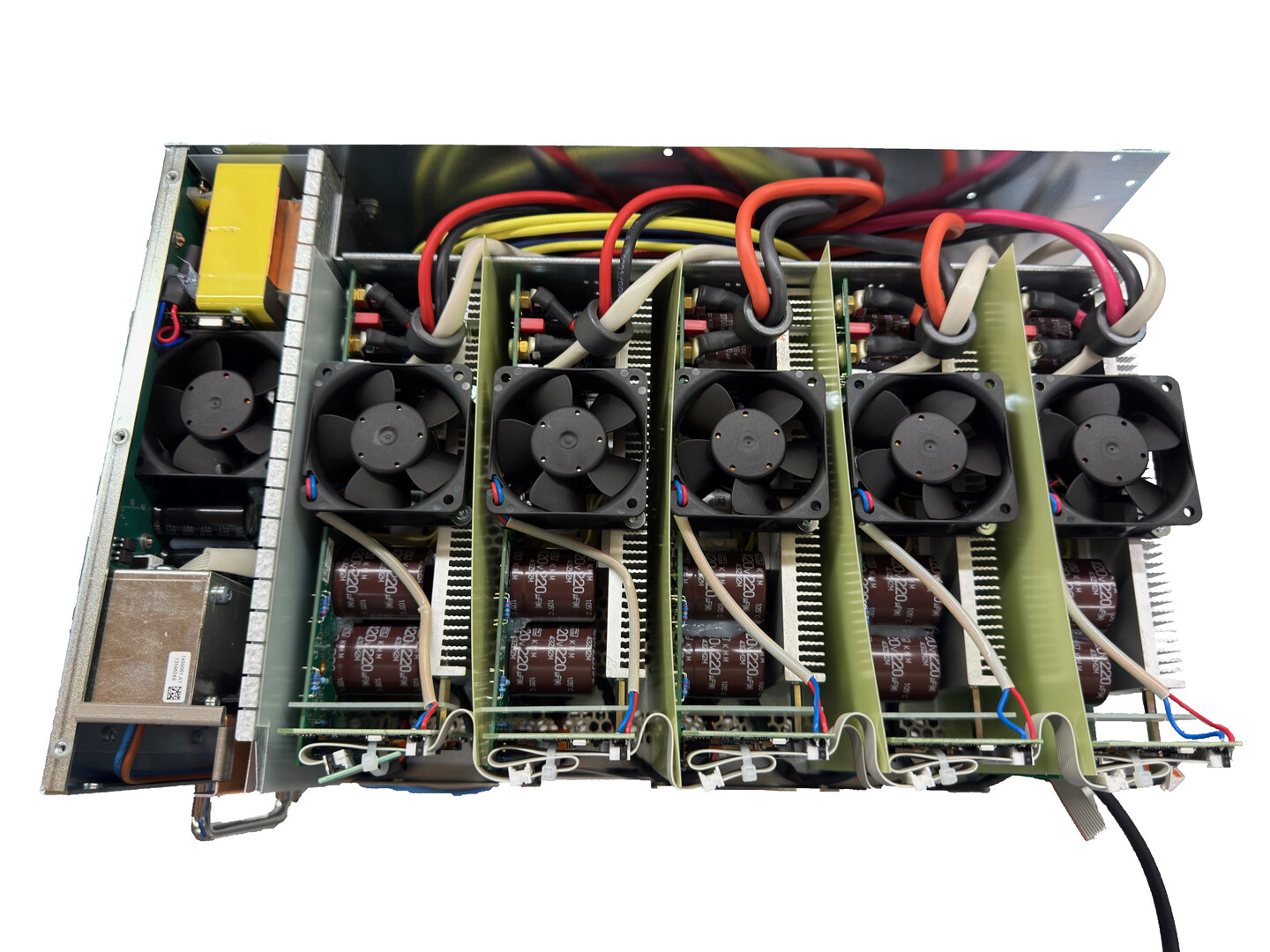

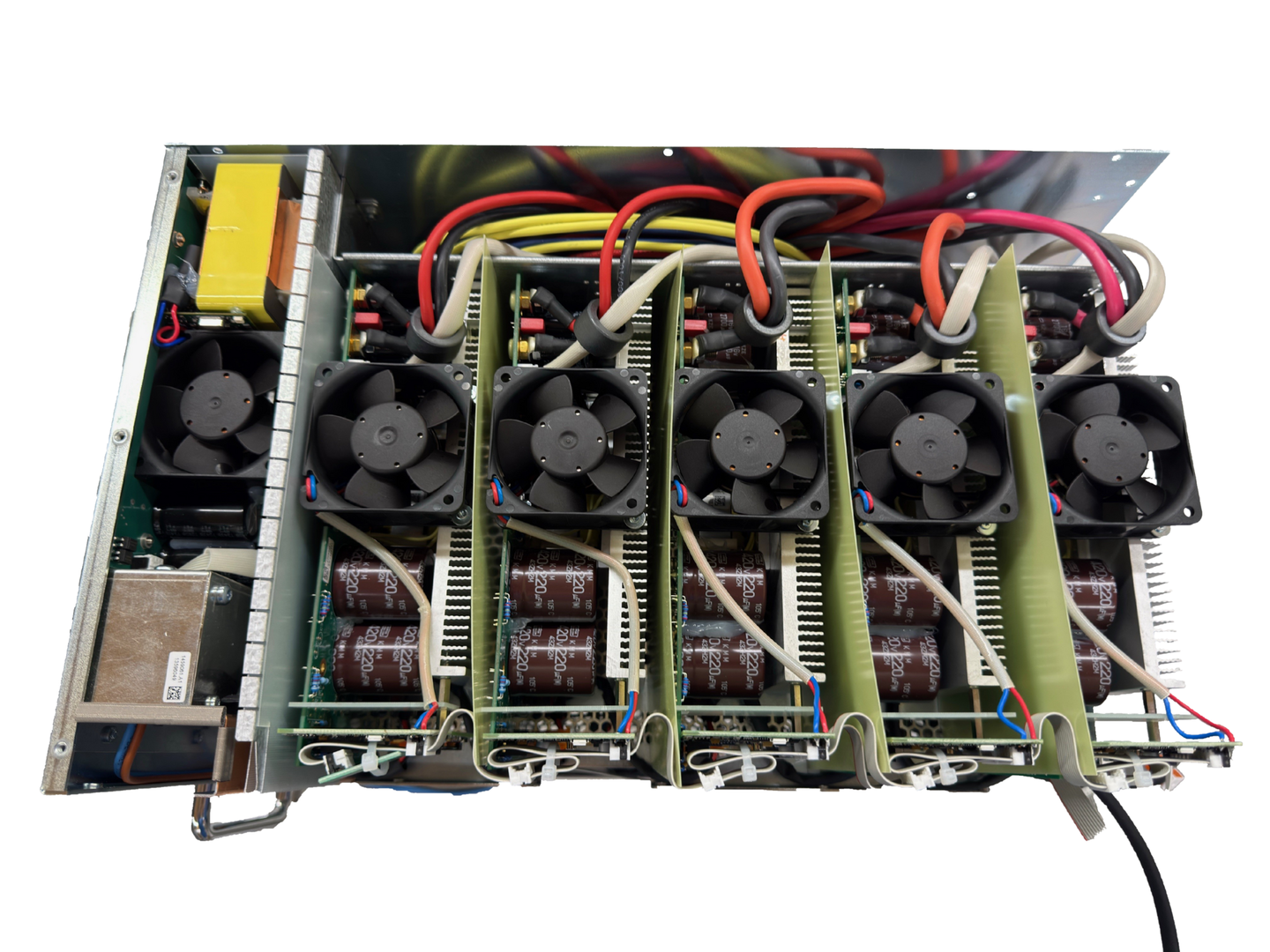

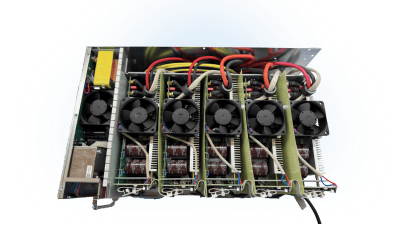

VME Power Supply DC 6U 6KW
Specifications
- Up to 6 kW DC output, with 10 module slots
- Input: dual AC (92–265 VAC), suffix K with fixed 32 A cable
- Ripple/noise: same low levels as 3U version (<15 mVpp, <3 mVpp optional)
- Efficiency: 75–85%
- Size: 430 mm × 267 mm × 250 mm, weight ~20–30 kg
- Floating, individually sensed, independently regulated outputs; PPM-enabled
High-power 6U modular PSU delivering up to 6 kW via ten programmable DC-DC modules. Maintains low ripple, advanced protection, CAN/RS-232 control, and robust EMI shielding—ideal for demanding VME environments.
Features
| Compliance | CE EN 60950, ISO 380, UL 1950, EN 55022 Class B EMC & immunity per EN standards |
| Power & Efficiency | Up to 6 kW via 10 DC‑DC module slots Input dual mains (suffix K) with PFC, soft-start Efficiency: 75–85% Ultra-low ripple/noise (<3–15 mVpp) 50 ms monotonic rise, floating outputs, parallel modules supported |
| Protection | Crowbar OVP at 125% Trip-off <5 ms on any fault condition Programmable current/voltage limits Automatic discharge on faults |
| Control & Monitoring | CAN‑Bus & RS‑232 interfaces PPM auto-configuration prevents mismatch Bin and fan-tray monitoring & diagnostics Microprocessor-led self-calibration and alarms |
| Design & Components | EMI-shielded “Cavity-VHF” switching Floating outputs, no shared returns Maintenance-free design, no electrolytics MTBF: electronics >100 000 h; blowers >65 000 h @40 °C |
| Mechanical | 6U rack-mount, 250 mm depth 10 module slots Weight: ~20–30 kg Temp range: 0–50 °C (operating), –30 to +85 °C (storage) Dual fan tray, integrated AC filter and soft start |
Downloads
技术参数
VME PS Kontron Datasheet
[ vme_ps_kontron_datasheet.pdf, 696.59 KB, Aug.04.2025 ]
参考手册
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
