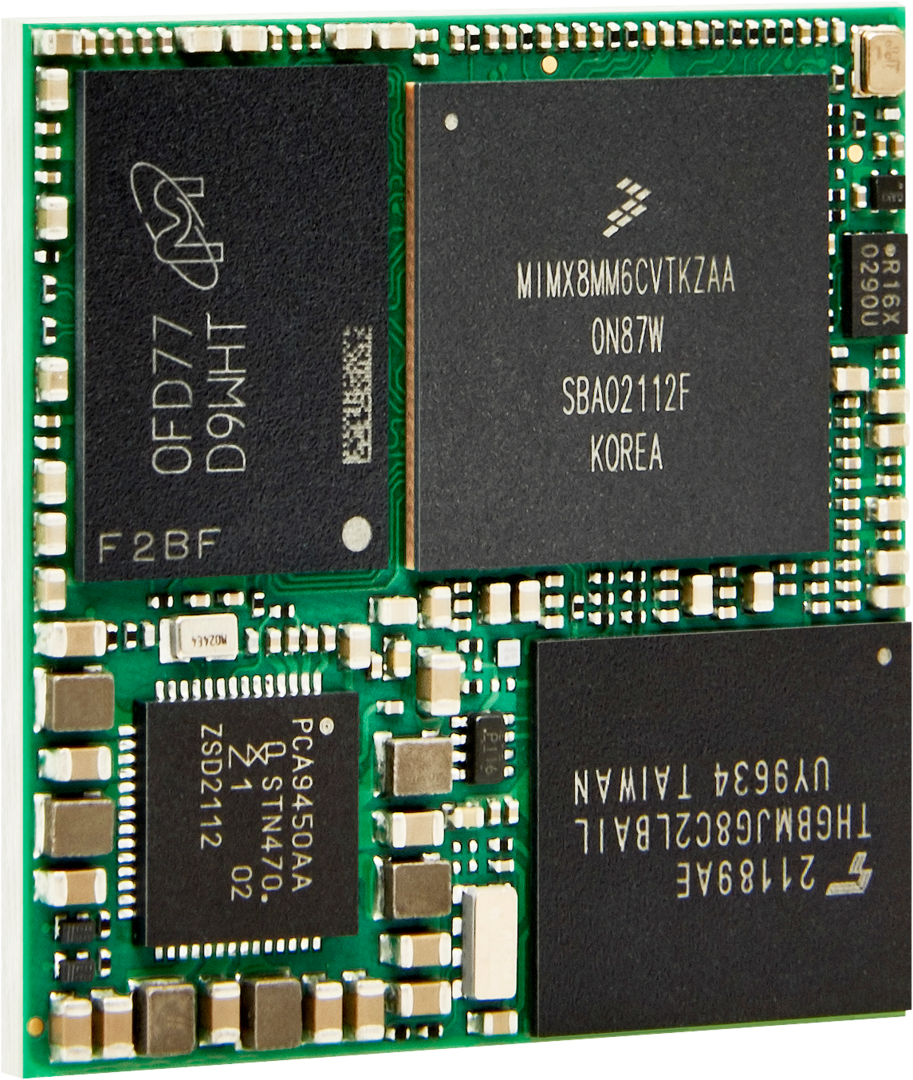

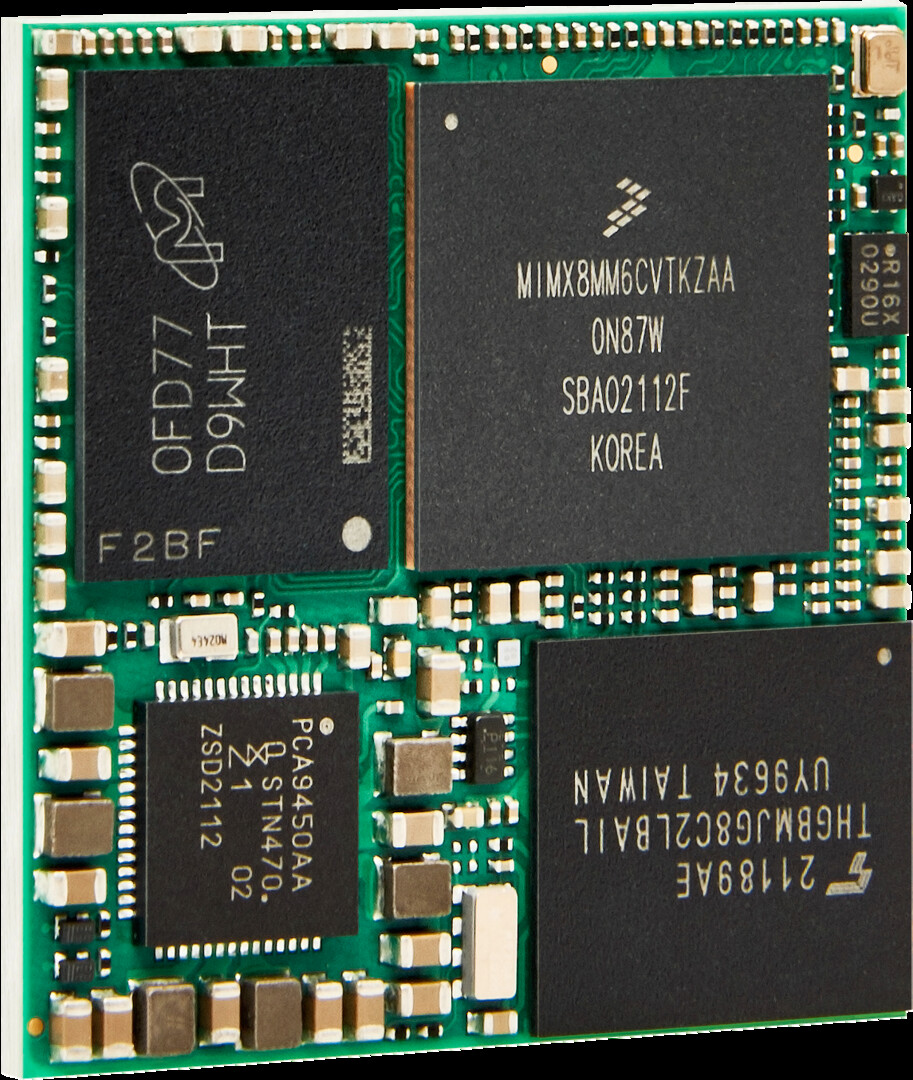

SoM OSM-S i.MX8M Mini
Open Standard Module™ (OSM) with NXP i.MX8M Mini Processor
Specifications
- 4x Arm® Cortex®-A53 @1.6 GHz
- 2D GPU and 3D GPU
- Up to 4 GByte LPDDR4-RAM and up to 128 GByte eMMC
- 1x 1 Gbit/s Ethernet
- OSM-Size-S, form factor 30 mm x 30 mm
The OSM-S i.MX8M Mini from Kontron Electronics is a versatile system-on-module that leverages the advantages of the OSM standard specifically for demanding embedded applications. Thanks to the OSM standard, the OSM-S i.MX8M Mini is designed as a directly solderable module without connectors, enabling particularly cost-effective and efficient automated assembly. Combined with the high performance of the NXP i.MX8M Mini processor in a compact 30 x 30 mm form factor, the SoM module offers an optimal solution for projects where space requirements, energy efficiency, and computing power are equally critical.
Performance & Architecture
The OSM-S i.MX8M Mini delivers powerful performance with 4x Arm® Cortex®-A53 cores running at 1.6 GHz. The integrated 2D/3D graphics processor enables smooth user interfaces and hardware-accelerated graphics. Its multi-core architecture ensures efficient parallel processing and a balanced ratio of performance to energy consumption -making it ideal for compute-intensive applications and image processing.
Communication Interfaces
The module features a wide range of interfaces, including digital I/Os, serial ports, PWM, two SDIO connectors, a Gigabit Ethernet port (GbE), and two USB 2.0 OTG interfaces. In addition, the OSM-S i.MX8M Mini offers flexible options for connecting peripheral devices, such as I²C, SPI, and UART, as well as support for audio and display interfaces, enabling versatile integration into a variety of embedded applications.
Areas of Application & Advantages
The OSM-S i.MX8M Mini’s RISC processors, based on the Arm® architecture, combine energy efficiency with high computing and graphics performance. This makes the module particularly well-suited for cost-effective embedded solutions. Thanks to the comprehensive integration of all essential components and the consistent implementation of the OSM standard, the OSM-S i.MX8M Mini delivers maximum flexibility, greatly simplifying the development of customized applications.
Features
| CPU | NXP i.MX8M Mini, 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU |
| LPDDR4-RAM | 4 GByte Options: 1 GByte, 2 GByte |
| NOR-FLASH | 2 MByte |
| eMMC | 32 GByte Options: 4 GByte up to 128 GByte |
| EEPROM | 8 kB (64 kb) Options: on request |
| Ethernet | 1x 1 Gbit/s (RG MII) |
| USB | 2x 2.0 OTG |
| I/Os | 4x UART, 2x I²C, 2x SPI, 24x GPIO, 3x PWM, 1x PCIe, 1x SAI, 2x SDIO (1x 4-bit, 1x 8-bit) |
| Camera Interface | 1x MIPI CSI (4-lane) |
| Power Supply | 5 V DC ±5 % |
| IO Voltage | 1.8 V Option: 3.3 V |
| Power Consumption | Linux running < 1 W, max. < 3.5 W |
| Temperature range | -25 °C ... +85 °C |
| RTC (I²C) | 45 nA / 1ppm @25 °C |
| Operating System | Embedded Linux (Yocto Distribution) |
| Form Factor | 30 x 30 mm OSM Size-S |
| Footprint | 332 Pin / RM 1.25 mm |
| Security | HAB Secure Boot, TrustZone, TRNG, RSA bis zu 4096, AES-128/192/256, 3DES, ARC4, MD-5, SHA bis zu 256, ECC, Secure JTAG |
