SMARTCASE™ S530
Specifications
Coming soon- Ultra-Compact Design (0.87 liter)
- White edition - fits best for medical applications

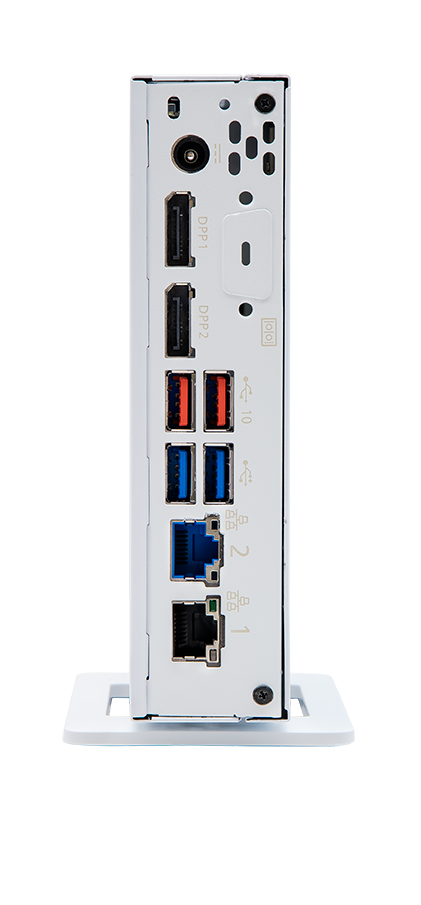

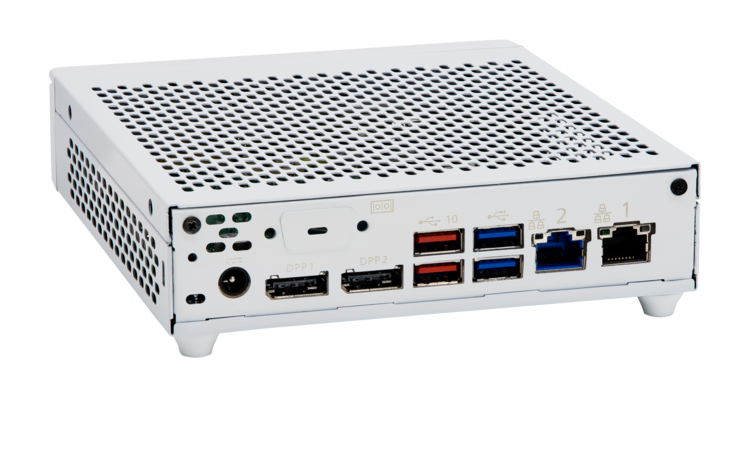

- Front & Rear USB

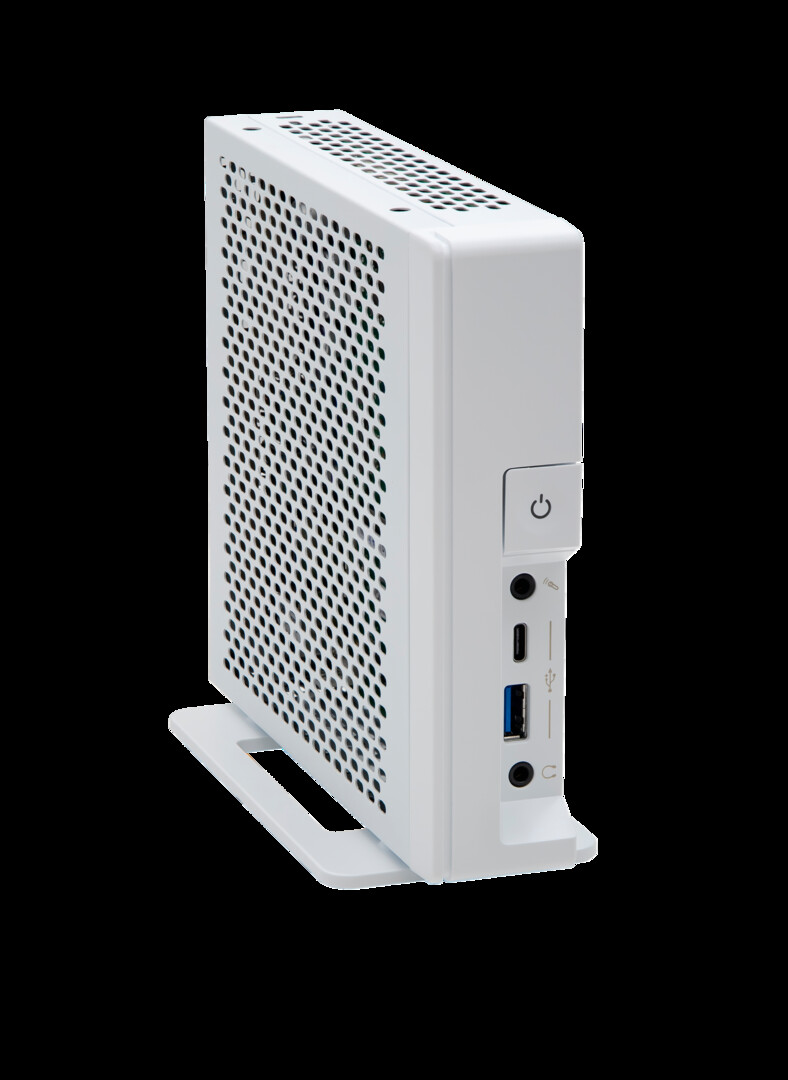

- Horizontal or Vertical Operation
- VESA- and Wall Mount Option
The compact SMARTCASE™ S530 chassis is designed for the industrial motherboards K3921-H, K3921-N, and K4021-U, based on the latest Intel® Alder Lake N & Twin Lake series and Intel® Core™ Ultra processors. With a housing volume of just 0.87 litres and extensive connectivity and power options, the S530 is an ideal solution for various applications. Its white design makes it particularly well-suited for medical environments.
A comprehensive range of well-matched accessories is also available. The SMARTCASE™ S530 supports both horizontal and vertical mounting orientations and is fully validated and certified.
Features
| Dimensions (W x H x D) | 36 x 147 x 165 mm |
| Colour | white |
| Weight | ~ 0.4 kg |
| Operating Temperature | Chassis ambient temperature; upper limit depends on system configuration Active Cooling: -10°C ... +45°C (max. 15W TDP) -10°C ... +35°C (max. 28W TDP) Passive Cooling: -10°C ... +35°C (max. 12W TDP, any position)** -10°C ... +40°C (max. 10W TDP, any position)** -10°C ... +45°C (max. 10W TDP, vertical position) ** Vertical operating position recommended for most favorable cooling & system performance |
| Humidity | 5% - 85% relative humidity (non-condensing) |
| EMC | Verified for CE Class B, Industrial Immunity (EN 61000-6-2) Verified for FCC-B/ICES-003 |
| PACKAGE CONTENT | Chassis desk stand (vertical mode, removable) Rubber feet (horizontal mode, removable) Chassis bottom/top incl. front bezel; Rear I/O with integrated EMI gasket 1x Rear I/O K-K1056-B626 (for K3921-H/-N) 1x Rear I/O K-K1056-B627 (for K4021-U) |
| Theft Protection | Kensington lock support Mechanical lock for DC-In connector (DC-in holder; optional) Intrusion support (optional) |
| Mounting | Integrated WLAN antennas Wall Mount VESA Kit Cooling solution Rear COM port |
| Safety | Compliance with IEC 62368-1 according clause 6.2.2. to power source category PS2 (“Limited Power Source”) required! |
