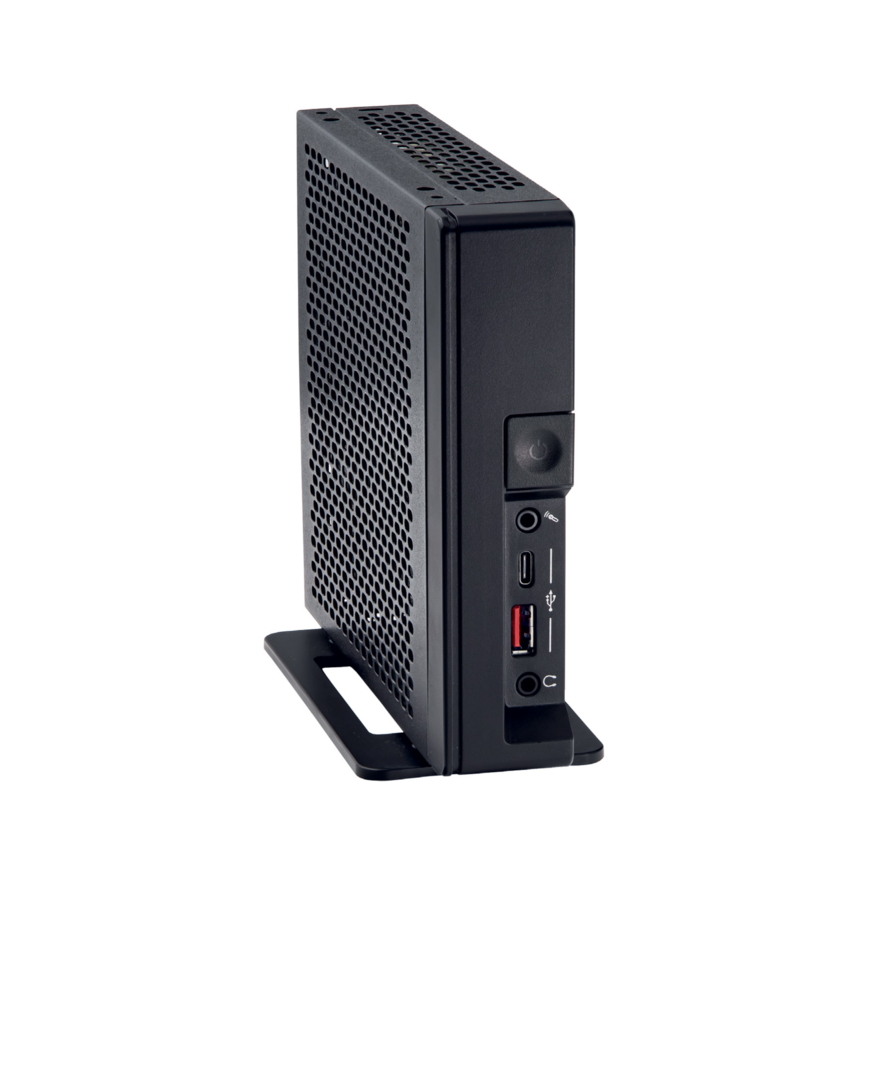

SMARTCASE™ S502

Chassis Kit Solution for K4021- U mSTX

Specifications

Coming soon

Ultra-Compact Design
36 x 147 x 165 mm

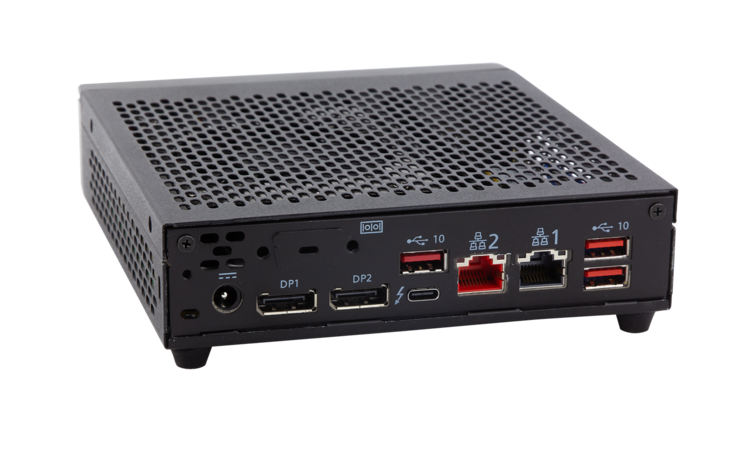

Front & Rear USB
Horizontal or Vertical Operation
VESA- and Wall Mount Option

Download Datasheet

The compact SMARTCASE™ S502 chassis is designed for the industrial K4021-U mSTX motherboard, based on the latest Intel® Core™ Ultra processors. With a housing volume of just 0.87 litres and extensive connectivity and power, the S502 is an ideal fit for digital signage, KIOSK, POS/POI applications, and many more.
A comprehensive range of well-matched accessories is also available. The SMARTCASE™ S502 supports both horizontal and vertical mounting orientations and is fully validated and certified.

Features

Dimensions (W x H x D)

36 x 147 x 165 mm

Colour

black

Weight

~ 0.4 kg

Operating Temperature

Active Cooling:
-10°C ... +45°C (max. 15W TDP)
-10°C ... +35°C (max. 28W TDP)

(Chassis ambient temperature; upper limit depends on system configuration)

Humidity

5% - 85% relative humidity (non-condensing)

EMC	Verified for CE Class B, Industrial Immunity (EN 61000-6-2) Verified for FCC-B/ICES-00

Theft Protection

Kensington lock support
Mechanical lock for DC-In connector (DC-in holder; optional)
Intrusion support (optional)

Mounting

Integrated WLAN antennas
Wall Mount
VESA Kit
Cooling solution
Rear COM port

Safety

Compliance with IEC 62368-1 according clause 6.2.2. to power source category
PS2 (“Limited Power Source”) required!

Downloads

技术参数

Datasheet SMARTCASE™ S502
[ smartcase_s502.pdf, 1.36 MB, Jul.15.2025 ]

参考手册

General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]

白皮书

Modules and Motherboards WP [restrictions apply]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 8.28 MB, Mar.17.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

Wall mount bracket for SMARTCASE™ S501 & S511 S26361-F5000-X001		2 x Brackets per chassis incl. screws
VESA mount SMARTCASE™ S5xx S26361-F5000-X002		"E-Line bracket"

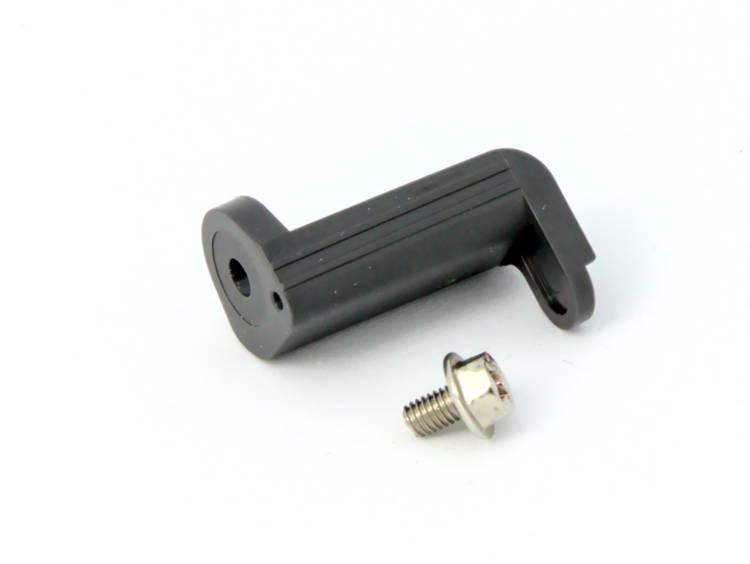

DC in holder for SMARTCASE™ S501 & S511 S26361-F5000-X003		Holder incl. screws
AC Adapter S26361-F5000-P006		19V / 3.42A, 65W - w/o power cord
WLAN Kit for SMARTCASE™ S511 S26361-F5000-W005		left (grey)/right (black) Antenna (incl. cable) to be fitted into mSTX chassis
COM Cable short w/o bracket S26361-F5000-K007		w/o slot bracket, length = 120mm; new 2mm pitch internal connector

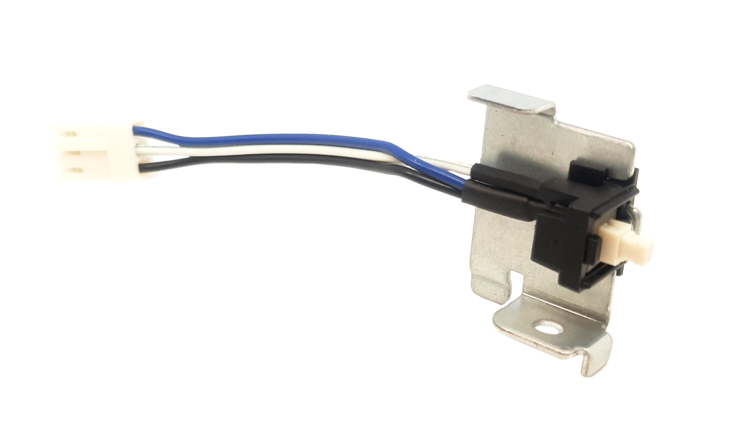

Chassis Intrusion Kit S26361-F5000-K017		Improved system security through “Chassis Intrusion Supervision” option
