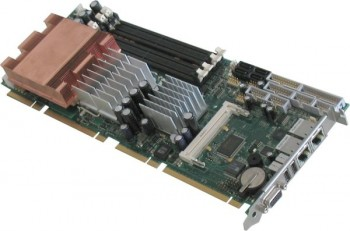

PCI-760 This product is legacy
Core2Duo 及 Core2 Quad, Intel Q35 + ICH9DO, 3个千兆以太网
Specifications
- Intel Q35 + ICH9DO 芯片组
- 1333/1066/800 MHz 系统总线
- Intel® 矩阵存储技术
- Intel® GMA 3100
- 3个千兆以太网接口
- 内存最高可达 8 GB DDR-II
- HD Audio
- 6个 Serial ATA (SATA-II) 接口速度 3 Gb/s
性能迅速
PCI-760 使用Intel最新的低功耗处理器 Core 2 Duo以及Core 2 Quad, Q35芯片组，提供强劲的性能以满足您创新应用的需求。采用PCI-Express 接口，I/O性能也可满足下一代应用领域的要求。 PCI-960 支持丰富的软件，可将部署风险降至最低，简化产品整合难度，同时在产品面向市场的过程中最大化您的竞争优势。
接口丰富
具备丰富的接口，对于满足如今种类繁多的网络应用具有重要的意义。PCI-760配备6个USB 2.0 以及3个千兆以太网接口，可满足您的连接需求。
良好扩展性
使用标准miniPCI连接器可满足您几乎无限的扩展要求。 控创提供网络、FireWire、SCSI 320® 以及WLAN扩展
PCI-760 使用Intel最新的低功耗处理器 Core 2 Duo以及Core 2 Quad, Q35芯片组，提供强劲的性能以满足您创新应用的需求。采用PCI-Express 接口，I/O性能也可满足下一代应用领域的要求。 PCI-960 支持丰富的软件，可将部署风险降至最低，简化产品整合难度，同时在产品面向市场的过程中最大化您的竞争优势。
接口丰富
具备丰富的接口，对于满足如今种类繁多的网络应用具有重要的意义。PCI-760配备6个USB 2.0 以及3个千兆以太网接口，可满足您的连接需求。
良好扩展性
使用标准miniPCI连接器可满足您几乎无限的扩展要求。 控创提供网络、FireWire、SCSI 320® 以及WLAN扩展
Features
| CPU | Core2Duo and Core2 Quad (LGA775) |
| Ethernet | 3x 10/100/1000 base-T |
| Flash Disk | Z-U130 |
| Graphics Controller | GMA 3100 |
| Main Memory | 8GB DDR-II |
| RAID | RAID 0,1 and 5 |
| SATA | 6x SATA-II |
Downloads
技术参数
Datasheet PCI-760
[ pci-760-130208.pdf, 954.48 KB, Aug.31.2017 ]
参考手册
User manual PCI-760
[ pci_760_for-v1_10_e_x6_web.pdf, 4.54 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
BIOS
Bios Version 3B600016
New Features:
- Fix boot order setting
- Option for boot-priority for onboard USB device
- Enhanced AHCI / RAID support
- Remove last-state for Power-On
- Fix serial over LAN issue
- Improve boot process
- Update PXE boot ROM
[ 3b600016.zip, 834.54 KB, Nov.27.2013 ]
芯片组驱动
AMT: Serial over Lan and misc tools
[ pci-760_lms_sol.zip, 8.49 MB, Jul.03.2018 ]
Q35 ME Engine driver
[ pci-760_chipset_amt_heci.zip, 1.61 MB, Jul.03.2018 ]
Q35 INF update for Windows
[ pci-760_chipset_ich9r.zip, 2.57 MB, Jul.03.2018 ]
TPM: Base driver and tools
[ pci-760_tpm_professional_package_sw_3-0_sp1.zip, 96.74 MB, Apr.20.2023 ]
以太网驱动
Q35 Intel LAN for XP and Vista 32 bit
[ pci-760_lan_chipset_intel-lan_i82566dm_windows_xp.zip, 0 B, Jul.03.2018 ]
RTL8110SC Driver for Windows XP
[ pci-760_lan_8110sc_windowsxp_2k_-2003server_32bit_64bit.zip, 0 B, Jul.03.2018 ]
RTL8111B Driver for WindowsXP Windows 2000
[ pci-760_lan_rtl8111b_windowsxp_2k_-2003server_32bit_64bit.zip, 0 B, Jul.03.2018 ]
Q35 Intel LAN for XP and Vista 64 bit
[ pci-760_lan_chipset_intel-lan_i82566dm_windows_xp_professional_x64.zip, 0 B, Jul.03.2018 ]
Q35 Intel LAN for Windows 7 32 bit
[ pci-760_lan_chipset_intel-lan_i82566dm_windows-7.zip, 0 B, Jul.03.2018 ]
Q35 Intel LAN for Windows 7 64bit
[ pci-760_lan_q35_intel.zip, 0 B, Jul.03.2018 ]
RTL8110SC Driver for Windows 7
[ pci-760_lan_8110sc_windows7_32bit_64bit.zip, 0 B, Jul.03.2018 ]
RTL8111B Driver for Windows 7
[ pci-760_lan_rtl8111b_windows7_32bi_-64bit.zip, 0 B, Jul.03.2018 ]
RTL8110SC Driver for Windows Vista
[ pci-760_lan_8110sc_vista_winserver2008_32bit64bit.zip, 0 B, Jul.03.2018 ]
RTL8111B Driver for Windows Vista
[ pci-760_lan_rtl8111b_vista_winserver2008_32bit64bit.zip-2, 0 B, Jul.03.2018 ]
音频驱动
ALC882 Windows Vista Windows 7 Audio driver
[ pci-760_sound_vista_7_32bit_64bit_r2-28.zip, 55.8 MB, Apr.20.2023 ]
ALC882 Windows XP Audio driver
[ pci-760_sound_windows-2000_-xp_-32bit_r2-38.zip, 30.84 MB, Apr.20.2023 ]
视频驱动
Q35 Video for Windows Vista 64-bit
[ winvista64_158.exe, 14.24 MB, Nov.27.2013 ]
Q35 Video for Windows XP 64-bit
[ pci-760_graphics_windows_xp_64.zip, 19.69 MB, Nov.27.2013 ]
Q35 Video for Windows XP 32-bit
[ pci-760_graphics_windows_xp_32.zip, 14.27 MB, Nov.27.2013 ]
Q35 Video for Windows 7 64-bit
[ pci-760_graphics_windows_7_64.zip, 23.77 MB, Nov.27.2013 ]
Q35 Video for Windows 7 32-bit
[ pci-760_graphics_windows_7_32.zip-4, 23.67 MB, Nov.27.2013 ]
机械图纸
PCI-760: 3D model
[ pci-760.easm, 133.79 KB, Nov.27.2013 ]
Outline drawing
[ 9-1500-3600_dimensions.pdf, 339.19 KB, Nov.27.2013 ]
RAID驱动
Intel Matrix Storage Technologie: Driver and tools for Windows
[ pci-760_raid_matrix_storage_manager.zip, 6.23 MB, Jul.03.2018 ]
RAID FDD 32-bit
[ pci-760_raid_fdd_32-bit.zip, 206.16 KB, Jul.03.2018 ]
RAID FDD 64-bit
[ pci-760_raid_fdd_64-bit.zip, 237.66 KB, Jul.03.2018 ]
测试报告
RoHS declaration of conformity
[ kec_doc-rohs_pci-760.pdf, 20.21 KB, Nov.27.2013 ]
DoC for CE regulation
[ ce_doc_pci-760_9-1xxx-3600.pdf, 306.43 KB, Nov.27.2013 ]
UL CoC
[ certificate-of-compliance-20100624-110338.pdf, 146.88 KB, Nov.27.2013 ]
