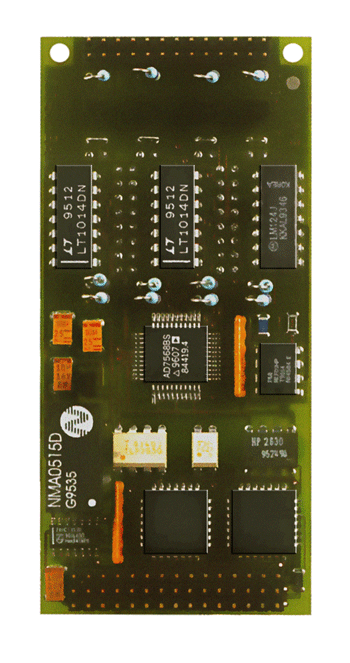

PB-DAC3 This product is legacy

4 通道隔光 12-位 D/A ModPack
Specifications
  • 4 隔光特定输入通道
  • 输入: 0..10V,+/-5V,+/-10V,0..20mA
  • 12-bit (+/-0,75-bit) 精度
  • 20 kHz 频率
  • 软件差异纠正
  • 板载校准数据
  • 宽温支持 -40C 到 +85C

4 通道 12位隔光 A/D 配合 ModPack 载板使用。输入配备阴极保护,双极、单极及不同电压版本可选。板载校准数据存储在EEPROM 中。PB-DAC3支持OS9及
VxWorks。

Downloads

技术参数

Datasheet
[ pb-dac3_datasheet.pdf, 210.16 KB, Aug.31.2017 ]

参考手册

Manual
[ pb-dac3_manual.pdf, 1.49 MB, Sep.11.2017 ]

PB-DAC3_ERRATA_1
[ pb-dac3_errata_1.pdf, 110.39 KB, Sep.11.2017 ]

PB-DAC3_ERRATA_2
[ pb-dac3_errata_2.pdf, 112.41 KB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
