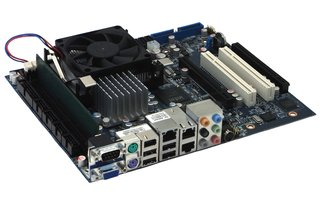

KTGM45/FLEX This product is legacy
嵌入式 FLEX-ATX 主板支持 45nm 制程 Intel® Core™2 Quad 以及 Intel® Core™2 Duo 处理器，最高支持T9400
Specifications
- Intel® Core™2 Quad 以及 Intel® Core™2 Duo 处理器，支持 T9400
- 具备长期供货保证的嵌入式 FLEX-ATX 主板
- Intel® GM45 + ICH9M-E 嵌入式芯片组
- Intel® GMA 4500 MHD 显卡
- 可通过 ADD2卡提供平板显示支持 (DVI, LVDS)
- 3个 Intel® 千兆以太网接口, 其一支持 Intel® AMT 4.0
- 可达 8 GB DDR3内存, 2个 DIMM 240 pin 插槽
- 4个 SATA150/SATA300 w. RAID 0/1/5/10, HD Audio, 12个 USB 2.0
- PCI-Express 16x
使用 Intel Mobile 82GM45 显卡及内存控制器中枢、Intel I/O 控制器中枢 (Intel ICH9EM) 的KTGM45/FLEX保持了低功耗(14.5 watts)，适用于需要节约能耗的嵌入式解决方案
基于移动 Intel® GM45 芯片组的控创 KTGM45/FLEX 嵌入式主板具备长期供货保证，是组建最佳能耗比方案的理想选择。具备最新的接口技术如第二代 PCI Express x16 接口，可满足嵌入式设计师的设计需求。板上被有4个串口、12个 USB 2.0接口。此款主板较以往的主板相比、PCB层数更多以取得更佳的信号质量以及电磁兼容性。控创最新的嵌入式主板同样支持 Intel 主动管理技术 (Intel AMT 4.0) 以实现远程管理及维护功能，可为系统提供更高的可靠性同时降低总体成本。
Features
| Form Factor | Flex-ATX |
| Dimensions (H x W x D) | 9" x 7,5" 22,86 cm x 19,05 cm |
| CPU | Supports: Intel® Celeron 575, single core 2.00GHz, 31W Intel® Celeron T3100, Dual Ccore 1.90GHz, 31W Intel® Core 2 Duo P8400, 2.26GHz, dual Core, 25W Intel® Core 2 Duo T9400, 2.53GHz, dual Core, 35W |
| Chipset | Intel® GM45 ICH9M-E |
| Main Memory | up to 8 GB DDR3 DIMM-240 (max 2x 4GB) |
| Front Side Bus | 667/800/1066Mhz |
| Graphics Controller | Intel® GMA4500 support DVMT 5.0 |
| Graphics | CRT (up to 2048x1536) output and SDVO digital output for DVI, Dual Channel LVDS (1920x1080) & HDMI PCI-Express x 16/SDVO, SVideo/TV (optional) |
| Ethernet Controller | Intel® Boazman-LM WG82567LM Intel® Hartwell 82574L |
| Ethernet | 3x Intel® Gigabit Ethernet (1x AMT 5.0 support) |
| Hard Disk | 4x SATAII 150/300 w. RAID 0,1 support |
| Parallel Port | 1x ATA100 (2.54 mm connector) Thru LPT connector |
| Flash Onboard | n/a |
| PCI | 2x PCI |
| PCI Express / PCI support | 1x PCIe x16/SDVO for external graphics card or ADD2 cards 1x PCIe x4 in x16 slot |
| Mini-PCI | n/a |
| USB | 12x port USB 2.0 (8x internal and 4x external) |
| IEEE 1394 Firewire | n/a |
| Serial | 4x RS232C serial ports with FIFO |
| Rear I/O |
| Audio Controller | Realtek ALC888 7.1 channel HD audio |
| Keyboard | internal PS/2 Mouse/Keyboard connector |
| Special Features | Software interface to monitor hardware values including HDD S.M.A.R.T. Watchdog On board Lithium battery and external battery input |
| BIOS | AMI |
| Power Management | ACPI 3.0 |
| Operation Temperature | 0 - 60°C (32°F - 140°F) |
| Operating System | Win CE 6.0, WinXPe; WES7 Linux VxWorks |
| Compliance | EN55022 EN61000-4-2(ESD) |
Downloads
技术参数
KTGM45 Family Datasheet
[ datasheet-ktgm45-family.pdf, 495.17 KB, Aug.31.2017 ]
参考手册
KTD-N0793 KTGM45 Users Guide
[ ktd-n0793-o-ktgm45-users-guide.pdf, 5.11 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
机械图纸
KTGM45_Flex 3D Drawing in stp format
[ ktgm45_flex-3d-drawing-stp.zip, 3.87 MB, Nov.27.2013 ]
KTGM45_Flex 3D Drawing in pdf format
[ ktgm45_flex-3d-drawing-pdf.pdf, 10.3 MB, Nov.27.2013 ]
KTGM45 IO Bracket
[ 1044-0821-ktgm45-io-bracket.pdf, 131.9 KB, Nov.27.2013 ]
KTGM45/Flex Mechanical Drawings 2D (mils and mm) in PDF
[ ktgm45flex-2d-drawings-in-pdf.zip, 1.49 MB, Nov.27.2013 ]
