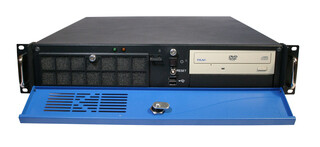

KISS 2U KT965 This product is legacy

采用工业主板的 2U 静音服务器

Specifications

支持高端四核CPU
内存可支持 8 GB DDR 2
两个PCI 32位插槽
可选24 V DC PSU
可选 AC 冗余 PSU
RAID 1 KISS Stor Slim 存储子系统
2个USB 2.0
3 个感应器控制热插拔机箱风扇

Download Datasheet

KISS 2U KT965 配备长期可用性主板，支持高端四核CPU。
适用于严酷环境下的连续云状，KISS 2 U 可用于多种行业行用。

Features

CPU	Core 2 Duo and Quad Core

Chipset

Q965 + Intel ICH8DO

Connectivity

Front: 2* USB 2.0, REAR: COM1,VGA,Line in , Line out,6* USB 2.0, PS/2 M+K,2* LAN 10/100/1000

Approvals

Cooling

3 * Hot swap chassis fans

Dimensions (H x W x D)

2U x 19" x 472 mm

Drives

1 x 3,5 bay, 1 x 5,25" bay, 1 x 3,5" bay internal

Free Slots

2 x PCI 32 Bit full size

Front Side Bus

533/800/1066 MHz

Main Memory

Up to 8 GB DDR 2

Mounting

Rack Mount, Desktop

Power Supply

AC wide range 300 W, optional DC 24 V, optional AC redundant

System Monitoring

By API

Temperature

Operating: 0-50 Degrees/C , 0-45 degrees/C for Quad Core

Verified OS

WIN XP

Weight

~ 8 kg

Downloads

技术参数

Datasheet KISS 2U KT965
[ datasheet-kiss-2u-kt965-atx.pdf, 592.25 KB, Aug.31.2017 ]

参考手册

Benutzerhandbuch KISS 2U
[ kiss_2u_v1_02_web_g.pdf, 1.08 MB, Sep.11.2017 ]

Usermanual KISS 2 U
[ kiss_2u_v1_02_web_e.pdf, 1.06 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

BIOS

BIOS Tools Package v6.5
(Included BF.exe updated 09-03-2011)
[ bios-tools-package-v6-5.zip, 2.5 MB, Apr.20.2023 ]

KTD-00664 BIOS tools Package User Manual
[ ktd-00664-k-bios-tools-package-user-manual.pdf, 65.87 KB, Nov.27.2013 ]

KT965 BIOS version 0.21
[ kt965-bios021.zip, 909.47 KB, Nov.27.2013 ]

板卡支持包

KT965 Windows XP Embedded BSP 2008-01-09
[ kt965_windows_xp_embedded.zip, 27.78 MB, Nov.27.2013 ]

芯片组驱动

KT965 Chipset Driver
DriverCD_PN_91600556
[ chipset.zip, 2.1 MB, Jul.03.2018 ]

以太网驱动

KT965 Lan Driver
DriverCD_PN_91600556
[ lan.zip, 15.63 MB, Jul.03.2018 ]

LAN Linux Driver up to Linux 2.6.18
(Use r8169 driver for newer Linux version)
[ r1000_v105a_20070227.zip, 0 B, Jul.03.2018 ]

音频驱动

KT965 Audio driver Vista
Driver CD PN 91600556
[ kt965-audio-vista-91600556.zip, 18.65 MB, Jul.03.2018 ]

KT965 Audio Driver Vista-Win7 R253
This driver has not yet been qualified for KT965.
[ kt965-audio-driver-vista-win7-r253.zip, 78.85 MB, Jul.03.2018 ]

KT965 Audio XP Driver
DriverCD_PN_91600556
[ kt965-audio-xp-91600556.zip, 26 MB, Jul.03.2018 ]

视频驱动

KT-VPT KT965 Graphic Driver XP/2K
Used for KT965 family of Motherboards to fix the onboard CRT, ADD2-CRT and ADD2-DVI so that displays always turns on if selected in Graphic Driver.
[ kt-vpt-kt965-v1005.zip, 20.26 MB, Nov.27.2013 ]

KT965 Graphics Driver
DriverCD_PN_91600556
[ graphics.zip, 63.63 MB, Nov.27.2013 ]

软件

Demo version PC Condition Monitoring [restrictions apply]
[ demo-version-pccm1-5-23.zip, 11.5 MB, Apr.20.2023 ]

兼容性矩阵

North American KISS 2U KR-2101-KT965 Compatibility Guide for Distributors
[ disti-kr-2101-kt965-2-16-12.pdf, 27.18 KB, Nov.27.2013 ]

机械图纸

Outline dimensions KISS 2U
[ outline-drawings-kiss-2-u.pdf, 111.85 KB, Nov.27.2013 ]

RAID驱动

KT965 Raid Driver
DriverCD_PN_91600556
[ raid.zip, 5.54 MB, Jul.03.2018 ]

订购指南

KISS 2U Configuration Guides
[ kiss-2u_configuration-guides.pdf, 76.23 KB, Nov.27.2013 ]

KISS 2U KR-2101 KT965 North American Ordering Guide
For North American Customers
[ kr-2101-kt965-2-16-12.pdf, 1.25 MB, Nov.27.2013 ]

测试报告

EMC TEST REPORT KISS 2U 965 [restrictions apply]
[ emc-test-report-kiss-2u-965.pdf, 5.71 MB, Nov.27.2013 ]

Temperature Test Report KISS 2U KT965 [restrictions apply]
[ temperature-testreport-kiss-2u-kt965-q6700.pdf, 737.32 KB, Nov.27.2013 ]

Safety Test Report KISS 2U 965 [restrictions apply]
[ safety-test-report-kiss-2u-965-a.pdf, 357.61 KB, Nov.27.2013 ]

Declaration of Conformity_KISS 2U 965LCD-MFlex
[ ce_doc_kiss-2u-965-a_2-a08c-2xxx.pdf, 213.05 KB, Nov.27.2013 ]

Windows

WINDOWS7_License_terms_Kontron
[ windows7_license_terms_kontron.pdf, 134.57 KB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

PCCM PC Condition Monitor	Contignous Condition Monitoring and Remote Diagnosis Permits the Highest Availability with the Lowest Costs	more

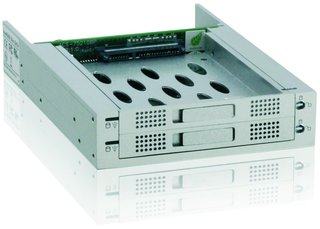

KISS Stor Slim KISS Stor Slim	3,5" RAID 1 subassembly integrated RAID contoller	more

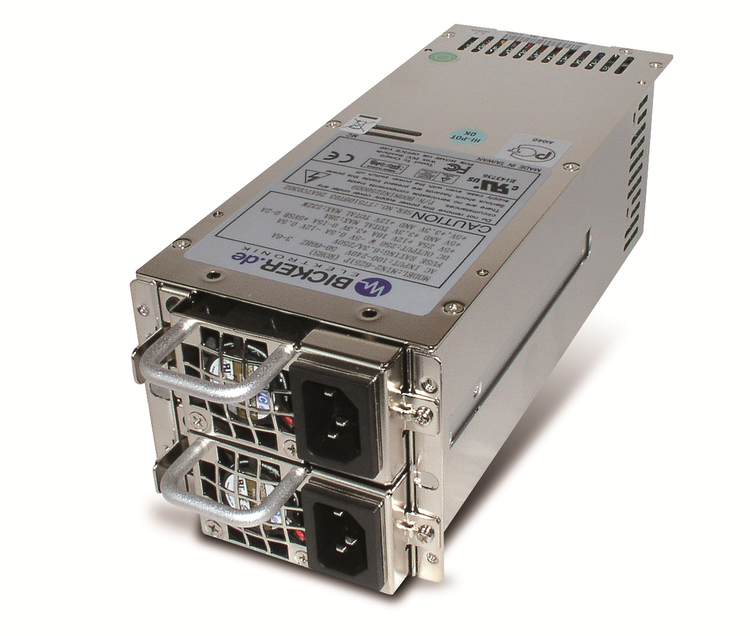

MIN2-6251P	1+1 redundant AC for 2 U systems	more

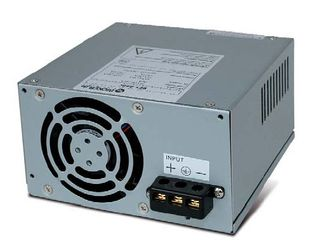

BES-640P BES-640P	120 V DC input	more

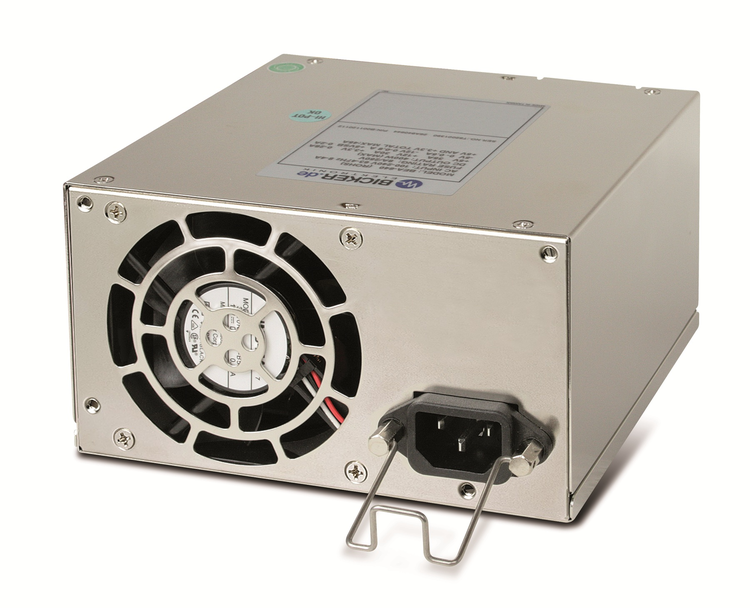

BEA-640-B5	EMX Filter for EN 60945	more
