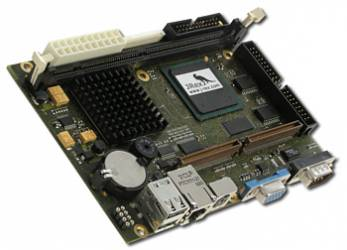

JRex-GX1 This product is legacy
FANLESS Geode GX1 300MHz, LAN, USB, CRT/LCD, SDRAM-DIMM, EIDE, FDC, ATX or AT
Specifications
- SDRAM-DIMM for up to 256 MByte
- up to 4 MByte VRAM (UMA), for CRT & LCD (JILI)
- Compact Flash socket type I
- 10/100 BaseT LAN and 2xUSB
- EIDE, FDC, COM, Keyboard/Mouse, ATX or AT power socket
- LanBoot, DarkBoot, Watchdog, RTC
- See the "Software & Drivers" link under "Related Info" in the side navigation bar for JREX-GX1 driver and software support
- Geode GX1 300 MHz, fanless
Embedded Line - JRex-GX1 - communication and visualisation, excellent price
FANLESS use for enhanced application reliability.
Each JRex is a member of the 3.5´´ SBC family. JRex modules are characterized by the same surface pinouts and interfaces for Reset, ATX feature, 2xUSB, FAST LAN, Keyboard/Mouse-socket, Compact-Flash, VGA and COM1. This family feature allows to reuse chassis and maximizes design re-use.
This JRex-GX1 hosts a fanless National Geode GX1 CPU at 300MHz. A SDRAM-DIMM socket for up to 256 MByte allows the use of standard desktop memory and full ATX power supply is as well a standard feature.
These homogeneous features facilitate easy upgrades within the JRex product family. Connection of displays (18bit TFT) is simplified when using the onboard standard JILI-Interface (JUMPtec® Intelligent LVDS Interface). JILI automatically recognizes which display is connected and independently sets all video parameters. All JRex are plug-and-work enabled to further reduce time-to-market.
Please see the following link to a dedicated JRex online page, with drivers, detailed technical information & support as well as a Forum where you can post questions and suggestions. JRex-FORUM
Get here to a MULTIMEDIA JRex-extension with TV Out, Firewire and Sound (AC97, SPDIF)
Get here to a low cost Sound (AC97) JRex-extension.
Get here to a COMMUNICATION add-on JRex-extension with 2xLAN, 2xUSB and Firewire.
Each JRex is a member of the 3.5´´ SBC family. JRex modules are characterized by the same surface pinouts and interfaces for Reset, ATX feature, 2xUSB, FAST LAN, Keyboard/Mouse-socket, Compact-Flash, VGA and COM1. This family feature allows to reuse chassis and maximizes design re-use.
This JRex-GX1 hosts a fanless National Geode GX1 CPU at 300MHz. A SDRAM-DIMM socket for up to 256 MByte allows the use of standard desktop memory and full ATX power supply is as well a standard feature.
These homogeneous features facilitate easy upgrades within the JRex product family. Connection of displays (18bit TFT) is simplified when using the onboard standard JILI-Interface (JUMPtec® Intelligent LVDS Interface). JILI automatically recognizes which display is connected and independently sets all video parameters. All JRex are plug-and-work enabled to further reduce time-to-market.
Please see the following link to a dedicated JRex online page, with drivers, detailed technical information & support as well as a Forum where you can post questions and suggestions. JRex-FORUM
Get here to a MULTIMEDIA JRex-extension with TV Out, Firewire and Sound (AC97, SPDIF)
Get here to a low cost Sound (AC97) JRex-extension.
Get here to a COMMUNICATION add-on JRex-extension with 2xLAN, 2xUSB and Firewire.
Downloads
技术参数
JRex-GX1 Datasheet 3.5 SBC Geode
[ d_jrex-gx1_sbc_with_amd_geode.pdf, 217.71 KB, Aug.31.2017 ]
参考手册
JRex-GX1 Manual 3.5 SBC Geode
[ m_bqg1m112.pdf, 531.67 KB, Sep.11.2017 ]
JUMPtec Ethernet Remote Target Setup documentatio
JUMPtec Ethernet Remote Target Setup documentation. Please contact your local JUMPtec sales representative for further information on how to order the actual software.
[ jerts.pdf-3, 34.67 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
驱动程序
Ethernet driver archive for Davicom DM9102 (A)
[ dm9rv115.exe, 2.72 MB, Jul.03.2018 ]
Windows® NT Embedded Solution Pack. Includes KDFs, Drivers and BSPs.
[ ntspi111.zip, 804.49 KB, Jul.03.2018 ]
Davicom Ethernet driver package
[ dm9102a_oemcd_v123.zip, 1.98 MB, Jul.03.2018 ]
Graphic driver for Windows 98
[ gx_win98_video_4_10_01_1320.zip, 99.15 KB, Jul.03.2018 ]
Driver package for National Geode (version 1.2)
This release contains v1315 video, v 1006 audio, and v1.07p5 UDMA drivers
[ national_geode.exe, 826.37 KB, Jul.03.2018 ]
Sound driver for Windows 9x
[ win9xa_06.zip, 51.63 KB, Jul.03.2018 ]
Ethernet driver for Davicom DM9102(A)
[ qnx100-6-1-1.zip, 46.85 KB, Jul.03.2018 ]
Graphic driver for Windows NT
[ nt401019.zip, 40.4 KB, Jul.03.2018 ]
Kontron Windows® XP Embedded Solution Pack
is an add-on to Microsoft Windows XP Embedded and its primary tool Target Designer. The solution pack includes Video Drivers, Ethernet Drivers and the JIDA32 Library API.
[ xpspi119.zip, 0 B, Jul.03.2018 ]
Sound driver for Windows NT
[ nt4aud12_beta.zip, 208.18 KB, Jul.03.2018 ]
JIDA Lib Version for VxWorks 5.5 (Tornado 2.2).
[ jidavx55_i115.zip, 286.21 KB, Jul.03.2018 ]
Supplemental add-on
to the Windows NT Embedded Solution Pack. Includes non-essentials like the PowerPoint Viewer KDF.
[ ntspi211.zip, 2.86 MB, Jul.03.2018 ]
Windows® CE Driver Solution Pack 2.8
Supports CE 6.0 (incl. R3), 5.0 and 4.2. Please, contact your local Kontron sales representative for further information and the required installation key.
[ cespi128.zip, 9.51 MB, Jul.03.2018 ]
JIDA Lib Version for VxWorks 5.4 (Tornado 2.0)
[ jidavx54.zip, 125.26 KB, Jul.03.2018 ]
以太网驱动
Ethernet driver for Davicom DM9102(A). For QNX ve
Ethernet driver for Davicom DM9102(A). For QNX version 6.1‚ not applicable for verison 6.0
[ qnx100-6-1.zip, 0 B, Jul.03.2018 ]
Ethernet driver for Davicom DM9102(A); kernel 2.2
Ethernet driver for Davicom DM9102(A); kernel 2.2.x and 2.4.x.
[ mgxeth_l.zip-2, 35.55 KB, Jul.03.2018 ]
工具
Crisis Recovery Disk - Includes currently released BIOS flash tools and the latest released BIOS version. Please contact your local Kontron Support Team for special BIOS versions.
[ crd1bqg1r115.zip, 410.88 KB, Apr.10.2018 ]
Ethernet Remote Target Setup documentation.
Please contact your local Kontron sales repesentative for further information on how to order the actual software.
[ jerts.pdf, 34.67 KB, Nov.27.2013 ]
白皮书
JRex - JFLEX™ Compatibility Overview
[ overview_jrex_jflex_compatibility_dec_2004.pdf, 203 KB, Nov.27.2013 ]
应用说明
Restoring and updating of Phoenix BIOS on Standard Components
[ phlash_sc_e113.pdf, 129.32 KB, Nov.27.2013 ]
Linux-Installation-with-IDE-Flash
[ linux-installation-with-ide-flash_e111.pdf, 25.75 KB, Apr.20.2023 ]
Examples of JUMPtec® Remote Control (JRC) usage
[ jrcusage_e116.pdf, 121.28 KB, Jun.26.2020 ]
Extended temperature range and Kontron Embedded Modules GmbH boards
[ exttemp_e112.pdf, 47.07 KB, Nov.27.2013 ]
Darkboot Logo on Kontron Embedded Modules boards with Phoenix BIOS
[ darkboot.zip, 55.2 KB, Nov.27.2013 ]
应用案例
Application Story German
[ saw-xpin_jrex_ibox_d.pdf, 576.83 KB, Nov.27.2013 ]
JRex/JFLEX
[ saw_jrex-acd_d.pdf, 1.07 MB, Nov.27.2013 ]
JRex und JFLEX
[ saw_jrex-optibrand_d.pdf, 1.05 MB, Nov.27.2013 ]
x-pin.com identifies with JRex-IBOX
[ saw-xpin_jrex_ibox_e.pdf, 582.61 KB, Nov.27.2013 ]
Large scale operation of JRex and JFLEX
[ saw_jrex-optibrand_e.pdf, 986.35 KB, Nov.27.2013 ]
快速查询手册
JRex Power Consumption for JRex-PM, -VC, P3, -C3, -CE, -VE, GX1 -January 2007
[ jrex_power_consumption_e114.pdf, 88.17 KB, Nov.27.2013 ]
测试报告
JRex-GX1 Certificate
[ bqg1hx10.pdf, 119.53 KB, Nov.27.2013 ]
JRex-GX1 Test Report
[ bqg1hs10.pdf, 340.27 KB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|

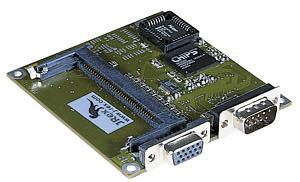

JFLEX-Visualisation1
02052-0000-11-0 |
|
JFLEX-Visualisation1 for 2nd CRT/LCD and COM | more |
|

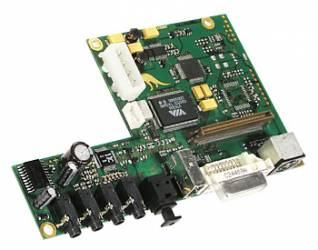

JFLEX-MULTIMEDIA
02051-1001-11-0 |
|
JFLEX-Multimedia, TVout, Sound (AC97, SPDIF), Firewire - cablefree | more |
|

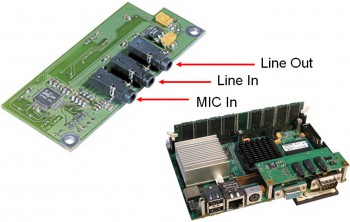

JFLEX™-SOUND1
02053-0000-01-0 |
|
JFLEX-Sound1为一款针对Jrex的声卡(AC97)模块，内部无任何电缆 | more |
|
KAB-FLOPPY-1
96018-0000-00-0 |
KAB-FLOPPY-1, Floppy Cable for FLOPPY-3,5 (Standard) | more | |
|
KAB-IDE-1
96022-0000-00-0 |
|
KAB-IDE-1, 40 pin 3.5" 硬盘 (2.54 mm) IDE线缆 | more |
|
KAB-PS/2Y-1
96001-0000-00-4 |
|
KAB-PS/2Y-1, Y线缆可使PS/2 键盘和鼠标同时使用 | more |
|
CFC-ADA-1
96004-0000-00-2 |
|
CFC-ADA-1是针对CF卡和Microdrive而设计的2.5寸转接器 | more |
|
CHIPDISK-ADA1
96004-0000-00-0 |
chipDISK-ADA-1, 2.5" size adaptor for IDE-chipDISK, w/ master/slave jumper | more | |
|

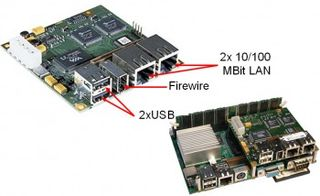

JFLEX™-COMMUNICATION1
02050-0001-22-0 |
|
JFLEX™-COMMUNICATION1 支持2个LAN,2个USB, Firewire | more |
|
CFC-192, COMPACT
08011-0192-00-0 |
|
CFC-192, Compact Flash 卡 Type I 192 MByte容量 | more |
|
CFC-16, COMPACT
08011-0016-00-0 |
CFC-16, Compact Flash Card Type I with 16 MByte | more | |
|
CFC-32, COMPACT
08011-0032-00-0 |
|
CFC-32, Compact Flash 卡 Type I 32 MByte容量 | more |
|
CFC-64, COMPACT
08011-0064-00-0 |
|
CFC-64, Compact Flash 卡 Type I 64 MByte容量 | more |
|
CFC-128, COMPACT
08011-0128-00-0 |
|
CFC-128, Compact Flash 卡 Type I 128 MByte容量 | more |
