/ FS3100

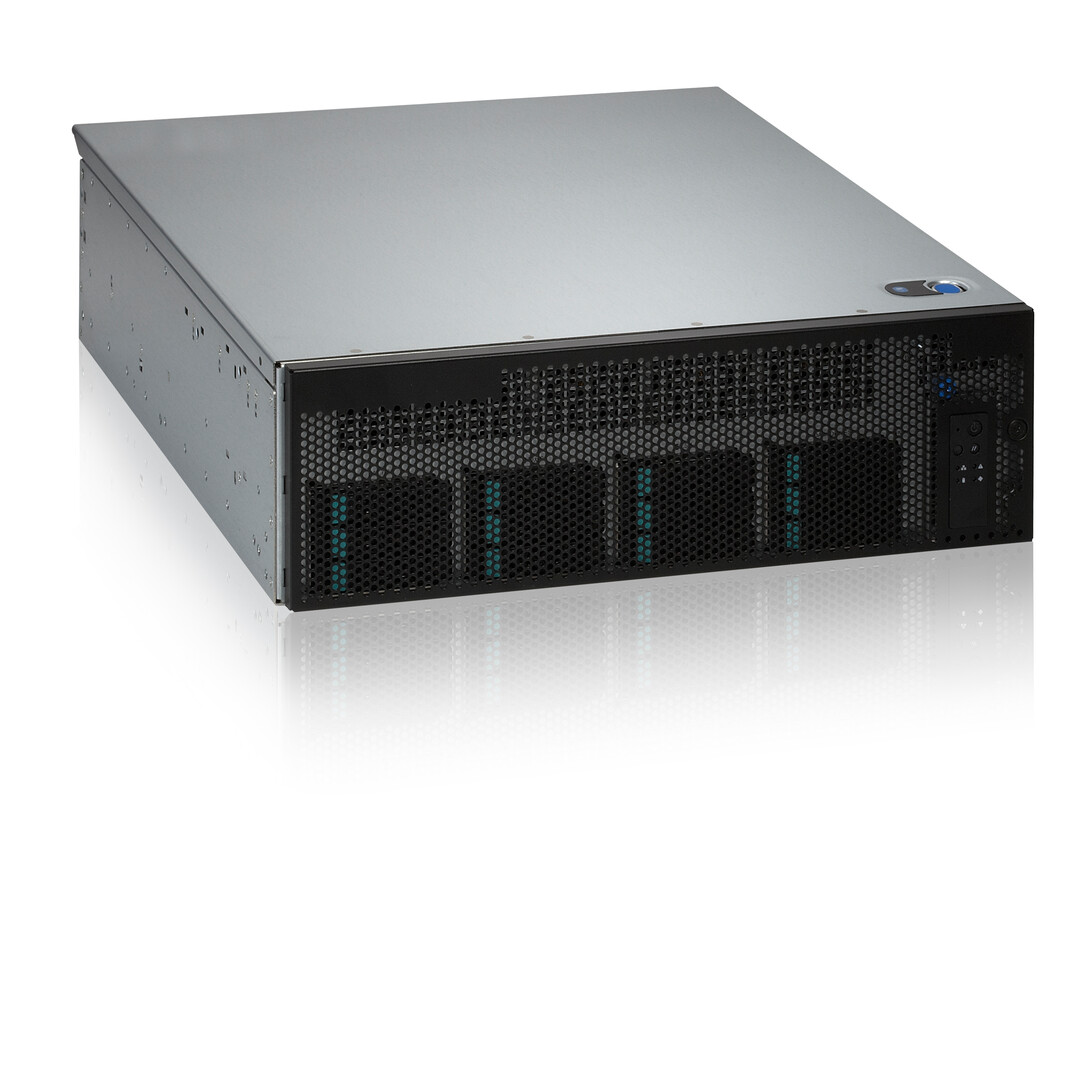

FS3100 This product is legacy
3U Flexible Platform
Specifications
- Dual socket support for six-core Intel® Xeon® Processors 5600 Series
- Supports up to 12x 2.5" hot swap SAS/SATA drives and (2) internal 2.5" SATA drives
- 12 x RDIMM/UDIMM memory slots (DDR3-800/1066/1333); maximum 96 GB memory
- Up to 8 FH/FL PCI-E slots
- Rear I/O: (1) serial, (4) USB 2.0, (2) GbE NIC ports, video, PS/2, HD audio
- Dual redundant AC or DC hot swap power supplies
- Multiple hardware RAID storage controller options based on 3rd party adapters
- Hot-swap, redundant power supplies and hard drives
Processing, Networking and Storage 3U, 20-inch depth Platform
The Kontron FS3100 is a versatile, multi-function storage and networking server in a 3U NEBS-compliant platform that is ideal for mission critical streaming media, lawful interception, and security/data storage applications.
Combining I/O capacity, storage adaptability, network port density and processor performance, the FS3100 is a compact 20” depth platform that solves many design and time-to-market issues for TEMs who need to deploy applications in space constraint networks.
Designing applications on a single Kontron FS3100 – instead of multiple specialized servers – dramatically accelerates design cycles and reduces the overall cost of ownership.
Designed to be telco-ready from the ground up, the FS3100 provides superior performance and functionality to capture, process and analyze massive amounts of data across telecom Central Office and carrier cloud computing environments.
Other applicable applications include content insertion, analysis and storage for network optimization and localized ad-distribution in streaming media applications.
Combining I/O capacity, storage adaptability, network port density and processor performance, the FS3100 is a compact 20” depth platform that solves many design and time-to-market issues for TEMs who need to deploy applications in space constraint networks.
Designing applications on a single Kontron FS3100 – instead of multiple specialized servers – dramatically accelerates design cycles and reduces the overall cost of ownership.
Designed to be telco-ready from the ground up, the FS3100 provides superior performance and functionality to capture, process and analyze massive amounts of data across telecom Central Office and carrier cloud computing environments.
Other applicable applications include content insertion, analysis and storage for network optimization and localized ad-distribution in streaming media applications.
