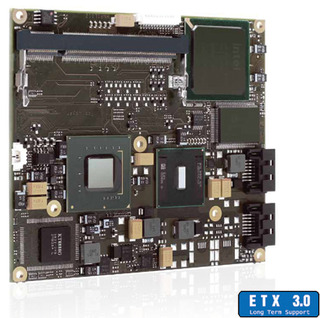

ETX®-DC This product is legacy
ETX®-DC 基于 Intel® Atom™ N270, 1.6 GHz, 512 kb L2 缓存, 24 bit LVDS
Specifications
- Intel® Atom™ N270 处理器
- 无风扇设计
- 2个Serial ATA 接口
- 支持Windows Vista®
ETX®-DC 在ETX 3.0规格上使用了最新的Intel® Atom™ N270 低功耗处理器
ETX®-DC模块将最新技术带入到广泛应用的 ETX® 3.0 规格之中。Intel® Atom™ N270 处理器具备最佳的能耗比，具备长期支持。 ETX®-DC 可作为您现有ETX® 设计的理想继任者。
具备出色的能耗比，12 W功耗的无风扇散热设计。在与Intel® Pentium® M 模块性能相同的情况下，极大程度地减少了能耗。同时也可显著提高EMV 以及 MTBF(平均无故障运行时间)。
Intel® 北桥 945GSE 可满足 ETX® 3.0 应用的接口需求。ISA等接口可以直接使用。使用最新的处理器和芯片组技术，支持 Windows Vista®
使用ETX®-DC, 您的基于ETX® 的设计可继续延续使用. 使用了最新的技术可帮助您的产品提升更高的价值。
由于8 bit 和24 bit LVDS板支持，ETX®-DC是ETX®-PM 和 ETX®-PM3的完美继承者。
ETX® 模块像组件一样, 插在特定的基板上使用. 模块通过表层接插、高密集度的接口与系统其他部分连接。
ETX® 模块具有可扩展性和可置换性, 使得快速开发嵌入式应用的半定制系统成为可能。
具备出色的能耗比，12 W功耗的无风扇散热设计。在与Intel® Pentium® M 模块性能相同的情况下，极大程度地减少了能耗。同时也可显著提高EMV 以及 MTBF(平均无故障运行时间)。
Intel® 北桥 945GSE 可满足 ETX® 3.0 应用的接口需求。ISA等接口可以直接使用。使用最新的处理器和芯片组技术，支持 Windows Vista®
使用ETX®-DC, 您的基于ETX® 的设计可继续延续使用. 使用了最新的技术可帮助您的产品提升更高的价值。
由于8 bit 和24 bit LVDS板支持，ETX®-DC是ETX®-PM 和 ETX®-PM3的完美继承者。
ETX® 模块像组件一样, 插在特定的基板上使用. 模块通过表层接插、高密集度的接口与系统其他部分连接。
ETX® 模块具有可扩展性和可置换性, 使得快速开发嵌入式应用的半定制系统成为可能。
Features
| CPU | Intel® Atom™ N270 with 1.6 GHz |
| Cache | 512 kB L2 Cache |
| Chipset | Intel® 945GSE, Intel® ICH7M |
| Main Memory | Up to 2 GB DDR2 (400/533) SO-DIMM |
| Hard Disk | 2 x SerialATA (AHCI) 2 x PATA |
| USB | 4 x USB 2.0, optional 2 x USB 2.0 onboard |
| PCI | PCI 2.3, 32 bit / 33 MHz |
| ISA | ISA Bus (ETX® 3.0 compliant) |
| Ethernet | 10/100 MBit Ethernet |
| Audio Controller | HDA Realtek ALC886GR |
| Graphics | Integrated with Intel® Graphics Media Accelerator (GMA950, DirectX® 9, PS 2.0), SDVO and TV out |
| Graphics Memory | Up to 224 MByte DVMT 3.0 |
| Resolution | LVDS: up to UXGA (1600 x 1200) CRT: up to QXGA (2048 x 1536) |
| Panel signal | LVDS Panel Support: Dual Channel LVDS 18 bit or 24 bit |
| Serial | 2 x Serial Port (TTL signal) |
| Parallel Port | Enhanced Parallel Port shared with Floppy Port |
| Special Features | Security Features: optional TPM 1.2 onboard |
| Common Features | JIDA Support, IrDA 1.1 enhanced, WakeOnLan, I²C Bus, Suspend States, DisplayID |
| Real Time Clock | Real Time Clock |
| Watchdog | Watchdog |
| Operating System | Windows® 7, Windows Vista®, Windows® XP, Windows® XP Embedded, Windows® CE, Linux, VxWorks and others |
| Compliance | ETX® 3.0 compliant |
| Dimensions (H x W x D) | 95 x 114 mm |
| Power Consumption | typ. Idle ~ 10.5 W |
| Temperature | Operating: 0° to 60°C Storage: -30° to 85°C * Ask about extended temperature ranges |
| Humidity | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
| Ethernet Controller | Intel® 82562V |
| Power Management | Power Management ACPI 2.0 (Advanced Configuration and Power Interface) |
Downloads
技术参数
ETX®-DC, Datasheet
候选发布版本(RC)
Datasheet for ETX®-DC with Intel® Atom™ N270 processor in 45 nm with Hyperthreading.
[ datasheet_etx-dc.pdf, 844.84 KB, Mar.23.2026 ]
参考手册
ETX-DC Manual
[ mnp1m118.pdf, 2.16 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
白皮书
ETX® Specification V3.02
Specification for ETX® Modules, V. 3.02
[ etxspecv3-02.pdf, 482.98 KB, Apr.20.2023 ]
ETX® Design Guide, Rev. 2.4
Kontron Design Guide for ETX® Modules, Document Revision 2.4
[ etxdesignguide124.pdf, 915.99 KB, Nov.26.2020 ]
The ETX® Evolution - Whitepaper
[ wp_etx-evolution_2006.pdf, 1.28 MB, Nov.27.2013 ]
Case Study: UL Certified COMs Deliver Quality
[ wp_ul_2007.pdf, 137.82 KB, Jun.26.2020 ]
应用案例
Computer On Modules Magazine - 2007
With high scalability and Value-Add Service
for your customized solution
[ computer_on_modules_brochure2007.pdf, 7.01 MB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
HSP-ETX®-DC, threaded 18039-0000-99-0 |
Heatspreader for ETX®-DC, threaded stand off | ||
|
Heatsink-ETX®-DC, threaded
18039-0000-99-0C01 |
Passive Heatsink for ETX®-DC, threaded 2,5mm corner standoff, without fan | more | |
|
DDR2-SODIMM-2GB Double
97011-2048-08-0 |
DDR2 SO-DIMM memory module with 2GB | more | |
|
ADA-ETX-CD-FC4
96006-0000-00-4 |
|
SDVO 转双 DVI-D 适配器 | more |
|
ADA-SDVOB-FC5
96006-0000-00-5 |
|
SDVO-to-DVI-D 适配器 | more |
|
ADA-SDVOB-FC5
96006-0000-00-5 |
SDVO to single DVI-D Adaptor for Feature Connector on ETX-CD and ETX-DC, SDVO_B to DVI converter CH7307, incl. 150mm FFC | more | |
|
ETX Mounting Kit 3mm 18017-0000-00-0 |
ETX Mounting Kit 3mm |
