ETX®-CD This product is legacy
ETX®-CD支持 Intel® Core™2 Duo 处理器
Specifications
- 高性能计算机模块
- Intel® 945GM 及 Intel® ICH7M 芯片组
- ETX® 3.0 - 长期支持
- 2个 SerialATA 接口
- 最高可支持 2 GB DDR2 SODIMM内存
符合 ETX® 3.0 标准，长期支持的最高性能计算机模块!

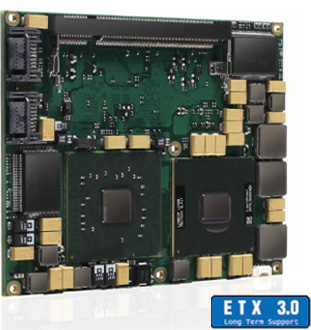

ETX®-CD 是基于ETX® 3.0 标准的最高性能模块产品。
全新 ETX®-CD 模块基于 Intel® Core™2 Duo 处理器，使用Intel 945GM 及 ICH7M 芯片组。ETX®-CD 在相同位置提供接口，保证日后升级便利，提供了良好的可扩展性。接口包括：PCI 2.3, USB 2.0, Serial ATA, Parallel ATA, LVDS 以及ACPI电源管理。
JILI 显示接口技术可根据显示屏自动进行设置。加载孔设计可保证模块对冲击和振动有良好的抵抗能力
全新 ETX®-CD 模块基于 Intel® Core™2 Duo 处理器，使用Intel 945GM 及 ICH7M 芯片组。ETX®-CD 在相同位置提供接口，保证日后升级便利，提供了良好的可扩展性。接口包括：PCI 2.3, USB 2.0, Serial ATA, Parallel ATA, LVDS 以及ACPI电源管理。
JILI 显示接口技术可根据显示屏自动进行设置。加载孔设计可保证模块对冲击和振动有良好的抵抗能力
Features
| CPU | Intel® Core™2 Duo with 1.5 GHz Intel® Core™ Duo up to 1.66 GHz Intel® Core™ Duo ULV U2500 1.2 GHz Intel® Celeron® M423 with 1.06 GHz Intel® Celeron® M440 with 1.86 GHz |
| Chipset | Intel® 945GM/945GME, Intel® ICH7M |
| Main Memory | Up to 2 GB DDR2 (400/533/667) SODIMM Memory |
| Hard Disk | 2x SerialATA (AHCI), 1x Parallel ATA 100 |
| USB | 4 x USB 2.0 |
| ISA | ISA Bus (ETX® 3.0 compliant) |
| PCI | PCI 2.3, 32 bit / 33 MHz PCI bus |
| Ethernet | 10/100 MBit Ethernet, Intel® 82562GZ |
| Graphics Controller | Integrated with Intel® Graphics Media Accelerator (GMA950, DirectX® 9, PS 2.0) up to 224 MByte DVMT 3.0 Dual Independent Display Support |
| Audio Controller | AC'97, Codec Crystal CS4299 |
| Serial | 2x Serial COM ports |
| Resolution | Resolution CRT: max. QXGA (2048x1536) Resolution LVDS: max. UXGA (1600x1200) |
| Real Time Clock | Real Time Clock |
| Parallel Port | EPP (Enhanced Parallel Port) shared with Floppy Interface |
| Common Features | K-station and JIDA Support, IrDA1.1 enhanced, WakeOnLAN, I²C Bus, E²PROM BIOS Setup, JRC support, Shared EPP / Floppy interface |
| Watchdog | Watchdog |
| Power Management | Power Management ACPI 2.0 (Advanced Configuration and Power Interface) |
| Darkboot/Lanboot | LAN Boot |
| Operating System | Windows Vista®, Windows® XP, Windows® XP Embedded, Windows® CE, Linux and others |
| Dimensions (H x W x D) | 95 x 114 mm |
| Power Consumption | typ. Idle 13,8 W @ Intel® Core™ 2 Duo processor L7400 LV, 5V |
| Temperature | Operation: 0° to 60°C Storage: -30° to 85 °C *Ask about extended temperature ranges |
| Humidity | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
| Compliance | ETX® 3.0 compliant |
Downloads
技术参数
Datasheet ETX-CD
候选发布版本(RC)
[ datasheet_etx-cd.pdf, 984.84 KB, Aug.31.2017 ]
参考手册
User's Guide ETX®-CD
[ mcalm130.pdf, 1.23 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
白皮书
ETX® Specification V3.02
Specification for ETX® Modules, V. 3.02
[ etxspecv3-02.pdf, 482.98 KB, Apr.20.2023 ]
ETX® Design Guide, Rev. 2.4
Kontron Design Guide for ETX® Modules, Document Revision 2.4
[ etxdesignguide124.pdf, 915.99 KB, Nov.26.2020 ]
The ETX® Evolution - Whitepaper
[ wp_etx-evolution_2006.pdf, 1.28 MB, Nov.27.2013 ]
Case Study: UL Certified COMs Deliver Quality
[ wp_ul_2007.pdf, 137.82 KB, Jun.26.2020 ]
应用案例
Computer On Modules Magazine - 2007
With high scalability and Value-Add Service
for your customized solution
[ computer_on_modules_brochure2007.pdf, 7.01 MB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
DDR2-800 SODIMM 512MB
97011-5120-08-0 |
DDR2 SDRAM, 200pin, Speed = 400MHz / DDR2-800 / PC2-6400 | more | |
|
DDR2-800 SODIMM 1GB Double
97011-1024-08-0 |
DDR2 SDRAM, 200pin, Speed = 400MHz / DDR2-800 / PC2-6400 | more | |
|
DDR2-SODIMM-2GB Double
97011-2048-08-0 |
DDR2 SO-DIMM memory module with 2GB | more | |
|
HSP-ETX®-CD threaded
18030-0000-99-0 |
Heatspreader for ETX®-CD threaded stand off | more | |
|
HSP-ETX®-CD through
18030-0000-99-1 |
Heatspreader for ETX®-CD through hole stand off | more | |
|

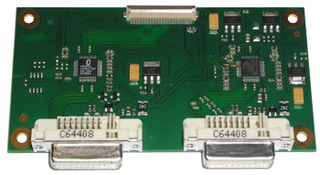

ADA-ETX-CD-FC4
