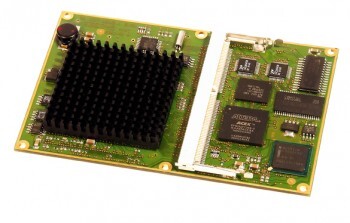

EB8245 This product is legacy
基于Freescale PowerPC MPC8245 处理器的计算机模块，具有极低的功耗
Specifications
- Freescale PowerPC MPC8245 @ 330MHz
- PCI 32bit，33MHz
- 最高支持512MB SDRAM，32MB Flash, 1MB SRAM
- 高速以太网 10/100Base-Tx
- 2×端口(Rx/Tx)
- 4×高速串口
- CAN接口(SJA 1000)
- 支持VxWorks和Linux
EB8245 采用低功耗 Freescale PowerPC MPC8245 处理器，无需特殊的散热装置。同时提供控制和通讯 I/O 口，如以太网， CAN ，高速串行数据 I/O 。 E²brain 模组以其小尺寸，低功耗，接口灵活的特点可以轻松地完成一个系统设计。它需要与特定的底板配合通过 4 个小巧的连接器将各信号引出，与底板上对应的插槽连接起来，从而从底板上来访问各个功能接口。.
可选 BrainCAP 散热片和EMI保护设备
板级支持包 (BSP) 现有Linux 及 VxWorks版本
更多信息请查阅 E²Brain 主页: www.e²brain.com
可选 BrainCAP 散热片和EMI保护设备
板级支持包 (BSP) 现有Linux 及 VxWorks版本
更多信息请查阅 E²Brain 主页: www.e²brain.com
Features
| CPU | Freescale MPC8245 |
| CPU Clock | 330 MHz |
| Cache | 16 kByte instruction, 16 kByte data |
| BIOS | Bootloader with Ethernet support |
| DRAM | Up to 512 MByte/SDRAM |
| DRAM socket | SO-DIMM |
| Flash | Up to 32 MByte |
| Ethernet | 100 Base-Tx Ethernet interfaces |
| Ethernet Controller | Intel® 82551 |
| Serial | Up to six high speed ports |
| I/O Features | PCI 32 Bit/33 MHz, LPC, I²C, CAN |
| Expansion | PCI, LPC, I²C |
| Power Consumption | 5 W |
| Additional | Passive cooling, RTC, Watchdog, extended temperature range, CompactFlash interface, CAN |
Downloads
技术参数
Datasheet
[ eb8245.pdf, 108.89 KB, Jan.09.2026 ]
E2Brain Board Layout
[ e2brain_manual_boardlayout.pdf, 58.85 KB, Jan.09.2026 ]
参考手册
Manual
[ eb8245_manual.pdf, 688.72 KB, Sep.11.2017 ]
Manual Errata 1
[ eb8245_manual_errata_1.pdf, 108.52 KB, Sep.11.2017 ]
E2Brain Module Specification
[ e2brain_manual_specification.pdf, 793.31 KB, Sep.11.2017 ]
Manual Errata 2
[ eb8245_manual_errata_2.pdf, 60.49 KB, Sep.11.2017 ]
Manual Errata 3
[ 26172_01_eb8245_errata_3.pdf, 19.36 KB, Sep.11.2017 ]
NetBootLoader User Guide
[ 1022-8317_20_sk-man-netbootloader.pdf, 473.06 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
白皮书
E2Brain White Paper
[ e2brain_whitepaper.pdf, 256.72 KB, Nov.26.2020 ]
Kontron COMs Withstand Heat and Harsh Environments
[ e2brain_whitepaper_etx.pdf, 39.15 KB, Nov.26.2020 ]
Case Study: UL Certified COMs Deliver Quality
[ wp_ul_2007.pdf, 137.82 KB, Jun.26.2020 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|

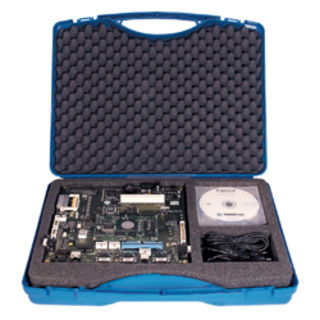

EB8245-EVALKIT
EB8245-EVALKIT |
|
EB8245评估板. 提供了采用MPC8245处理器的E2Brain系列模块使用的所有资源 | more |
