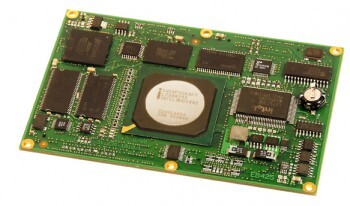

EB425 This product is legacy
基于 Intel XScale IXP425 的计算机模块，性能完备，具有多种通讯功能
Specifications
- Intel XScale Communication 处理器 IXP425
- 1MB SDRAM 可选
- PCI 32bit，66MHz
- 最高支持256MB固化SDRAM，最高32MB固化Flash
- 2×千兆以太网 及 UTOPIA
- 2×端口(Rx/Tx)
- 4×高速串口(2同步2异步)
- CAN接口可选
- USB 1.1接口
- 支持VxWorks和Linux
EB425 采用了 Intel Xscale® IXP425 处理器。 EB425 增强了性能和连通性，同时使功耗和发热达到了最小。 EB425 模块最大限度地为嵌入式通讯和工业控制应用中提供了所必需的系统功能。 E²brain 模组以其小尺寸，低功耗，接口灵活的特点可以轻松地完成一个系统设计。它需要与特定的底板配合通过 4 个小巧的连接器将各信号引出，与底板上对应的插槽连接起来，从而从底板上来访问各个功能接口。.
板级支持包 (BSP) 现有Linux 及 VxWorks版本
更多信息请查阅 E²Brain 主页: www.e²brain.com
板级支持包 (BSP) 现有Linux 及 VxWorks版本
更多信息请查阅 E²Brain 主页: www.e²brain.com
Features
| Ethernet | 2x 100 Base-Tx Ethernet interface |
| Additional | Passive cooling, RTC, Watchdog, extended temperature range, CompactFlash interface, CAN, Security engine |
| CPU | Intel® XScale IXP425 |
| CPU Clock | 533 MHz |
| Cache | 32 kByte instruction, 32 kByte data, 2 kByte mini-data |
| BIOS | Bootloader with Ethernet support |
| DRAM | 64/128/256 MByte/SDRAM |
| DRAM socket | Soldered |
| Flash | Up to 32 MByte |
| Ethernet Controller | Integrated |
| Serial | Up to six high speed ports and UTOPIA 2 (16 Bit) |
| I/O Features | PCI 32 Bit/33/66 MHz, LPC, I²C, CAN, UTOPIA 2 |
| Expansion | PCI, LPC, I²C |
| Power Consumption | 3 W |
Downloads
技术参数
E2Brain Board Layout
[ e2brain_manual_boardlayout.pdf, 58.85 KB, Jan.09.2026 ]
Datasheet
[ eb425_datasheet.pdf, 145.36 KB, Jan.09.2026 ]
参考手册
E2Brain Module Specification
[ e2brain_manual_specification.pdf, 793.31 KB, Sep.11.2017 ]
Manual EB420/425
[ eb425_eb420_manual.pdf, 926.26 KB, Sep.11.2017 ]
Manual Errata
[ eb425_eb420_manual_errata_1.pdf, 61.27 KB, Sep.11.2017 ]
NetBootLoader User Guide
[ 1022-8317_20_sk-man-netbootloader.pdf, 473.06 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
白皮书
Kontron COMs Withstand Heat and Harsh Environments
[ e2brain_whitepaper_etx.pdf, 39.15 KB, Nov.26.2020 ]
E2Brain White Paper
[ e2brain_whitepaper.pdf, 256.72 KB, Nov.26.2020 ]
Case Study: UL Certified COMs Deliver Quality
[ wp_ul_2007.pdf, 137.82 KB, Jun.26.2020 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|

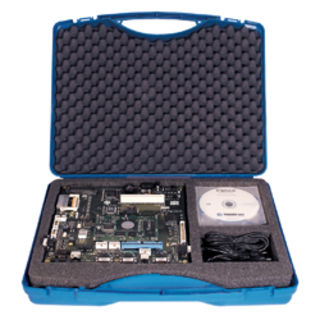

EB425-EVALKIT
EB425-EVALKIT |
|
EB425评估板. 提供了采用IXP420处理器的E2Brain系列模块使用的所有资源 | more |
