CRTtoLCD-2 (EOL) This product is legacy
Flatpanel Controller with analog RGB, DVI- and Video-Input (optional-TV-Tuner-Module); Resolution up to SXGA; (P/N 21012 with LVDS Output)
Specifications
- Easy connection of flatpanels (e.g. TFTs, Plasma) to standard VGA(15-pin), DVI and S-Video/Composite-Video interfaces
- Unparalled picture quality up to SXGA
- Integrated frame buffer for high sophisticated image adjustment and deinterlacing
- Standard Kontron panel interfaces:
- LVDS-JILI-interface up to 2x 24 Bit with automatic panel detection
- & LVDS-JILI40-interface up to 2 x24 Bit (also available with TTL Interface)
- Including MS-Windows based serial-OSD for configuration and adjustment
- Prepared for future upgrades of panel-file-database via webdownload
- Other version with TTL Output available
- Optional available as light-version without s-video and composite-video-in
Please Note: Product Status is End of Life (LTB March 31st 2006)
CRTtoLCD-2-JILI is a highly integrated TFT flat panel interface adapter that allows the use of standard VGA (15-pin), DVI & Video (NTSC/PAL/SECAM) sources with LVDS flatpanels. It includes all the necessary functionality to create a full featured TFT monitor. From a single 12V power supply, the CRTtoLCD-2 generates all the voltages required by a TFT panel and it includes power sequencing features and backlight support. Integrated frame buffering allows high sophisticated image adjustment and manipulation (e.g. zooming, freezing, flipping etc.).
The highly flexible architecture of the CRTtoLCD-2 panel interface allows it to adapt to virtually any TFT panel. A variety of cable adapter kits are available on request.
PLUG & DISPLAY!
Technical Data:
Analog-Input Features:
Analog RGB VGA up to SXGA 85Hz
Support for Sync On Green (SOG)
Support for composite sync modes
15 Pin standard VGA connector
Fully integrated 135MHz 8-bit triple-ADC,PLL and pre-amplifier
10-bit programmable gamma correction
All color depths up to 24-bits/pixel are supported
DVI-Input Features:
High Bandwidth Digital Content Protection
Video-Input Features:
S-Video or Composite Video Input
NTSC,PAL,SECAM
High-Quality Advanced Scaling
Independent horizontal /vertical zoom
Integrated On-Screen Display
5 button user interface
On Screen Display (OSD) control for all features
Auto-Configuration/Auto-Detection
Phase and image positioning
Input format detection
Display Interface Features:
backlight dimming support
JIPA (Digital RGB) panel interface up to 36-Bit
JILI (LVDS) panel interface (one and double port up to 24 Bit)
Dimension: width 119.5 mm, length 179.07 mm
The highly flexible architecture of the CRTtoLCD-2 panel interface allows it to adapt to virtually any TFT panel. A variety of cable adapter kits are available on request.
PLUG & DISPLAY!
Technical Data:
Analog-Input Features:
Analog RGB VGA up to SXGA 85Hz
Support for Sync On Green (SOG)
Support for composite sync modes
15 Pin standard VGA connector
Fully integrated 135MHz 8-bit triple-ADC,PLL and pre-amplifier
10-bit programmable gamma correction
All color depths up to 24-bits/pixel are supported
DVI-Input Features:
High Bandwidth Digital Content Protection
Video-Input Features:
S-Video or Composite Video Input
NTSC,PAL,SECAM
High-Quality Advanced Scaling
Independent horizontal /vertical zoom
Integrated On-Screen Display
5 button user interface
On Screen Display (OSD) control for all features
Auto-Configuration/Auto-Detection
Phase and image positioning
Input format detection
Display Interface Features:
backlight dimming support
JIPA (Digital RGB) panel interface up to 36-Bit
JILI (LVDS) panel interface (one and double port up to 24 Bit)
Dimension: width 119.5 mm, length 179.07 mm
Downloads
技术参数
CRTtoLCD-2-JILI Datasheet
[ datasheet_crttolcd23.pdf, 262.15 KB, Aug.31.2017 ]
参考手册
Manual CRTtoLCD-2 incl. OSD
[ crttolcd-2_m14.pdf, 476.9 KB, Sep.11.2017 ]
Screenclip "How to install new Panelfiles"
[ clip_new_panelfile_crt2lcd-2.mpg, 4.83 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
软件
Serial OSD
Tool to control the OSD via RS232.
For Windows 98/2000/XP
[ serialosd.zip, 101.76 KB, Nov.27.2013 ]
Panel Editor
[ pecrttolcd-2.zip, 144.98 KB, Nov.27.2013 ]
面板文件
Fujitsu FLC48SXC8V
[ flc48sxc8v.pnl, 512 B, Nov.27.2013 ]
AuO M190EN03
[ auo_m190en03.pnl, 512 B, Nov.27.2013 ]
Sharp LQ057Q3DC02
[ lq057q3dc02.pnl, 512 B, Nov.27.2013 ]
Chimei V296W1-L01
[ cmo_v296w1-l01.pnl, 512 B, Nov.27.2013 ]
LG LC201V1-A1SO
[ lc201v1-a1so.pnl, 512 B, Nov.27.2013 ]
Mitsubishi AA150XA01B
[ aa150xa01b.pnl, 512 B, Nov.27.2013 ]
Hosiden HLD 1509
[ hld1509-beta.pnl, 512 B, Nov.27.2013 ]
Samsung LTA320W1-L02
[ lta320w1-l02.pnl, 512 B, Nov.27.2013 ]
Samsung LTM150XH-T01
[ ltm150xh-t01.pnl, 512 B, Nov.27.2013 ]
Sharp LQ150X1DW11
[ lq150x1dw11.pnl, 512 B, Nov.27.2013 ]
Torisan TM396WX-71N31 (1280x768)
[ tm396wx-71n31.zip, 1.15 KB, Nov.27.2013 ]
LG LM181E1
[ lg_lm181e1.pnl, 512 B, Nov.27.2013 ]
Toshiba LTM08C351
[ ltm08c351.pnl, 512 B, Nov.27.2013 ]
NEC NL6448AC33-18
[ nl6448ac33-18.pnl, 512 B, Nov.27.2013 ]
NEC NL128102AC28-7
[ nl128102ac28-7.pnl, 512 B, Nov.27.2013 ]
Toshiba LTA065A041F
[ lta065a041f.pnl, 512 B, Nov.27.2013 ]
Toshiba LTM10C209A
[ ltm10c209a.pnl, 512 B, Nov.27.2013 ]
Sharp LQ181E1DG11
[ lq181e1dg11.pnl, 512 B, Nov.27.2013 ]
ChiMei M190E2-L01
[ chimei_m190e2-l01.pnl, 512 B, Nov.27.2013 ]
IBM ITSX98E
[ itsx98e.pnl, 512 B, Nov.27.2013 ]
NEC NL8060BC26-17
[ nl8060bc26-17.pnl, 512 B, Nov.27.2013 ]
AuO M190EN04
[ auo_m190en04.pnl, 512 B, Nov.27.2013 ]
Torisan TM121SV-02L07
[ tm121sv-02l07.pnl, 512 B, Nov.27.2013 ]
Samsung LTM121S1-T01
[ ltm121si-t01.pnl, 512 B, Nov.27.2013 ]
Torisan TM396WX-71N32
[ tm396wx-71n32.pnl, 512 B, Nov.27.2013 ]
LG Philips LB064V2-A1 for KAB-FLEX32-TVDD08
[ lb064v2-a1-v2.pnl, 512 B, Nov.27.2013 ]
Sharp LQ150X1DG11
[ lq150x1dg11v11.pnl, 512 B, Nov.27.2013 ]
IDTech (IBM) ITXG77
[ idtech_itxg77-2.pnl, 512 B, Nov.27.2013 ]
Unipac UB104S01-1
[ ub104s01-1.pnl, 512 B, Nov.27.2013 ]
Sharp LQ104S1DG21
[ lq104s1dg21.pnl, 512 B, Nov.27.2013 ]
Optrex T-51382D064J
[ t-51382d064j.pnl, 512 B, Nov.27.2013 ]
Sharp LQ150X1LGN2
[ lq150x1lgn2a.pnl, 512 B, Nov.27.2013 ]
LG. Philips LC300W01-A3(1280x768)
[ lc300w01-a3.zip, 1.17 KB, Nov.27.2013 ]
CPT CLAA150XA03
[ cla150xa03.pnl, 512 B, Nov.27.2013 ]
Chi Mei V201V-T01
[ v201v1-t01.pnl, 512 B, Nov.27.2013 ]
LG Philips LB121S1
[ lb121s1.pnl, 512 B, Nov.27.2013 ]
Auo A201SN02
[ a201s02.pnl, 512 B, Nov.27.2013 ]
应用说明
Application Note #1 December 2004
[ an_1_crttolcd.pdf, 71.23 KB, Mar.05.2021 ]
Regarding "Time Out" issue with Atmel-Flip - Programmer
[ an_2_crttolcd.pdf, 675.59 KB, Mar.05.2021 ]
Regarding "Time Out" issue with Atmel-Flip - Programmer
[ an_2_crttolcd.pdf, 675.59 KB, Mar.05.2021 ]
快速查询手册
Short guide which components are necessary to run a TFT with CRTtoLCD controllers?
[ an_comp_crttolcd_x.pdf, 581.19 KB, Aug.09.2021 ]
Quick Start
[ quickstart_panelfile_crttolcd-2_3.pdf, 233.9 KB, Nov.27.2013 ]
发布说明
#1_CRTtoLCD (all versions CRTtoLCD, -1,- 2)
[ pcn_crttolcd_01.pdf, 71.23 KB, Jul.03.2018 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|

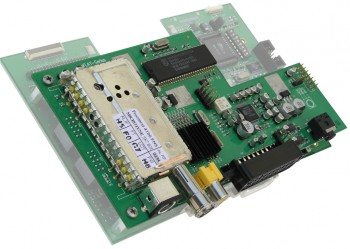

TV-Tuner (EOL)
|
|
TV-Tuner Module to be used in combination with P/N 21013 and 21014 | more |
