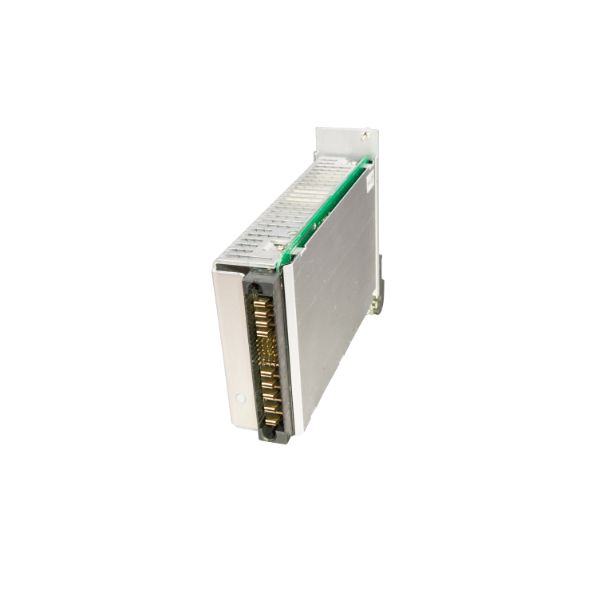

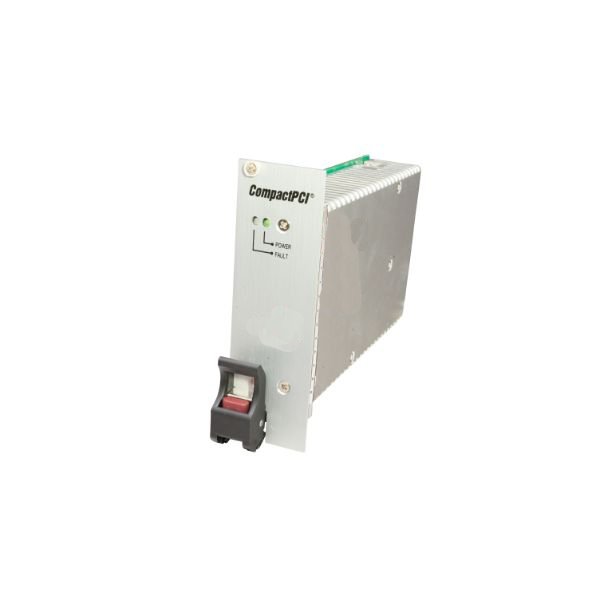

cPCI Serial 3U AC 300W

The cPCI Serial Power Supplies are highly reliable, plug-in power sources for state-of-the-art CompactPCI Serial systems designed by Hartmann Electronic

Specifications

Fully compliant with PICMG CPCI-S.0 specification
Single +12 V output rail plus 5 V standby
Wide AC input (90–264 VAC) with PFC
High efficiency (~90 % typical)
Compact 3U × 8HP plug-in format
Air cooling with minimum airflow requirement
Hot-swap capable and n+1 redundancy support

Download Datasheet

These CompactPCI Serial supplies support the PICMG CPCI-S.0 specification, offering modern serial-bus power architecture for embedded systems with high availability demands. Their single +12 V rail design, efficient AC input stage and robust plug-in form factor make them suitable for industrial, telecom and defense applications.

Features

Wide-range AC input (90–264 VAC) with PFC

Air-cooled 3U form factor (3U × 8 HP) depth 160 mm

Outputs: 12 V/25 A (300 W version) + 5 V Standby/2.5 A

Efficiency typical ~90% at 230 VAC

Operating temperature –40 °C to +70 °C (derated to 60%)

Storage temperature –40 °C to +85 °C

Connectors: FCI 51939-667LF (3U) or FCI 51940-473/473LF per spec.
