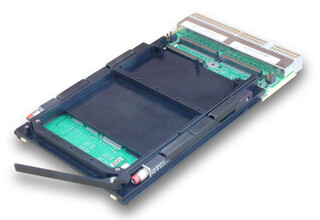

CP3210 This product is legacy
3U cPCI 强固式 PowerPC 单板机
Specifications
- IBM PowerPC 750FX 733MHz 处理器
- 可使用 cPCI 系统槽或扩展槽
- 强固式导冷设计
- 低功耗设计 典型功耗小于11W
- 512 MB DDR SDRAM
- 128 KB nvSRAM 支持实时时钟
- 256 MB 用户闪存
- 128 MB 系统闪存
- 支持多种操作系统
High Versatility with Low Power Consumption
CP3210 是控创强固式3U CompactPCI系列的最新产品
使用733MHz处理器、更快的DDR SDRAM (266 MHz + 33.3 %) 、系统及用户闪存容量翻倍、千兆以太网端口等特性使得具备卓越性能的控创 CP3210 CompactPCI® CPU板成为控创在军工嵌入式领域获得广泛应用的 PowerEngineC7 产品的增强版本。
使用733MHz处理器、更快的DDR SDRAM (266 MHz + 33.3 %) 、系统及用户闪存容量翻倍、千兆以太网端口等特性使得具备卓越性能的控创 CP3210 CompactPCI® CPU板成为控创在军工嵌入式领域获得广泛应用的 PowerEngineC7 产品的增强版本。
Features
| CPU | PowerPC 750FX |
| CPU Clock | 733 MHz |
| DRAM | 512 MB of DDR SDRAM with error correction (ECC) |
| DRAM speed | 266 MHz |
| Chipset | Discovery III Host Bridge |
| Characteristics | IBM PowerPC architecture, System or Peripheral slot, Low-power, Rugged Conduction-Cooled (-40°C to +85°C), Multiple Operating Systems |
| Ethernet | 1x 10/100/1000 Base-T, 1x 10/100 Base-T |
| Power Consumption | 11 W |
| Rear I/O | 46 I/Os PMC, 1x Ethernet 10/100/1000 & 1x Ethernet 10/100, asynchronous EIA-232, simplified synchronous EIA-422/485, 4x GPIO, JTAG |
| CPU L2 Cache | 512 KB |
Downloads
技术参数
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
CP3210 3U cPCI PowerPC - CP3210
[ cp3210.pdf-2, 228.87 KB, Aug.31.2017 ]
参考手册
CP3210 User's Guide
[restrictions apply]
[ cadta57.pdf, 2.49 MB, Sep.11.2017 ]
U-Boot User Manual for CP3210
[restrictions apply]
[ sddtf312e.pdf, 828.91 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
白皮书
Conduction Cooling Techniques for Rugged Computers
Conduction cooling for modular embedded computers have been used for many years in applications where air cooling is not appropriate. Standardization efforts in that domain have early helped to maitain interoperability of COTS products. The conduction cooled design techniques are continuously improving to meet the requirements for higher power dissipation and lower price.
[ whitepaper-conduction-cooling-techniques-for-rugged-computers_eng.pdf, 228.07 KB, Nov.27.2013 ]
技术信息
Download Request for patches and legacy FAQs access on our ftp site
[restrictions apply]
This file explains how download our patches for linux as well as legacy systems from our ftp web site. A folder containing our ancient FAQs has been done to let the customer consult the given hints concerning legacy Kontron modular computers boards and products.
[ ti08270_ftp_web_access.pdf, 16.19 KB, Nov.27.2013 ]
型录
Military Folder 2010
[ defense_global_2010.pdf, 701.33 KB, Jun.20.2023 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
