coolMONSTER/VC This product is legacy

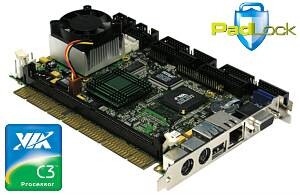

VIA C3 1.0GHz, PadLock engine, VIA Twister T chipset, 4xCOM, LAN, 32 MB VRAM, Sound, PISA

Specifications

VIA C3 1.0GHz processor, Twister T chipset
PadLock Data Encryption Engine
S3 Savage 4 graphics engine,with up to 32 MByte VRAM for CRT and LCD (JILI)
SDRAM-DIMM Socket for up to 1 GByte SDRAM
onboard 10/100 MBit Ethernet
4xCOM (1xswitchable to RS485)
Sound, LPT, FDC, USB, Keyboard, Mouse
LANBoot, DarkBoot, Watchdog, RTC
UDMA-100 EIDE, with 40pin and 44pin interfaces
See "Software & Drivers" under "Related Info" on side navigation bar for COOLMONSTER/VC Driver Archive

Download Datasheet

coolMONSTER/VC - with Padlock Data Encryption engine and S3 Savage 4 engine - for best Data Security and Graphic results.
Each coolMONSTER SBC is characterized by the same pinout for COM1-4,44-pin and 40-pin EIDE, LPT, FDC, Sound and IrDA. These homogeneous features facilitate easy upgrades within the coolMONSTER product family. Connection of displays is simplified when using these unites with their JILI-Interface (JUMPtec Intelligent LVDS Interface). It automatically recognizes which display is connected and independently sets all video parameters.
All coolMONSTER are plug-and-work enabled to further reduce time-to-market.
This VIA C3 processor on coolMONSTER/VC features the new PadLock engine therefore the coolMONSTER/VC is in fact the ideal solution for powering a new wave of innovation in secure, quiet running, small form factor PCs and digital entertainment devices.
coolMONSTER/VC will power the market with embedded security features that enhance the protection of sensitive corporate and personal data.

Downloads

技术参数

coolMONSTER/VC Datasheet PISA® Slot PC VIA C3
[ d_coolmonster-vc_pisa__sbc_with_via_c3.pdf, 106.27 KB, Aug.31.2017 ]

参考手册

coolMONSTER/VE/VC Manual PISA® Slot VIA Eden/C3
[ m_coolmonster_ve_vc_leuem117.pdf, 1.05 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

驱动程序

VGA controller driver
[ twnt4111009logo.zip, 929.27 KB, Jul.03.2018 ]

Davicom Ethernet Driver package
[ dm9102a_oemcd_v123.zip, 1.98 MB, Jul.03.2018 ]

Ethernet driver for Davicom DM9102(A)
[ qnx100-6-1-1.zip, 46.85 KB, Jul.03.2018 ]

Supplemental add-on
to the Windows NT Embedded Solution Pack. Includes non-essentials like the PowerPoint Viewer KDF.
[ ntspi211.zip, 2.86 MB, Jul.03.2018 ]

VGA controller driver
[ 1393621nohotkey.zip, 4.48 MB, Jul.03.2018 ]

Kontron Windows® XP Embedded Solution Pack
is an add-on to Microsoft Windows XP Embedded and its primary tool Target Designer. The solution pack includes Video Drivers, Ethernet Drivers and the JIDA32 Library API.
[ xpspi119.zip, 0 B, Jul.03.2018 ]

Intel® Network Adapter Driver - Win98
[ intel_network_adapter_driver_win98_v10-3.exe, 1.49 MB, Apr.20.2023 ]

JIDA Lib Version for VxWorks 5.5 (Tornado 2.2).
[ jidavx55_i115.zip, 286.21 KB, Jul.03.2018 ]

VIA 4 in 1 driver package
[ viahyperion4in1446vp6.exe, 1.38 MB, Jul.03.2018 ]

Windows® NT Embedded Solution Pack. Includes KDFs, Drivers and BSPs.
[ ntspi111.zip, 804.49 KB, Jul.03.2018 ]

Audio driver package
[ comboaudio_a1u350b.zip, 3.48 MB, Jul.03.2018 ]

VGA controller driver
[ 130049t9xmes3wishldlogo.zip, 5.02 MB, Jul.03.2018 ]

Windows® CE Driver Solution Pack 2.8
Supports CE 6.0 (incl. R3), 5.0 and 4.2. Please, contact your local Kontron sales representative for further information and the required installation key.
[ cespi128.zip, 9.51 MB, Jul.03.2018 ]

JIDA Lib Version for VxWorks 5.4 (Tornado 2.0)
[ jidavx54.zip, 125.26 KB, Jul.03.2018 ]

工具

Crisis Recovery Disk - Includes currently released BIOS flah tools and the latest released BIOS version. Please contact your local Kontron Support Team for special BIOS versions.
[ crd1leuer112.zip, 440.13 KB, Apr.10.2018 ]

白皮书

PISA®-Specification
[ pisad218.pdf, 326.25 KB, Nov.27.2013 ]

应用说明

ATX Power supply with PISA® Slot CPU cards
[ atxpwrslot_e111.pdf, 29.54 KB, Mar.05.2021 ]

Shareable interrupts on Kontron Embedded Modules GmbH boards
[ shareirq_e111.pdf, 97.57 KB, Nov.27.2013 ]

PISA® SLOT-CPUs and problems with PCI add-on cards
[ pisabackplanes_e112.pdf, 102.37 KB, Nov.27.2013 ]

Restoring and updating of Phoenix BIOS on Standard Components
[ phlash_sc_e113.pdf, 129.32 KB, Nov.27.2013 ]

Linux-Installation-with-IDE-Flash
[ linux-installation-with-ide-flash_e111.pdf, 25.75 KB, Apr.20.2023 ]

Examples of JUMPtec® Remote Control (JRC) usage
[ jrcusage_e116.pdf, 121.28 KB, Jun.26.2020 ]

I2C Bus on coolMONSTER/P3 and coolMONSTER/C3
[ i2cleu6_e610.pdf, 96.15 KB, Nov.27.2013 ]

I2C Bus on coolMONSTER, littleMONSTER2 and coolMONSTER/S
[ i2cleu2_3_e510.pdf, 100.96 KB, Nov.27.2013 ]

Extended temperature range and Kontron Embedded Modules GmbH boards
[ exttemp_e112.pdf, 47.07 KB, Nov.27.2013 ]

Darkboot Logo on Kontron Embedded Modules boards with Phoenix BIOS
[ darkboot.zip, 55.2 KB, Nov.27.2013 ]

Low level control of contrast and backlight on MOPSlcd6 and coolMONSTER/S
[ contrbackl_e111.pdf, 149.57 KB, Mar.05.2021 ]

ATX power supplies with SLOT-CPUs
[ atxpwrslot_e111.pdf, 29.54 KB, Mar.05.2021 ]

应用案例

Embedded Computer Technology in maritimen Fahrtenschreibern
[ saw-aida_coolmonster_de.pdf, 827.26 KB, Nov.27.2013 ]

Embedded Computer Technology in Maritime Recording Equipment
[ saw-aida_coolmonster_en.pdf, 825.84 KB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

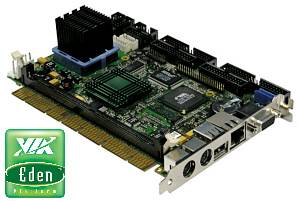

coolMONSTER/VE
07028-0000-30-1

VIA Eden 300MHz, VIA Twister T chipset, 4xCOM, LAN, 32 MB VRAM, Sound, PISA

CFC-16, COMPACT 08011-0016-00-0	CFC-16, Compact Flash Card Type I with 16 MByte	more
CFC-32, COMPACT 08011-0032-00-0	CFC-32, Compact Flash 卡 Type I 32 MByte容量	more
CFC-128, COMPACT 08011-0128-00-0	CFC-128, Compact Flash 卡 Type I 128 MByte容量	more
CFC-64, COMPACT 08011-0064-00-0	CFC-64, Compact Flash 卡 Type I 64 MByte容量	more
CFC-192, COMPACT 08011-0192-00-0	CFC-192, Compact Flash 卡 Type I 192 MByte容量	more
CFC-256 08011-0256-00-0	Compact Flash Card Type I with 256MByte (commercial temp range)	more
KAB-DSUB9-2 96017-0000-00-0	KAB-DSUB9-2, DSUB9 DSUB9 阳插头到 10 pin Header 线缆，DSUB COM 端口线缆	more
KAB-FLOPPY-1 96018-0000-00-0	KAB-FLOPPY-1, Floppy Cable for FLOPPY-3,5 (Standard)	more
KAB-IDE-25 96020-0000-00-0	KAB-IDE-25, 44 pin 2.5" 硬盘到 40 pin 3.5" Harddisk IDE适配线缆	more
KAB-IDE-2MM 96021-0000-00-0	KAB-IDE-2MM, MOPS IDE适配线缆 (2 mm to 2 mm; 44 pin)	more
CONV-RS485G 96014-0000-00-0	CONV-RS485G, RS232 到 RS485 , 光耦合转换	more
CFC-Eject 1 96066-0000-00-0	Compact Flash Card Type I with 16MByte (commercial temp range)	more
CHIPDISK-ADA1 96004-0000-00-0	chipDISK-ADA-1, 2.5" size adaptor for IDE-chipDISK, w/ master/slave jumper	more
KAB-SOUND-CMP 96063-0000-00-0	KAB-SOUND-CMP, Cable, one side open ends, other side 6 pin inline connector	more
SDRAM-DIMM-256MByte 97004-2560-00-0	SDRAM-DIMM memory module (168pin, PC100) with 256 MB	more
SDRAM-DIMM-512MByte 97004-5120-00-0	SDRAM-DIMM memory module (168pin, PC100) with 512 MB	more
KAB-DSUB25-1 96015-0000-00-0	Cable, 单端 DSUB25 内孔连接器，其它端 26 pin header - 用于 LPT	more

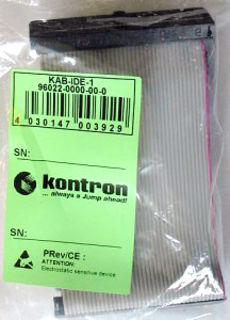

KAB-IDE-1 96022-0000-00-0	KAB-IDE-1, 40 pin 3.5" 硬盘 (2,54 mm) IDE线缆	more
