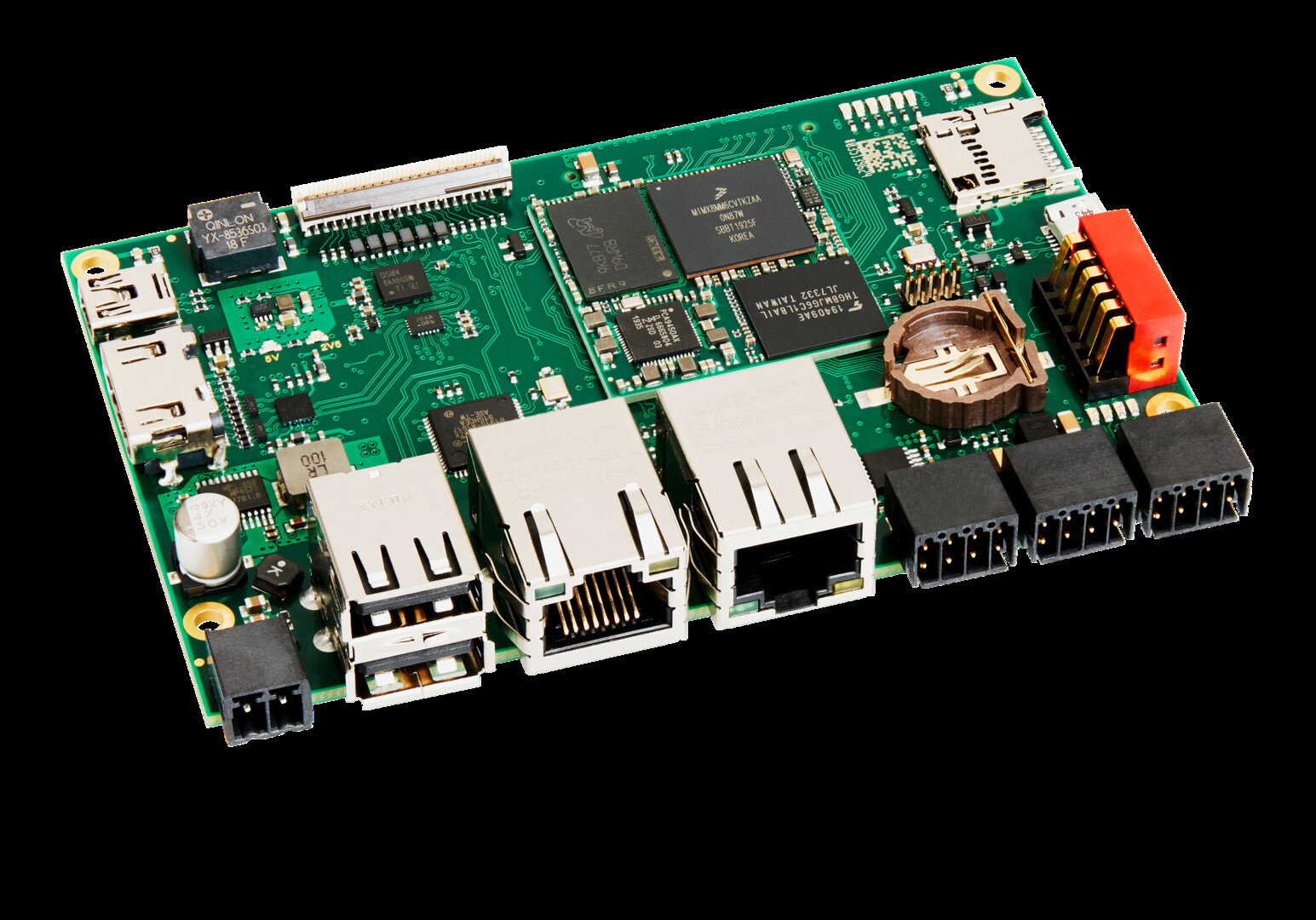

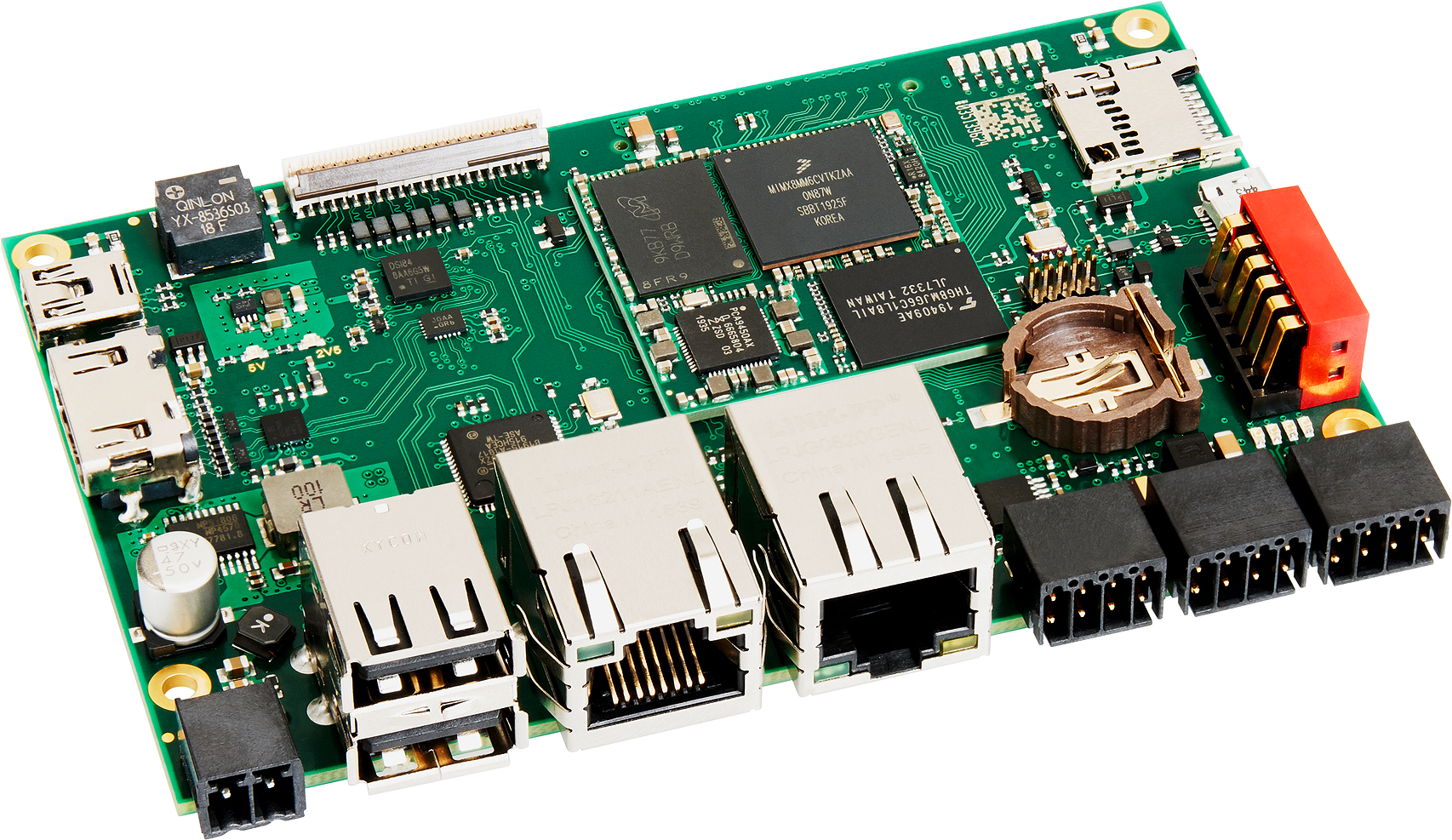

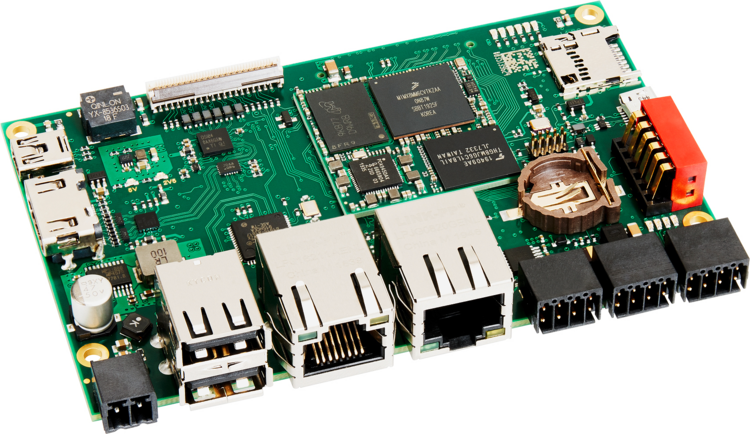

Baseboard BL i.MX8M Mini
Baseboard with high-efficiency processor provides maximum performance
Specifications
- NXP i.MX8M Mini, 4x Arm®Cortex®-A53 @1.6 GHz
- Up to 4 GB RAM, up to 64 GB eMMC, microSD card slot
- 2D GPU and 3D GPU
- HDMI, LVDS, I²C/USB Touch, Extension Interface
The BL i.MX8M Mini from Kontron Electronics impresses with its robust performance and versatility. Thanks to the integration of CODESYS® SoftSPS, users have access to comprehensive, practical solutions that make the planning and implementation of automation applications both efficient and convenient. System-on-Modules, single-board computers, rugged industrial PCs, and customized boards can be upgraded with single- or multi-core CODESYS® licenses.
Performance & Architecture
The BL i.MX8M Mini is equipped with a powerful quad-core Arm® Cortex®-A53 processor, clocked at 1.6 GHz. Modern DDR4 memory technology ensures fast and reliable data processing. The system is characterized by its short boot time. Optimized real-time performance guarantees high application performance, resulting in reduced cycle times and rapid, reliable controller response. This architecture is ideal for demanding automation tasks, real-time applications and high-quality visualization solutions.
Communication Interfaces
The BL i.MX8M Mini offers a comprehensive range of standard peripheral and communication interfaces. These include numerous digital I/Os, serial interfaces, PWM, two SDIO interfaces, as well as HDMI, LVDS and I²C/USB touch. This variety enables flexible connection to a wide range of industrial environments and ensures easy integration into existing systems.
Areas of Application & Benefits
By combining powerful hardware with the CODESYS® SoftSPS solution, the BL i.MX8M Mini is particularly well suited for industrial automation projects where reliability, real-time capability and high flexibility are required. The fieldbus protocols and cost-efficient licensing significantly reduce development effort and project risk. As a result, products can be brought to market much more quickly and efficiently.
Features
| CPU | NXP i.MX8M Mini 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU |
| LPDDR4-RAM | 4 GByte Options: 1 GByte / 2 GByte |
| NOR-FLASH | 2 MByte |
| eMMC | 32 GByte Option: 4 GByte / 64 GByte |
| SD CARD | 1x micro-SD Slot |
| NV MEMORY | 64kbit EERAM |
| Ethernet | 1x 1 Gbit/s, 1x 10/100 Mbit/s |
| USB | 2x 2.0 Host, 1x 2.0 OTG |
| DIO | 4x DIO (24 V/up to 800 mA) |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x CAN 2.0 B |
| LCD Interface | 1x HDMI, 1x LVDS, up to 1920 x 1080 @60fps |
| Touch | 1xI²C, 1x USB |
| Power Supply | 24 V DC ±20 % |
| Power Consumption | Linux running < 3 W |
| Temperature range | 0 °C…+55 °C |
| Operating System | Embedded Linux (Yocto Distribution) |
| Form Factor | 105,5 x 67 mm (4,3”) |
| RTC | 5ppm accuracy |
| RTC BUFFERING | CR1220 |
| Expansion Plugs | 1x I²C, 1x PCIe, 1x SPI, 1x SDIO 8 bit, 1x QSPI, 1x SAI, 1x USB Camera Interface 1x MIPI CSI (4-lane) |
| Audio | 1x Buzzer |
| Security | HAB Secure Boot, TrustZone, True RNG, RSA up to 4096, AES-128/192/256, 3DES, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG |
