AT8060 This product is legacy

10G ATCA 8-Core Xeon E5-2600 Series Processor Blade

Specifications

Dual Intel Xeon (up to 8-Core, 16T) Processors E5-2600 Series (16C, 32T per 2S E5 system)
Dual 8GT/s QPI interfaces between both processors for lowest PCIe and memory latency
Total of 128 GB Memory (Up to 64GB DDR3 on 4 DIMM per processor)
AMC bay with PCIe x8 Gen2 + SATA connectivity
Kontron Dynamic Power Management via Power Node manager
Integrated SAS and PCIe 3.0
Intel® Advanced Vector Extensions, Intel® Trusted Execution Technology, and Intel® AES New instructions
Rear Transition Module RTM8063 with 2 hot swap 2.5’’ SAS hard drives

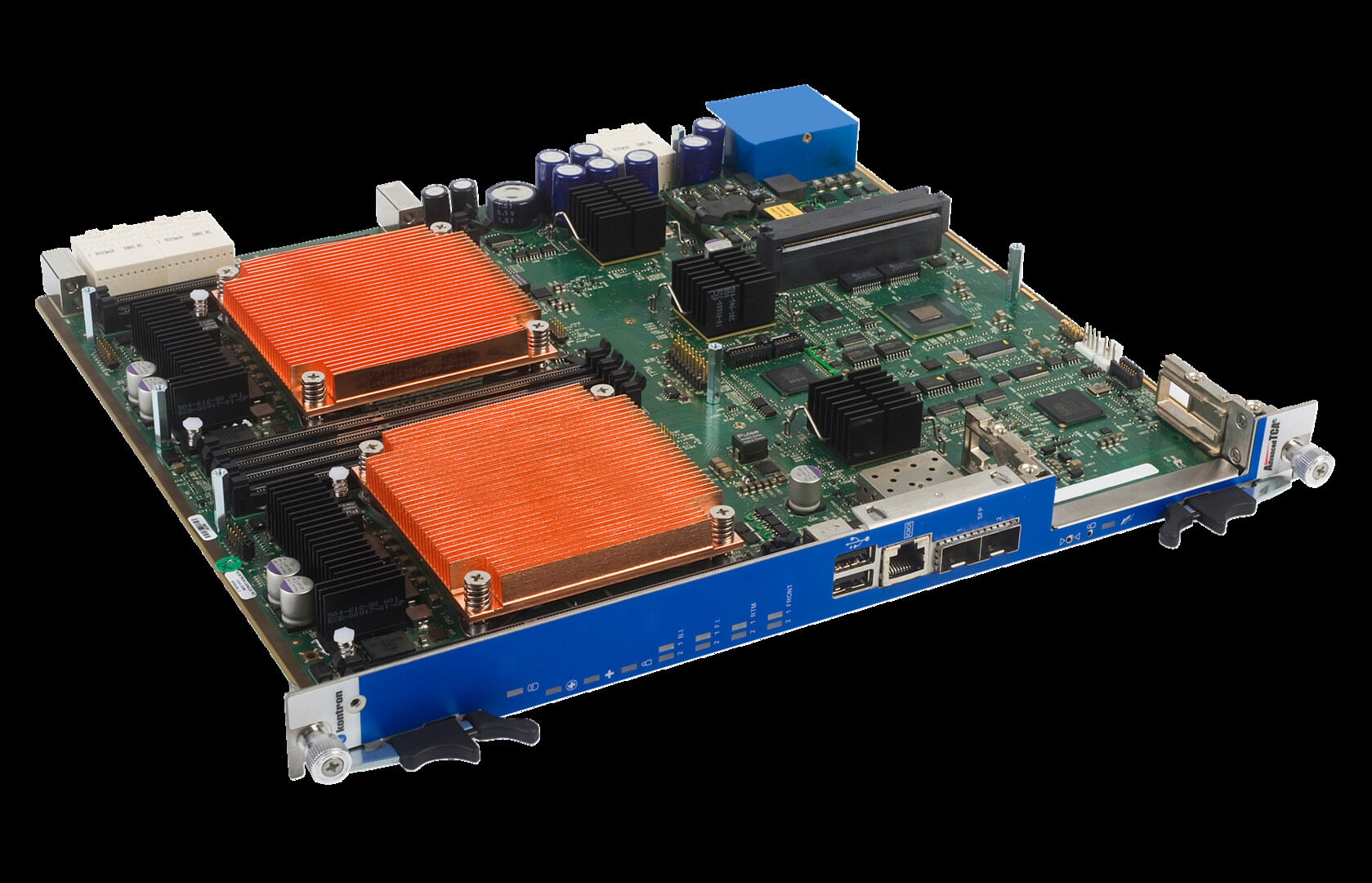

The Kontron AT8060 will represent its sixth-generation Intel-based AdvancedTCA® processor blade. It supports Dual Intel Xeon 8-Core, 16T Processors E5-Family Series (16C, 32T per 2S E5 system), and additionally features an AdvancedMC® slot for customization with other specialized AMCs including packet processing and storage modules.

Telecom, network and broadcast equipment vendors seeking new high performance system level designs will appreciate the boost in dual-socket, 8-core processing power complemented by value-added, intelligent features that include new Kontron client-controlled power management that optimizes performance within pre-set power consumption policies.

Downloads

技术参数

AM4320
AdvancedMC Dual 10G Module
[ cpbu_am4320_ds.pdf, 967.57 KB, Aug.31.2017 ]

AT8060 10G ATCA Processor Blade - Dual 8-Core Xeon E5-2600 Series
[ cpbu_at8060_v1-4_ds.pdf, 1.72 MB, Apr.20.2023 ]

参考手册

AT8060 Technical Reference Manual
[ t5008-manual-v1-2.pdf, 6.02 MB, Apr.20.2023 ]

RTM806x Technical Reference Manual
[ rtm806x_v1-0.pdf, 1.46 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

快速查询手册

RTM8066
[ rtm8066-v1-1.pdf, 535.5 KB, Nov.27.2013 ]

AT8060
[ t5008-at8060-v1-1.pdf, 839.82 KB, Apr.20.2023 ]
