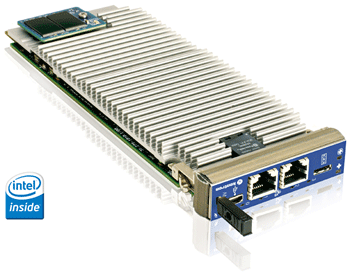

AM4011 This product is legacy
AdvancedMC 处理器模块，使用 Intel® Core2 Duo
Specifications
- 中长AMC 处理器模块
- Intel® Core2 Duo 1.5GHz
- 最高可达 4 GByte 内存(固化) 支持ECC 运行频率 400 MHz
- 通过板载 USB 2.0 Flash 控制器支持 8 GByte NAND 闪存
- 灵活的千兆以太网及 PCI-Express fabric 接口
- 极好的监视功能
- 兼容PICMG AMC.0/.1/..2/.3 标准
- 支持IPMI V1.5, SOL
高性能处理器AMC
AM4011 是一块在中长AdvancedMC (AMC)模块上集成的CPU板。设计基于 Intel® Core2 Duo 处理器，Intel® 3100 服务器级芯片组。
板载高达 4 GB DDR2内存支持错误校验 (ECC) 运行频率 400 MHz。通过两个双千兆以太网控制器（前面板2个，AMC口0/1各一)提供千兆以太网连接。每个连接通过Intel® 3100 芯片组 x4 lane PCI Express 内联以保证最大数据传输率。 AM4011通过板载 USB 2.0 Flash 控制器支持 8 GByte NAND 闪存。
专为高性能的包通讯系统而优化， 但AM4011并不局限于此领域中的应用，如电台网络控制器、流媒体服务、通讯流处理、数据库管理及路由等均适用。AM4011同样适用于工业环境及 I/O 需求突出的应用领域。严格的设计和抗高温组件的应用保证了产品的高可用性。联合高扩展性、高可靠性及稳定性，此款产品成为了需要长期寿命的嵌入式应用的理想选择。
AM4011 是一块在中长AdvancedMC (AMC)模块上集成的CPU板。设计基于 Intel® Core2 Duo 处理器，Intel® 3100 服务器级芯片组。
板载高达 4 GB DDR2内存支持错误校验 (ECC) 运行频率 400 MHz。通过两个双千兆以太网控制器（前面板2个，AMC口0/1各一)提供千兆以太网连接。每个连接通过Intel® 3100 芯片组 x4 lane PCI Express 内联以保证最大数据传输率。 AM4011通过板载 USB 2.0 Flash 控制器支持 8 GByte NAND 闪存。
专为高性能的包通讯系统而优化， 但AM4011并不局限于此领域中的应用，如电台网络控制器、流媒体服务、通讯流处理、数据库管理及路由等均适用。AM4011同样适用于工业环境及 I/O 需求突出的应用领域。严格的设计和抗高温组件的应用保证了产品的高可用性。联合高扩展性、高可靠性及稳定性，此款产品成为了需要长期寿命的嵌入式应用的理想选择。
Features
| Chipset | Server-class chipset Intel® 3100 |
| Compliance | PICMG: AMC.0 R2.0 / AMC.1 / AMC.2 / AMC.3; Support for IPMI 1.5, SOL |
| Connectivity | AMC System Interconnect: 2x GbE , 1x PCI-Express x4, 4x SATA, COM2 |
| CPU | Intel® Core™ 2 Duo, 1.5 GHz |
| DRAM | Up to 4 GByte registered DDR2 400 MHz with ECC |
| Flash | Up to 8 GByte NAND Flash |
| Form Factor | Single module, mid-size |
| Front Side Bus | 667 MHz |
| CPU L2 Cache | 4 MByte |
| Frontpanel | 2x GbE, 1x USB 2.0, 1x COM(mini 8-pin), 4 Control/Status LEDs (bi color) |
| Graphics | - |
| Options | - |
Downloads
技术参数
AM4011 Datasheet
[ am4011_datasheet.pdf, 1.67 MB, Aug.31.2017 ]
BSP for Wind River Linux
[ dat_lin_bsp_wr_pramc_i3100_r10_01.pdf, 467.65 KB, Aug.31.2017 ]
参考手册
AM4011 Hardware Introduction Manual
[ 1022-1626_20_sk-man-am4011_introduction.pdf, 179.27 KB, Sep.11.2017 ]
BIOS Manual
[ 1022-2060_20_sk-man-bios-am4010_am4011_am5010.pdf, 1 MB, Sep.11.2017 ]
AM4011 User Manual
[restrictions apply]
[ 1022-1626_20_sk-man-am4011.pdf, 685.65 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
BIOS
Firmware Update CD-ROM FWUPD-AM4011 R16
[restrictions apply]
By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Content of the Update CDROM:
- BIOS R24 (Firmware-Hub toggling supported via IPMI OEM command)
- IPMI Firmware R14
- GbE 0100
MD5: 8f5219d3a32d160d5df358273eee2362
[ sk-lin-app-fwupd-am4011-r16.iso, 12.08 MB, Mar.24.2014 ]
Linux
BSP for Wind River Linux 3.0 / 64 Bit
[restrictions apply]
BSP for Wind River Linux 3.0 / 64 Bit
md5sum: ab95e0147be81009e14b3bd399bb2e04
[ lin-bsp-wr30-pramc-i3100-64-r10.zip, 91.7 MB, Nov.27.2013 ]
BSP for Wind River Linux 3.0 / 32 Bit
[restrictions apply]
BSP for Wind River Linux 3.0 / 32 Bit
md5sum: c142a48db85db6ad0536a353f3d0fa99
[ lin-bsp-wr30-pramc-i3100-r10.zip, 89.35 MB, Nov.27.2013 ]
Linux BSP for Processor AMCs with i3100 chipset (AM4010,AM4011,AM5010)
This BSP support recent Redhat and OpenSuSE distributions (Refer to the contained READMEs for more details)
[ lin26_bsp_pramc3100-r10-tar.bz2-3, 1.75 MB, Apr.20.2023 ]
