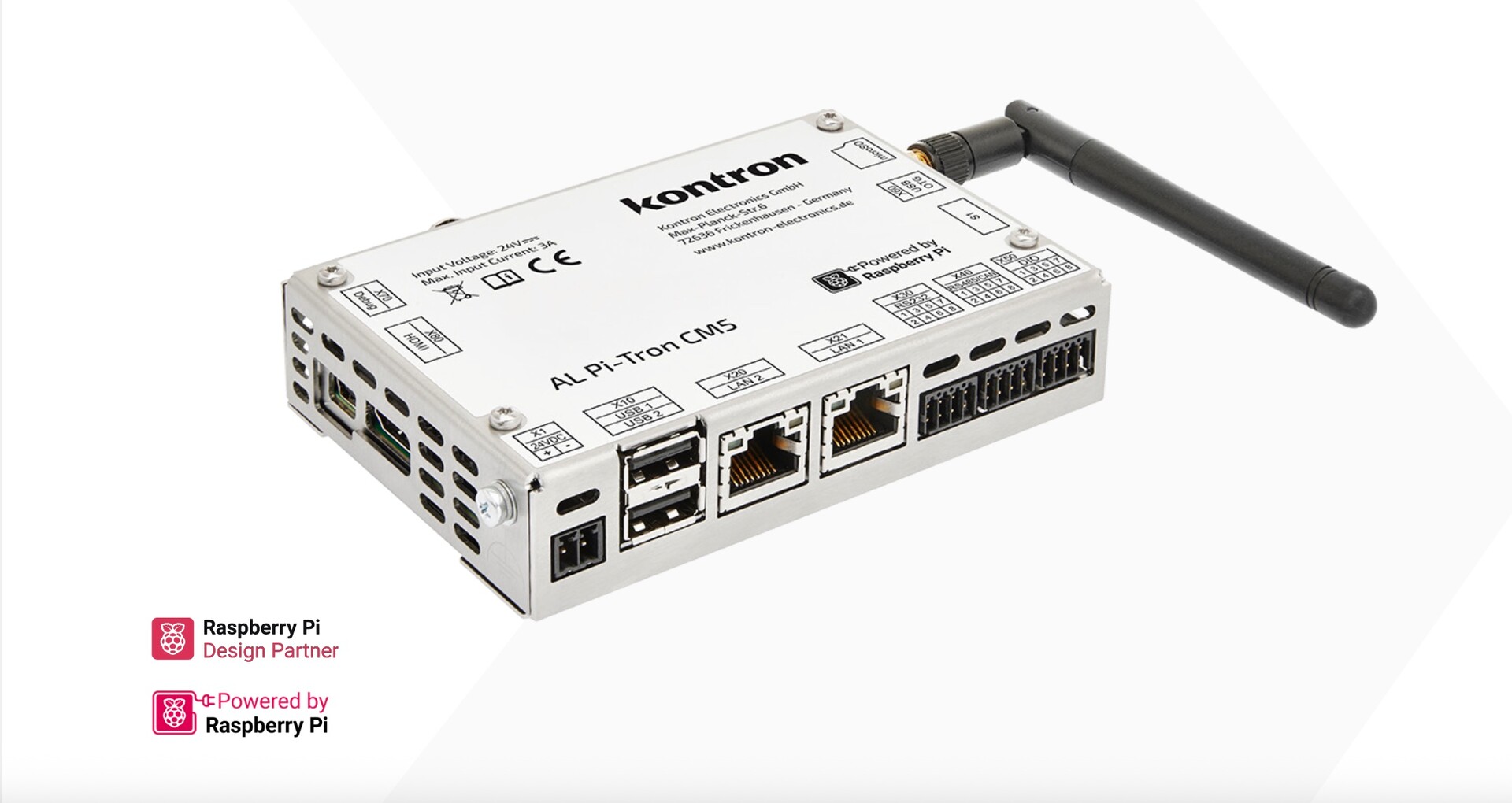

AL Pi-Tron CM5
Compact, high-performance Box PC for DIN rail mounting
Specifications
- Broadcom BCM2712, 4x Arm® Cortex® -A76 @2.4 GHZ
- Operating System Raspian Linux
- Stainless steel housing 111 x 25 x 76 mm, mounting on 35 mm DIN rail
- Robust, fanless housing
Product Information
The AL Pi-Tron CM5 from Kontron Electronics is a compact, high-performance Box PC designed for DIN rail mounting. It is based on the BL Pi-Tron CM5 single board computer with a Raspberry Pi Compute Module 5 and features a robust stainless-steel housing for easy integration into industrial control systems.
Performance & Architecture
Equipped with a Broadcom BCM2712 processor, 4x Arm® Cortex®-A76 at 2.4 GHz, and up to 16 GB LPDDR4 RAM, the industrial Box PC delivers high computing power for demanding applications. The integrated FRAM memory ensures data integrity and operational reliability, even in the event of a power failure. The system is designed to run Raspbian Linux; however, the operating system is not pre-installed at the factory. Additionally, the device supports HDMI output up to 4K as well as optional expansions via multifunction I/O modules.
Communication Interfaces
The AL Pi-Tron CM5 comes standard with numerous interfaces: 2x Ethernet (1 Gbit/s, 100 Mbit/s), 2x USB 2.0 host, 1x USB 2.0 OTG for programming the eMMC, RS232, RS485, CAN 2.0B/FD, as well as 4 digital I/O. Optional features include WLAN (2.4 GHz / 5 GHz) and Bluetooth 5.0, providing flexible and customizable connectivity.
Fields of Application & Advantages
Typical applications include automation, control technology, IoT gateways, industrial communication, edge computing, and mechanical engineering. The advantages are the compact design, expandability, powerful performance at an attractive price, and an active community with numerous software examples.
Features
| CPU | Broadcom BCM2712 4x Arm® Cortex®-A76 @2.4 GHz, 4Kp60 HEVC decoder, OpenGL ES 3.1 Grafik, Vulkan 1.3 |
| LPDDR4-RAM | 2 GByte optional 4 GByte, 8 GByte (16GB) 16 GByte (64GB) |
| SD CARD | 1x microSD Card Slot for data |
| FRAM | 32 kByte |
| Ethernet | 1x 1 Gbit/s, 1x 10/100 Mbit/s |
| USB | 2x 2.0 Host, 1x 2.0 OTG: only for programming eMMC |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x CAN 2.0B/FD |
| DIO | 4x DIO (24 V/up to 800 mA) |
| WLAN/Bluetooth | 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless BT 5.0, BLE |
| LCD Interface | 1x HDMI 2.0 (up to 4Kp60) |
| Power Supply | 24 V DC ±20 % |
| Power Consumption | TBD |
| Form Factor | Stainless steel housing 111 x 25 x 76 mm for mounting on 35 mm DIN rail acc. EN 60715 |
| Temperature range | TBD |
| Protection Class | IP20 |
| Approvals | CE |
| Operating System | Raspbian Linux (not preinstalled) |
| RTC BUFFERING | CR2032 |
| Debug | 1x Console |
