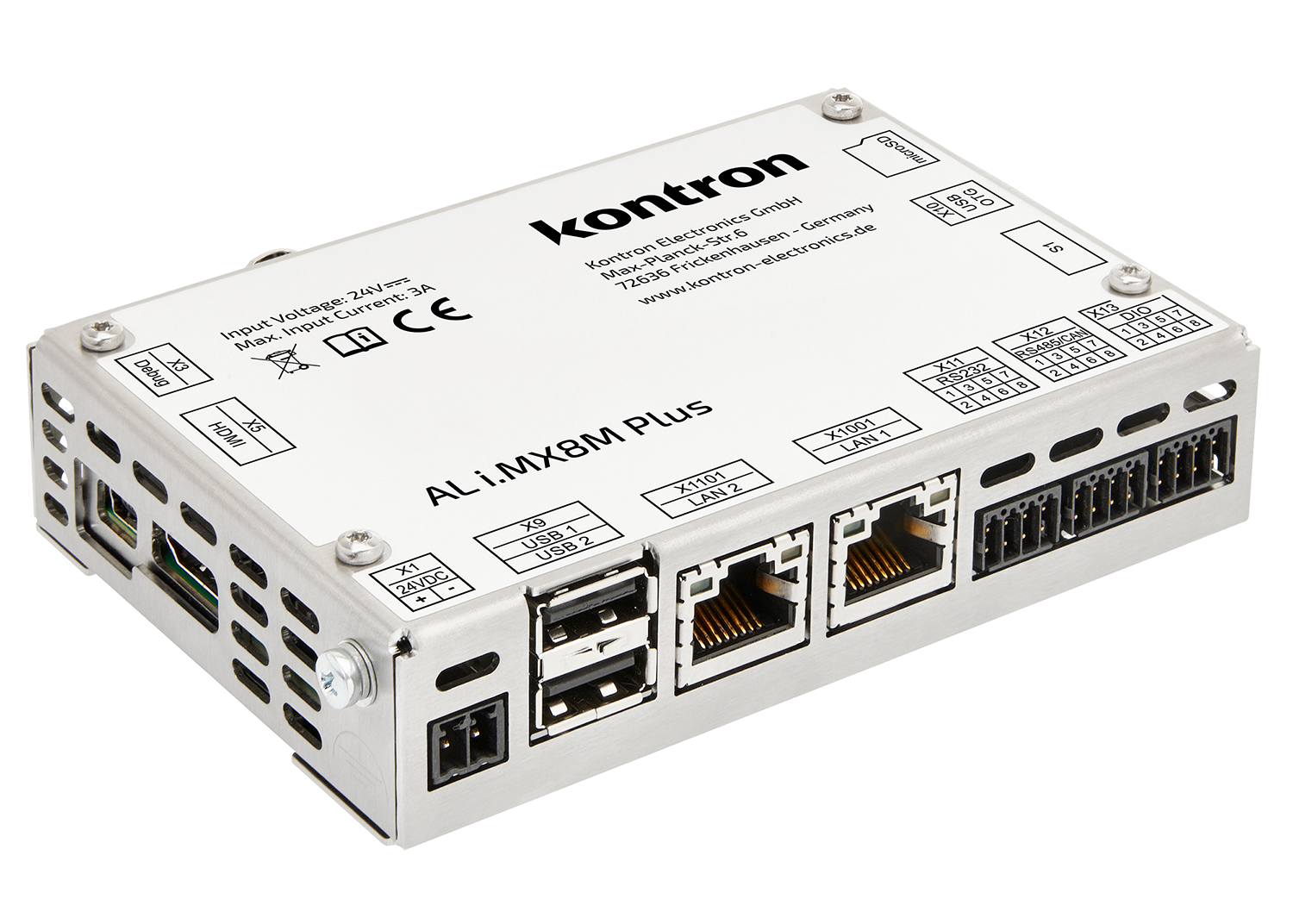

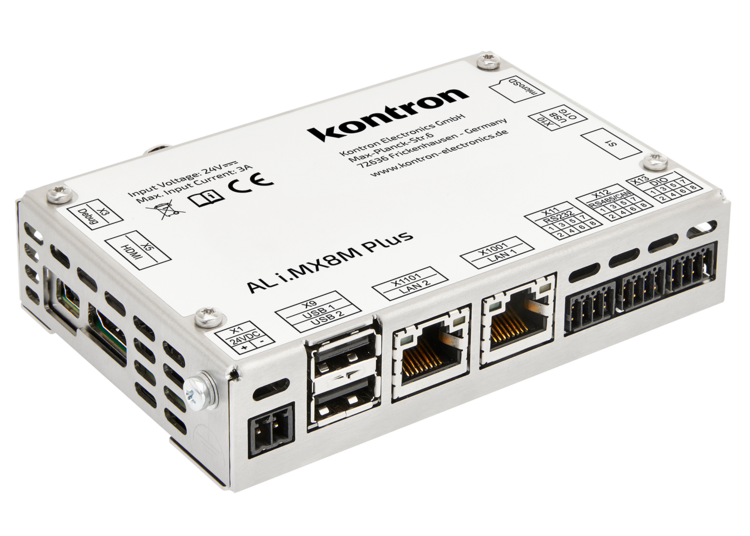

AL i.MX8M Plus
Compact, fanless Box PC for AI, Automation and IoT Applications
Specifications
- NXP i.MX8M Plus, 4x Arm® Cortex®-A53 @1.6 GHz with Neural-Processing-Unit (NPU)
- Operating System Embedded Linux (Yocto Distribution)
- Stainless steel housing 111 x 25 x 76 mm, mounting on 35 mm DIN rail
- Robust, fanless enclosure
Product Information
AL i.MX8M Plus from Kontron Electronics impresses with its compact, fanless design and flexible DIN rail mounting. The platform is modularly expandable via multifunctional I/O modules and offers excellent value for money.
Performance & Architecture
The Automation-Line AL i.MX8M Plus is based on NXP i.MX8M Plus SoCs, featuring a quad-core Arm® Cortex®-A53 and an Arm® Cortex®-M7 for real-time applications. With up to 8 GB of LPDDR4 RAM and an integrated NPU delivering 2.3 TOPS, it enables demanding AI and machine learning applications as well as high-performance control tasks.
Communication Interfaces
The Box PC offers numerous connectivity options, including dual Gigabit Ethernet with TSN, CAN-FD, HDMI 4K, LVDS, MIPI CSI for displays and cameras, as well as USB 3.0 Type-C. Up to 16 I/O modules can be controlled via the CAN bus.
Fields of Application & Advantages
The AL i.MX8M Plus is ideally suited for AI at the edge, automation, IoT gateways, mechanical engineering, control, and visualization solutions. Users benefit from flexible expandability, easy integration, and high performance in control cabinets and industrial environments.
Features
| CPU | NXP i.MX8M Plus, 4x Arm® Cortex®-A53 @1.6 GHz 1x Arm® Cortex®-M7 @800 MHz, 2D GPU and 3D GPU, NPU (2.3 TOPS) |
| LPDDR4-RAM | 4 GByte (Optional: 1...8 GByte) |
| eMMC | 32 GByte (Optional: 4...128 GByte) |
| EEPROM | 8 kB (64 kb) |
| SD CARD | 1x microSD Card Slot |
| NV MEMORY | 8 kB (64 kb) EERAM |
| Ethernet | 2x 1 Gbit/s |
| USB | 2x USB 2.0 Host, 1x USB 3.0 Type-C |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x CAN FD |
| DIO | 4x DIO (24 V / up to 800 mA) |
| LCD Interface | 1x HDMI (up to 4Kp30) |
| Operating System | Embedded Linux (Yocto Distribution) |
| Bootloader | U-Boot |
| Power Supply | 24 V DC ±20 % |
| Temperature range | 0 °C … +55 °C, ambient, non-condensing |
| Cooling | fanless, passiv |
| Form Factor | Stainless steel 111 x 25 x 76 mm for mounting on 35 mm DIN rail acc. EN 60715 |
| RTC | 5 ppm accuracy |
| RTC BUFFERING | CR 1220 |
| Debug | 1x Console |
| Audio | 1x Buzzer |
| Protection Class | IP20 |
| Approvals | CE |
| Security | HAB Secure Boot, TrustZone, True RNG, RSA up to 4096, AES-128/192/256, 3DES, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG |
