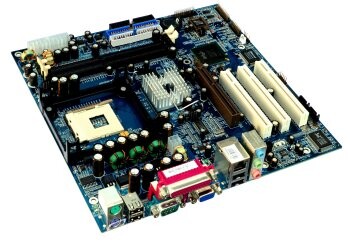

886LCD/ATXU(GV) This product is legacy
长期支持的Pentium 4 嵌入式Micro-ATX 主板，提供LCD显示选项
Specifications
- 支持Intel Pentium 4 , Celeron D 以及 Celeron 的Socket-478插槽
- Intel 845GV + ICH4
- Intel 图形芯片，最高 64 MB VRAM
- 通过附加 ADD Card (LVDS & DVI)提供平板显示支持
- 支持 Serial ATA150 RAID 0/1
- 2个 ATA100
- DDR266 SDRAM, 2槽最大支持 2GB 内存
- 2个 RS232c
- 6个 USB2.0
- 1个 10/100 Base-T Ethernet
- 3个 PCI master 插槽
- AC97 声卡及游戏接口
长寿命嵌入式Micro-ATX主板
886LCD/ATXU(GV)是配备Pentium4 , Celeron 或 Celeron D 的嵌入式micro-ATX 主板，使用Intel 845GV + ICH4嵌入式芯片组。 同时可通过可选 ADD-LVDS(#820935)或ADD-DVI-I/CRT(#820942)卡支持数字LCD显示
此款产品也是Intel 845系列Micro-ATX主板的理想替代产品，以适应需要更高寿命的工业需求。
此款产品也是Intel 845系列Micro-ATX主板的理想替代产品，以适应需要更高寿命的工业需求。
Downloads
技术参数
886LCD/ATX(GV) datasheet
[ 886lcd_atx_gv.pdf, 211.42 KB, Aug.31.2017 ]
参考手册
KTD-00647 886LCD/ATX-GV, ATXU-GV User Manual
[ ktd-00647-f-886lcd-atx-gv-atxu-gv-user-manual.pdf, 1.11 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
BIOS
BIOS for 886LCD/ATX(GV) -/ATXU(GV) Ver. 0.17 DOS
DOS and Windows XP/2K tool and BIOS package
[ gvb17.zip, 694.04 KB, Nov.27.2013 ]
BIOS Tools Package v6.5
(Included BF.exe updated 09-03-2011)
[ bios-tools-package-v6-5.zip, 2.5 MB, Apr.20.2023 ]
板卡支持包
886LCD-ATX-GV & ATXU-GV XPe BSP jan-2006 (8.4MB)
[ 886lcd-atxatxu_gv_xpe_bsp_jan-2006.zip, 8.79 MB, Nov.27.2013 ]
KTD-00658 886LCD/ATX-GV & 886LCD/ATXU-GV XPE Support Application Note
[ ktd-00658-0_886lcd-atxatxu-gv_xpe_support_application_note.pdf, 92.16 KB, Nov.27.2013 ]
芯片组驱动
886LCD/ATXU(GV) - /ATX(GV) Chipset Driver
[ 886lcd-gv_chipset.zip, 1.98 MB, Jul.03.2018 ]
以太网驱动
886LCD/ATXU(GV) -/ATX(GV) LAN Driver for Solaris
[ 886lcd-gv_lan_solaris.zip, 28.1 KB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) LAN Driver for Linux
[ 886lcd-gv_lan_linux.zip, 25.25 KB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) LAN Driver for Ndis2
[ 886lcd-gv_lan_ndis2.zip, 23.89 KB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) LAN Driver for Novell Server
(OS 6.x, 5.x, 4.11, 4.1, 3.12)
[ 886lcd-gv_lan_novellserveros6-x-5-x-4-11-4-1-3-12.zip, 61.81 KB, Apr.20.2023 ]
886LCD/ATXU(GV) -/ATX(GV) LAN Driver for Odi
[ 886lcd-gv_lan_odi.zip, 29.3 KB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) LAN Driver for DOS
[ 886lcd-gv_lan_dos.zip, 40.06 KB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) LAN Driver for Windows
[ 886lcd-gv_lan_windows.zip, 3.55 MB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) LAN Driver for VxWorks
[ 886lcd-gv_lan_vxworks.zip, 65.02 KB, Jul.03.2018 ]
音频驱动
886LCD/ATXU(GV) -/ATX(GV) Audio Driver for Linux
[ 886lcd-gv_audio_linux.zip, 3.81 MB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) Audio Driver for Windows
Driver version A376
[ 886lcd-gv_audio_winall_a376.zip, 17.77 MB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) Audio Driver for WinNT4
Driver version A376
[ 886lcd-gv_audio_winnt4_a376.zip, 7.94 MB, Jul.03.2018 ]
视频驱动
886LCD/ATXU(GV) -/ATX(GV) Graphic Driver for WinNT
Driver version 41361
[ 886lcd-gv_graphic_winnt_41361.zip, 7.6 MB, Nov.27.2013 ]
886LCD/ATXU(GV) -/ATX(GV) Graphic Driver for Win9x
Driver version 1361
[ 886lcd-gv_graphic_win9x_1361.zip, 7.35 MB, Nov.27.2013 ]
886LCD/ATXU(GV) -/ATX(GV) Graphic Driver for Win2k-XP
Driver version 14103
[ 886lcd-gv_graphic_win2k-xp_14103.zip, 6.13 MB, Nov.27.2013 ]
软件
886LCD/ATXU(GV) -/ATX(GV) Intel Application Accelerator for Win2K-XP
[ 886lcd-gv_intel_application_accelerator_win2k-xp.zip, 1.92 MB, Nov.27.2013 ]
DirectX 9.0c
[ directx9-0c.zip, 35.07 MB, Apr.20.2023 ]
工具
startdrv.reg for API in Admin Rights
[ startdrv.zip, 280 B, Nov.27.2013 ]
线缆规格
PN 1022-2381 821402 USB Bracket GV
[ 1022-2381-821402-usb-bracket-gv.pdf, 242.88 KB, Oct.26.2023 ]
技术信息
KTD-00643 RoHS - ECN
[ ktd-00643-0_rohs_-_ecn.pdf, 47.26 KB, Nov.27.2013 ]
KT Conformance RoHS
[ kt_conformance_rohs.pdf, 65.77 KB, Jun.26.2020 ]
应用说明
KTD-00687 886LCD/ATXU-GV Power Supply Characteristics
[ ktd-00687-0886lcd-atxu-gv_power_characteristics.pdf, 44.72 KB, Nov.27.2013 ]
KTD-00620 BIOS defaults
[ ktd-00620-cbiosdefaultsapplicationnote.pdf, 43.08 KB, Nov.27.2013 ]
KTD-00572 Info Header Description
Describes the information available in the Info Header (located in BIOS).
[ ktd-00572-cintegratedinfoheaderapplicationnote.pdf, 220.64 KB, Nov.27.2013 ]
机械图纸
KTD-00663 886LCD-ATX&ATXU_IO_Bracket_Drawing
[ 886lcd_atxatxu_io.pdf, 26.37 KB, Nov.27.2013 ]
KTD-00662 886LCD-ATXU-GV_Drawing_Metric (1.5MB)
[ 886lcd_atxu-gv_drawing_metric.pdf, 1.51 MB, Nov.27.2013 ]
KTD-00661 886LCD-ATXU-GV_Drawing_Inches (1.5MB)
[ 886lcd_atxu-gv_drawing_inches.pdf, 1.57 MB, Nov.27.2013 ]
RAID驱动
886LCD/ATXU(GV) -/ATX(GV) RAID Driver for Linux
[ 886lcd-gv_raid_linux.zip, 6.13 MB, Jul.03.2018 ]
886LCD/ATXU(GV) -/ATX(GV) RAID driver for Java on SATA in Windows GUI
Version 1.22
[ 886lcd-gv_raid_java_sata_windows_gui_v1-22.zip, 20.41 MB, Apr.20.2023 ]
886LCD/ATXU(GV) -/ATX(GV) RAID Driver for Windows
[ 886lcd-gv_raid_windows.zip, 138.4 KB, Jul.03.2018 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|
Accessory Kit for 886LCD/ATX (GV) Family
826588 |
|
1条 UDMA100 IDE 线缆, 1条 DMA33 IDE 线缆, 2条 SATA 线缆, 1条串口线缆, 1条全区线缆, 1条 USB Bracket线缆, 1张驱动光盘 | more |
|
Socket 478 Pentium4 cooler
823130 |
|
高质量 Pentium4/Celeron CPU 散热器 | more |
|
ADD-LVDS
820935 |
|
ADD卡为主板提供额外LVDS 支持 | more |
|
ADD-DVI-I/CRT
820942 |
|
小型 ADD DVI 卡支持额外内置 CRT 输出 | more |
