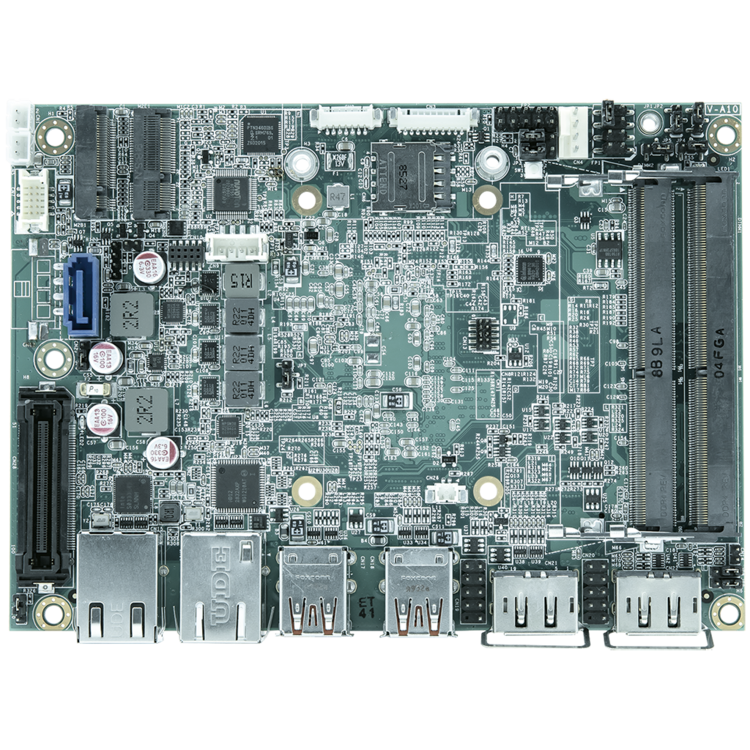

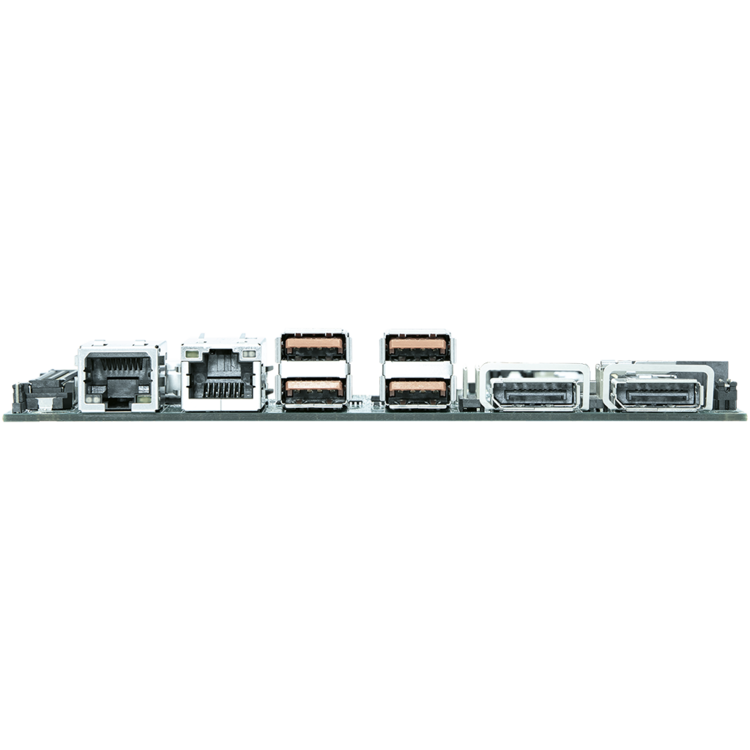

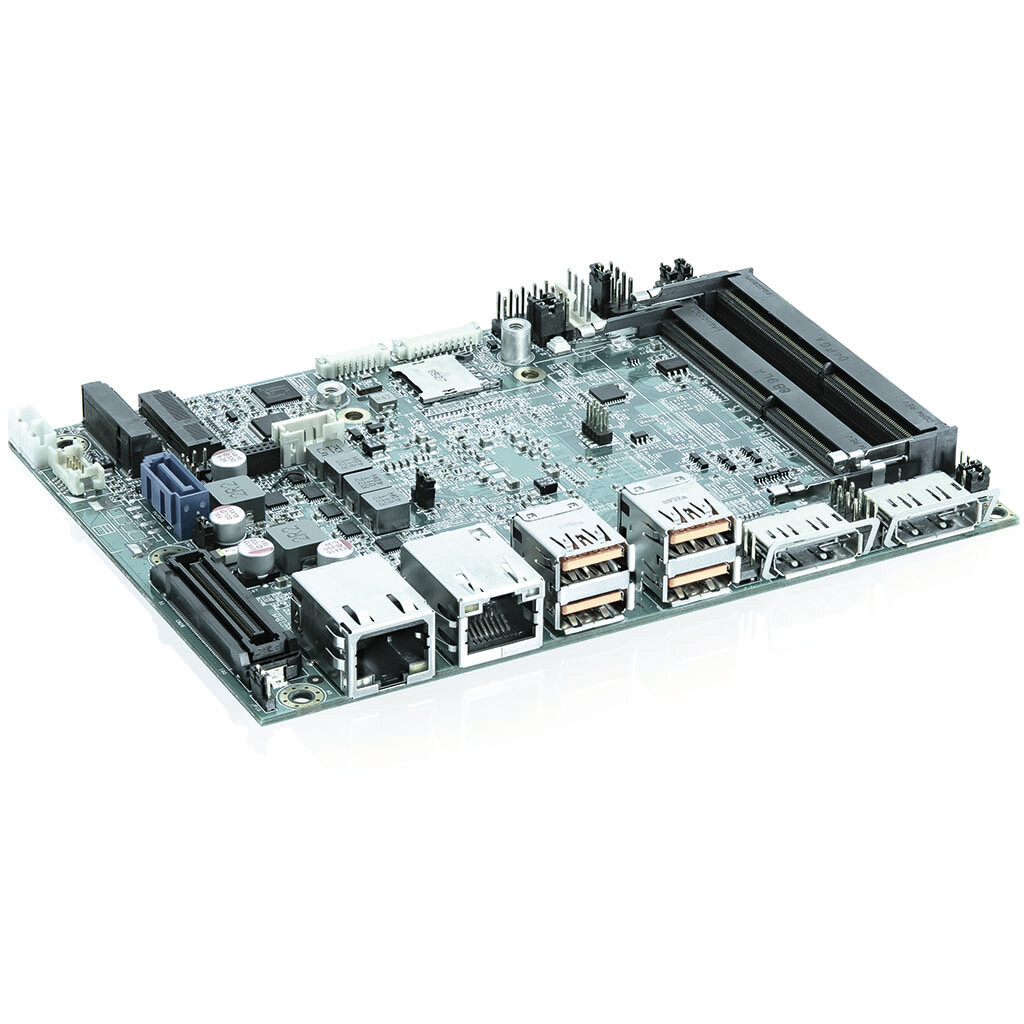

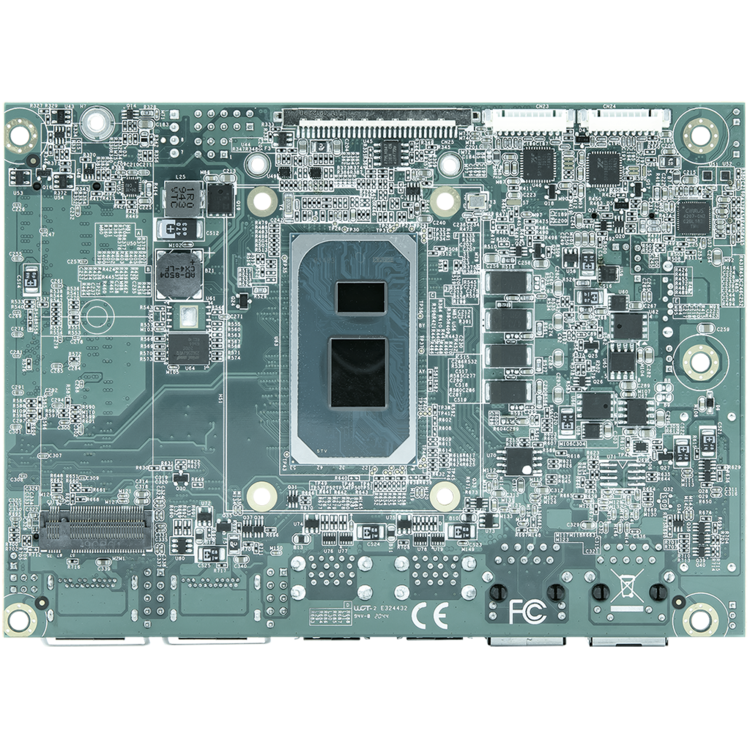

3.5"-SBC-TGL-6-i5-1145G4E

Intel® Core™ i5-1145G7E, without B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C

Specifications

Intel® Core™ i5-1145G7E
w/o B2B connector
w/ vPro
Operating temperature: 0 °C ~ 60 °C

Download Datasheet

Dramatic Leap in Graphics Performance

Intel® Core™ i5-1145G7E, w/o B2B connector, w/ vPro, Operating temperature: 0 °C ~ 60 °C

Downloads

Use Cases

技术参数

3.5"-SBC-TGL Datasheet
Revision 20240820, August 20, 2024
[ 3d5-sbc-tgl-datasheet-20240820.pdf, 1.12 MB, Aug.20.2024 ]

参考手册

3.5"-SBC-TGL User Guide
Revision 2.6, February 25, 2026
[ kontron-3d5-sbc-tgl-user-guide-rev-2d6-2026-02-25.pdf, 1.93 MB, Mar.09.2026 ]

3.5"-SBC Copper Pillar, Thermal Solution & eIO Installation Guide
Revision 1.0, April 14, 2025
[ 3d5-sbc-copper-pillar-thermal-solution-eio-installation-guide-rev-1d0-2025-04-14.pdf, 594.85 KB, Apr.18.2025 ]

3.5"-SBC M.2 Module Installation Guide
Revision 1.0, March 31, 2025
[ 3d5-sbc-md2-installation-guide-rev-1d0-2025-03-31.pdf, 119.86 KB, Apr.18.2025 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

快速查询手册

3.5"-SBC-TGL Quick Installation Guide
Revision 1, May 19, 2022
[ kontron-3d5-sbc-tgl-qig-20220519.pdf, 869.46 KB, May.19.2022 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

3.5”-SBC-TGL-0-i5-1145G7E		Intel® Core™ i5-1145G7E, B2B connector, vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C.
3.5”-SBC-TGL-1-i3-1115G4E		Intel® Core™ i3-1115G4E, B2B connector, vPro Bios, TDP 12W, Operating temperature: 0 °C ~ 60 °C
3.5”-SBC-TGL-2-i7-1185G7E		Intel® Core™ i7-1185G7E, B2B connector, vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C
3.5”-SBC-TGL-3-6305E 43017-0000-18-2		Intel® Celeron® 6305E, B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C
3.5”-SBC-TGL-4-i7-1185GRE-XT		Intel® Core™ i7-1185GRE, B2B connector, vPro Bios, TDP 15W, Operating temperature: -20 °C ~ 70 °C
3.5”-SBC-TGL-5-i5-1145GRE-XT		Intel® Core™ i5-1145GRE, B2B connector, vPro Bios, TDP 15W, Operating temperature: -20 °C ~ 70 °C
3.5"-SBC-TGL-6-i5-1145G4E	$3.5\$	Intel® Core™ i5-1145G7E, without B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C
3.5"-SBC-TGL-7-i3-1115G4E	$3.5\$	Intel® Core™ i3-1115G4E, without B2B connector, without vPro Bios, TDP 12W, Operating temperature: 0 °C ~ 60 °C
3.5"-SBC-TGL-8-i7-1185G7E	$3.5\$	Intel® Core™ i7-1185G7E, without B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C
3.5"-SBC-TGL-9-6305E	$3.5\$	Intel® Celeron® 6305E, without B2B connector, withou vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C

Accessories

3.5" Extended I/O Board (3.5"-eIO-GPA-0) 1069-6159	$3.5\$	2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C	more
3.5" Extended I/O Board (3.5"-eIO-GPA-1) 1069-6922	$3.5\$	2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C	more
3.5" Extended I/O Board (3.5"-eIO-GPA-2-XT) 1073-9682	$3.5\$	2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-IT Ethernet Controller, Operating temperature: -40 °C ~ 85 °C	more
Heatsink - Cooling Solution 1067-5535		Heatsink with Fan, 15W tdp
DC Jack Cable 1064-2433		2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm Part No.: 0C5020000004220L
COM_Port Cable 1064-2427		D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm
DIO Cable 1065-3137		D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2-Port USB 2.0 Cable 1069-7893		2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm
SATA Power Cable 1064-2430		SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm
SATA Cable with Lock 1064-2431		SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm
Audio Cable w/ 3x Phone Jack 1070-1245		HRS DF13-10DS-1.25C 1.25 pitch to PJ-2509CTPC-5-L (3.5 mm phone jack) x3, L = 400 mm
AC to DC Power Adapter (12 V) 1069-3055		Input: AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W
Starter Kits for 3.5"-SBC-TGL 1069-6976	$Starter Kits for 3.5\$	1x DC In Cable, 1x SATA Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Cooler
