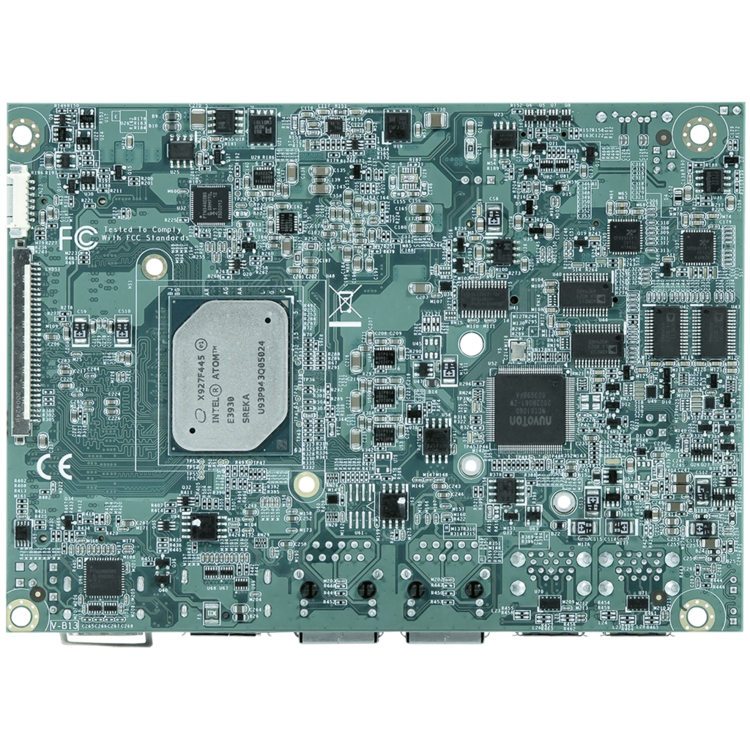

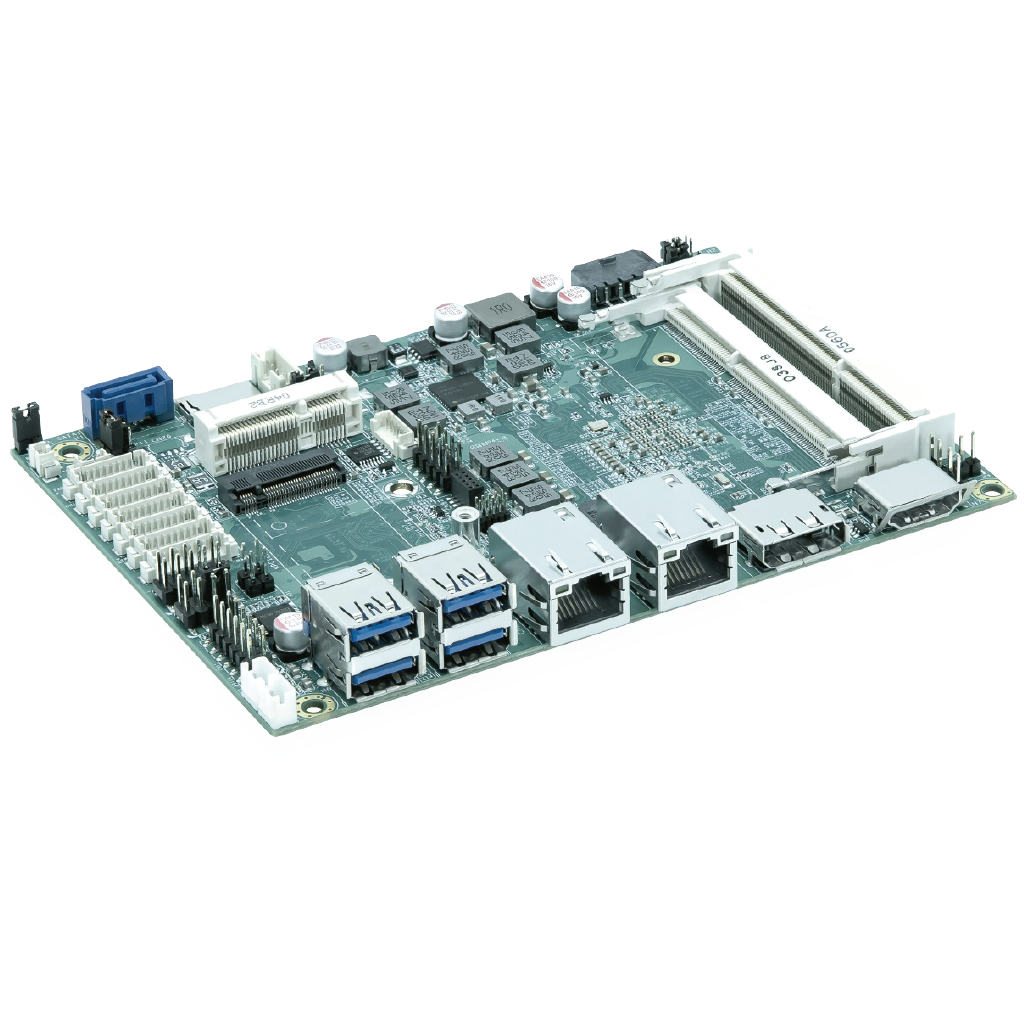

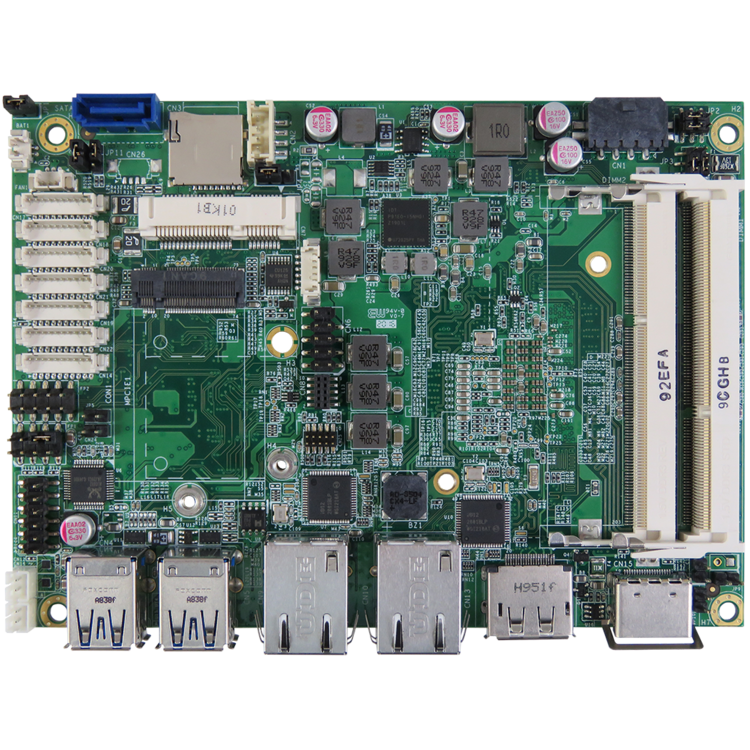

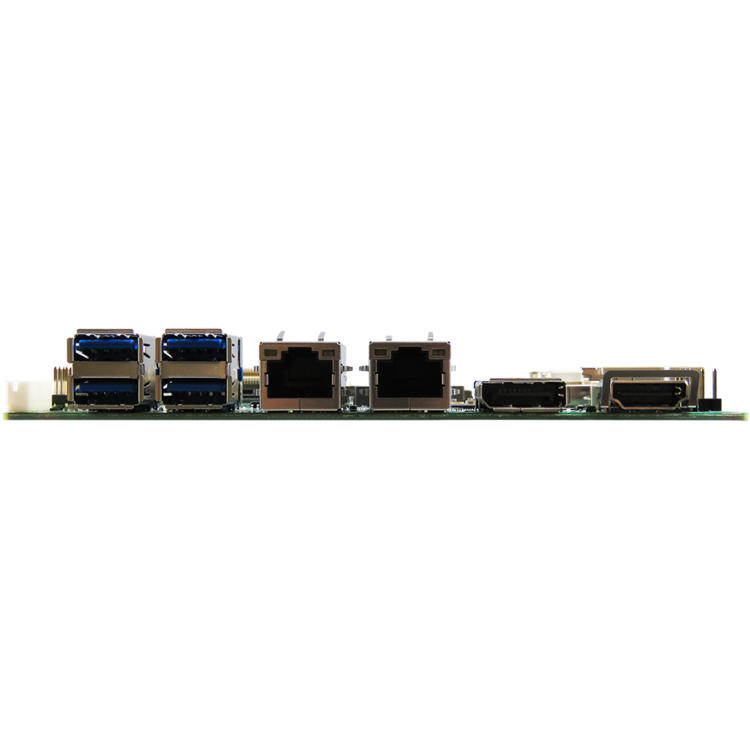

3.5"-SBC-APL-0-E3950 V2.0

Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C

Specifications

Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C

Download Datasheet

Extended / Extreme Temperature Support

Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C

Downloads

技术参数

3.5-SBC-APL V2.0 Datasheet
Revision 20230815, August 15, 2023
[ kontron-3d5-sbc-apl-v2d0-datasheet-20230815.pdf, 2.92 MB, Mar.16.2026 ]

参考手册

3.5-SBC-APL V2.0 User Guide
Revision 2.7, November 9, 2023
[ kontron-3d5-sbc-apl-v2d0-user-guide-rev-2d7-2023-11-09.pdf, 1.94 MB, Nov.10.2023 ]

3.5"-SBC Copper Pillar, Thermal Solution & eIO Installation Guide
Revision 1.0, April 14, 2025
[ 3d5-sbc-copper-pillar-thermal-solution-eio-installation-guide-rev-1d0-2025-04-14.pdf, 594.85 KB, Apr.18.2025 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

应用案例

3.5"-SBC-APL V2.0 Creates HMI for Picosecond Laser Tattoo Removal Machine
Revision 20200703, July 3, 2020
[ application-story-picosecond-laser-20200703.pdf, 2.89 MB, Sep.22.2020 ]

快速查询手册

3.5-SBC-APL V2.0 Quick Installation Guide
Revision 2.0, July 2, 2020
[ kontron-3d5-sbc-apl-v2d0-qig-20200702.pdf, 916.22 KB, Jul.03.2020 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

3.5"-SBC-APL-0-E3950 V2.0 43012-0000-20-4	$3.5\$	Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-1-E3940 V2.0 43012-0000-18-4	$3.5\$	Intel® Atom® x7-E3940, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-3-N4200 V2.0 43012-0000-25-4	$3.5\$	Intel® Pentium® N4200, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), with audio, without TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-4-N3350 V2.0 43012-0000-23-2	$3.5\$	Intel® Celeron® N3350, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), with audio, without TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-6-E3950 V2.0		Intel® Atom® x7-E3950, 3x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe), w/ audio, w/ TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-A-E3930 V2.0 43012-0000-18-2	$3.5\$	Intel® Atom® x5-E3930, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-K-J3455 V2.0 43012-0000-15-4	$3.5\$	Intel® Celeron® J3455, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/ TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-0-E3950-ET V2.0		Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: -20 °C ~ 70 °C
3.5"-SBC-APL-H-E3950-XT V2.0 43012-0000-20-4ET	$3.5\$	Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C
3.5"-SBC-APL-I-E3940-XT V2.0 43012-0000-18-4ET	$3.5\$	Intel® Atom® x5-E3940, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C
3.5"-SBC-APL-J-E3930-XT V2.0 43012-0000-18-2ET	$3.5\$	Intel® Atom® x5-E3930, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C

Accessories

COM_Port Cable 1064-2427		D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm
DIO Cable 1065-3137		D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2 Ports USB 2.0 Cable 1064-2429		USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm
SATA Cable with Lock 1064-2431		SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm
SIM Card Holder Kit 1064-2434		with SIM card holder x1, cable x1,and screws x4
Audio Cable 1064-2432		2x6P 2.54 pitch to ear phone jack x3 3.5 pitch, L=350 mm
DC Jack Cable 1064-2433		2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm Part No.: 0C5020000004220L
Heatsink - Cooling Solution E-Series 1067-5540		Heatsink E-Series Variant
Heatsink - Cooling Solution N-Series 1067-5537		Heatsink N-Series Variant
SATA Power Cable 1064-2430		SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm
