2.5"-SBC-AML/ADN New
2.5" (pITX) Single Board Computer with Intel® Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Mouseover Zoom loading...
Specifications
- Upgraded processing and graphics performance + faster AI inference capability
- Next-gen LPDDR5 memory with up to 4800 MT/s data transfer rate
- DP Alt Mode over USB-C support to carry video / audio, data & power over a single port
- Wide input voltage range for more application environments
- Hardware-based security for data protection and reliable authentication
Ideal for ultra-compact or portable IoT edge systems
2.5"-SBC-AML/ADN is a 2.5" single board computer in Pico-ITX form factor powered by Intel® Atom® x7000RE Series (codenamed Amston Lake), Intel® Atom® x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series (codenamed Alder Lake N) processors integrated with Intel® UHD Graphics Gen12 as well as next-gen high-speed LPDDR5 memory. Thus, it can deliver upgraded performance, enhanced media transcoding and faster AI inference, making it an ideal baseboard to be integrated into an ultra-compact or portable IoT edge system or an all-in-one solution for a variety of applications, such as smart retail, industrial automation, healthcare, video processing and offi ce automation.
Features
| Processor | [Standard] Intel® Atom® x7211RE (2C, 6M, 1.0/3.2GHz, 6W) Intel® Atom® x7433RE (4C, 6M, 1.5/3.4GHz, 9W) Intel® Atom® x7835RE (8C, 6M, 1.3/3.6GHz, 12W) Intel® Core™ i3-N305 (8C, 6M, 1.8/3.8GHz, 9←15W) Intel® N97 (4C, 6M, 2.0/3.6GHz, 12W) [Project] Intel® Atom® x7213RE (2C, 6M, 2.0/3.4GHz, 9W) Intel® Atom® x7211E (2C, 6M, 1.0/3.2GHz, 6W) Intel® Atom® x7213E (2C, 6M, 1.7/3.2GHz, 10W) Intel® Atom® x7425E (4C, 6M, 1.5/3.4GHz, 12W) Intel® N50 (2C 6M, 1.0/3.4GHz, 6W) Intel® N200 (4C, 6M, 1.0/3.7GHz, 6W) |
| Main Memory | 4 GByte / 8 GByte / 16 GByte LPDDR5 4800 memory down |
| Graphics Controller | Intel® UHD Graphics Gen12 |
| Display | 1x eDP (4096 x 2160 @ 60 Hz) 2x DP (4096 x 2160 @ 60 Hz, 1x Full-size DP on rear, 1x DP USB-C on rear) Triple Display Support |
| Ethernet Controller | Intel® I226-V/IT |
| Ethernet | 2x 2.5 GbE LAN (RJ45 on rear) TSN support for models with Atom® processors |
| USB | 2x USB 3.2 Gen 2 Type A (on rear) 1x USB 3.2 Gen 2 Type C (on rear, w/ DP & PD 5 V / 3 A, except Atom® x7000RE) 1x USB 3.2 Gen 1 Type C (on rear, w/ DP & PD 5 V / 3 A, only Atom® x7000RE) 2x USB 2.0 (by header) |
| Serial Ports | 2x RS232 (default) / RS232/422/485 (optional) (by header, Tx / Rx only for RS232 signal) |
| Digital Inputs (DI) | 4x DI (by wafer) |
| Digital Outputs (DO) | 4x DO (by wafer) |
| eMMC | 32 GByte / 64 GByte / 128 GByte eMMC |
| Expansion | 1x M.2 Key B (Type 2242/3042/3052/2280, w/ PCIe x2 / USB 2.0 / SATA / UIM) 1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi (Atom® x7000RE does not support CNVi)) 1x SIM Card Holder (by Wafer) |
| Input Voltage | DC 9 V ~ 20 V |
| Power connector | 1x2-pin pitch 1.25 mm Wafer |
| BIOS | AMI uEFI BIOS w/ 256 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| System Monitoring | Voltages Temperatures |
| Real Time Clock | Processor integrated RTC |
| TPM | TPM 2.0 Support (Infineon SLB 9672) |
| FP Header | 1x Header for Power Button, Reset Button, Power LED & SATA LED |
| Form Factor | Pico-ITX (100 mm x 72 mm / 3.94" x 2.83") |
| Operating Temperature | 0 °C~ 60 °C / 32 °F ~ 140 °F (Standard) -40 °C ~ 85 °C / -40 °F ~ 185 °F (Extreme) |
| Storage Temperature | -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard) -55 °C ~ 85 °C / -67 °F ~ 185 °F (Extreme) |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B, FCC Class B, ICES Class B, UKCA, UR (UL Recognized), CSA |
Downloads
技术参数
2.5"-SBC-AML/ADN Datasheet
Revision 20250718, July 18, 2025
[ 2d5-sbc-aml-adn-datasheet-20250718.pdf, 2.21 MB, Jul.18.2025 ]
参考手册
2.5"-SBC-AML/ADN User Guide
Revision 1.5, November 14, 2025
[ 2d5-sbc-aml-adn-user-guide-rev-1-d-5-2025-11-14.pdf, 2.1 MB, Nov.17.2025 ]
2.5"-SBC Copper Pillar, Thermal Solution & M.2 Module Installation Guide
Revision 1.0, July 23, 2025
[ 2d5-sbc-copper-pillar-thermal-solution-md2-installation-guide-rev-1d0-2025-07-23.pdf, 285.95 KB, Jul.24.2025 ]
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Tech Spec Sheet
2.5" SBC Tech Spec Sheet
Revision 20250219, February 19, 2025
[ 2d5-sbc-tech-spec-sheet-20250219.pdf, 2.81 MB, Nov.05.2025 ]
3.5" SBC Tech Spec Sheet
Revision 20250320, March 20, 2025
[ 3d5-sbc-tech-spec-sheet-20250320.pdf, 2.68 MB, Nov.05.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|
DC Jack Cable 1064-2433 |
|
2.5 DC Jack with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm
Part No.: 0C5020000004220L |
|
|
COM_Port Cable 1064-2427 |
|
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm | |
|
DIO Cable 1065-3137 |
|
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm | |
|
2-Port USB 2.0 Cable 1069-7893 |
|
2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm | |
|
AC to DC Power Adapter (12 V) 1069-3055 |
|
Input: AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W | |
|

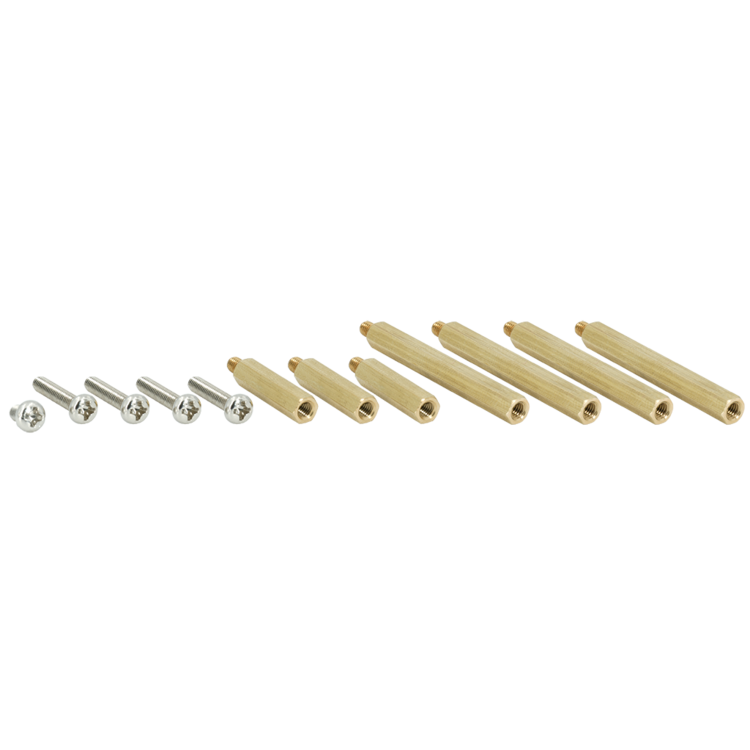

Screw Copper Pillar Kit - 12 pcs |
|
4x 39.6 mm pillar, 3x 19 mm pillar, 4x 15 mm screw, 1x 5 mm screw | |
|

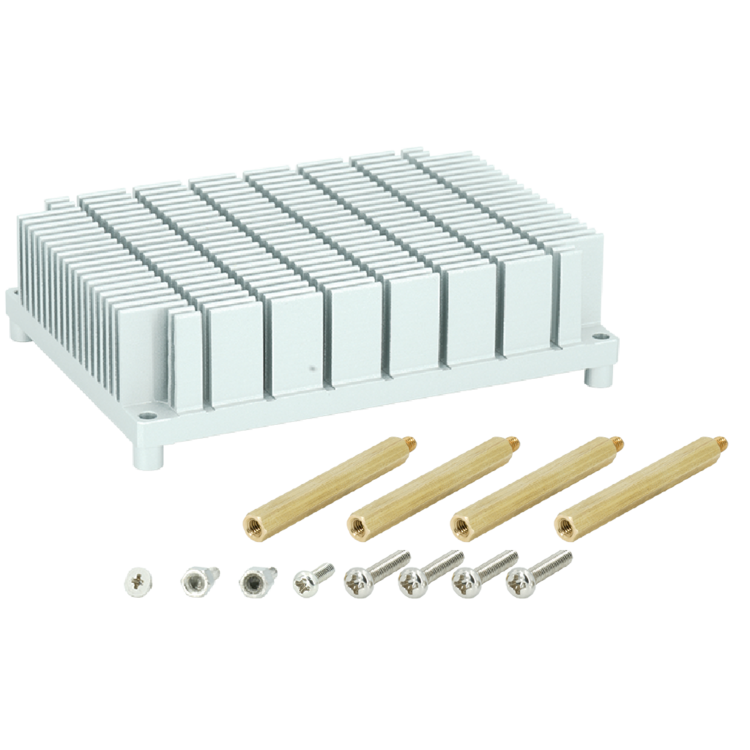

Heatsink for 2.5"-SBC-ADN 1074-8498 |
|
Al heatsink w/ pads, 2x standoff , 4x pillar, 6x screw, for 2.5”-SBC-ADN | |
|

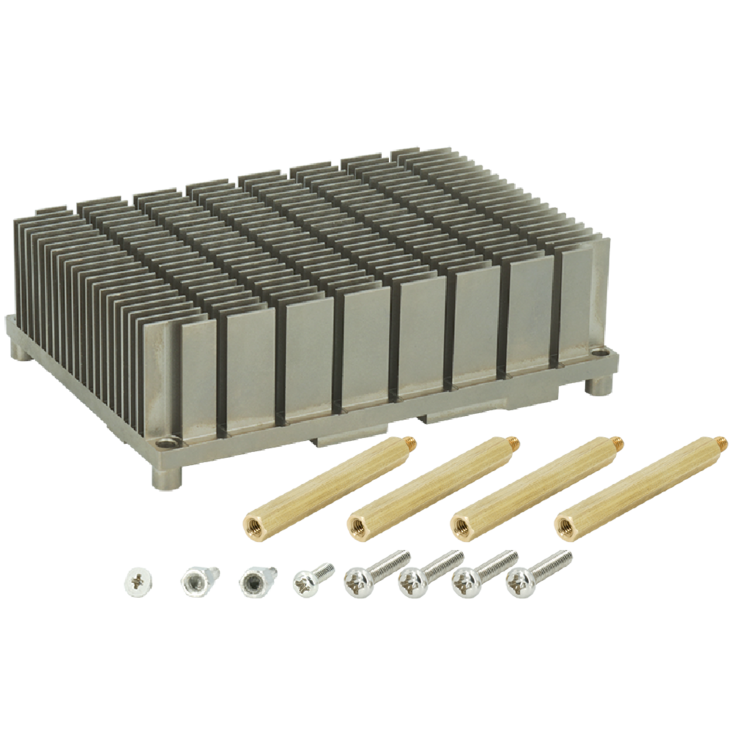

Heatsink for 2.5"-SBC-AML 1074-8828 |
|
Al +Cu heatsink w/ pads, 2x standoff , 4x pillar, 6x screw, for 2.5”-SBC-AML | |
|

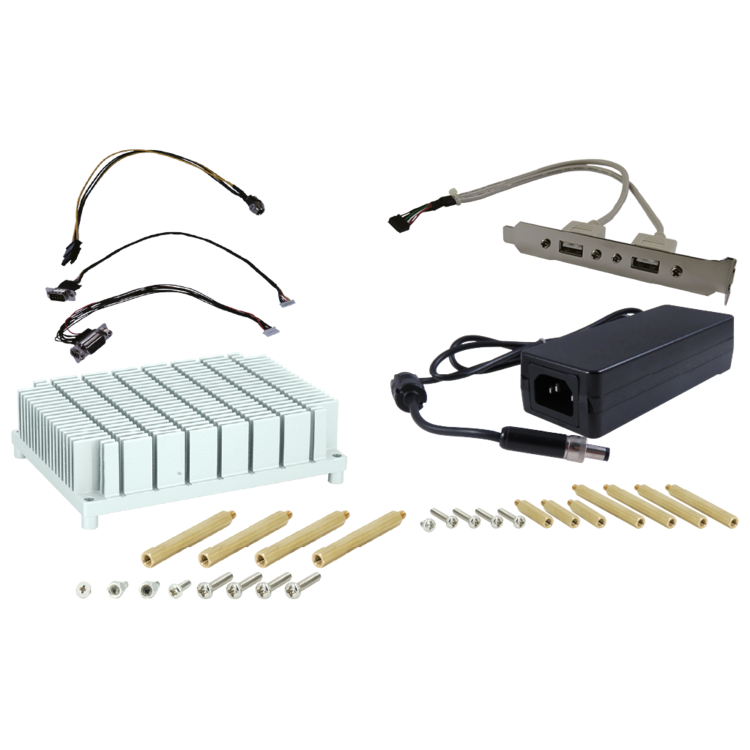

Starter Kit for 2.5"-SBC-ADN 1074-6151 |
|
1x DC In Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Power Adapter, 1x Screw Copper Pillar Kit, 1x Heatsink Kit | |
|

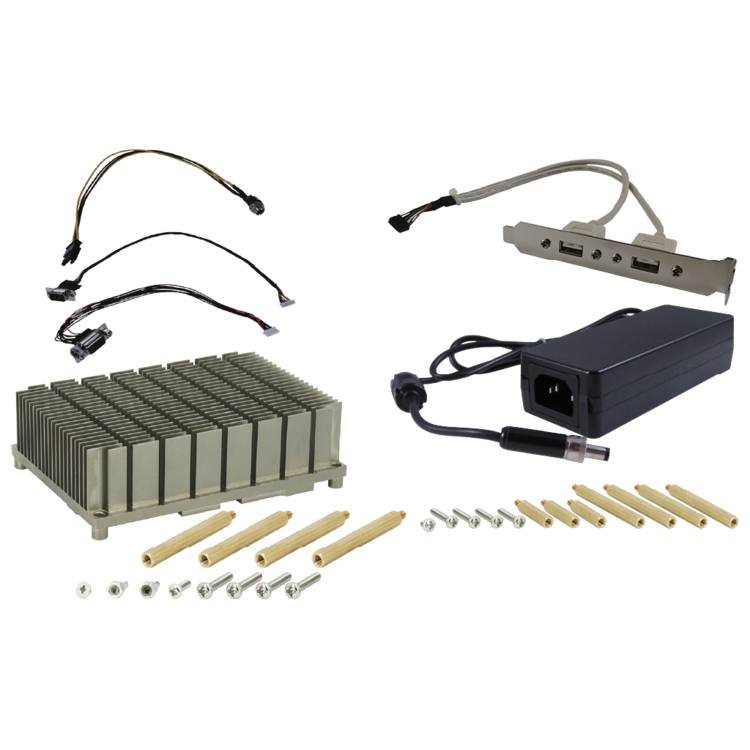

Starter Kit for 2.5"-SBC-AML 1074-7412 |
|
1x DC In Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Power Adapter, 1x Screw Copper Pillar Kit, 1x Heatsink Kit |
