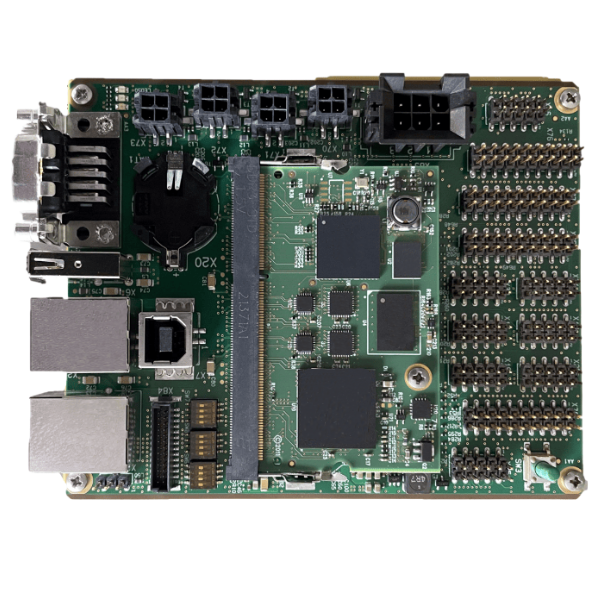

VITA 46.11 Chassis Manager

Specifications

Compliance with VITA 46.11 and SOSA™ standards
Multiple IPMI system manager interfaces for versatile communication
Comprehensive voltage monitoring capabilities
Low power consumption with single supply operation
Modular design for easy integration
Available only as part of a system solution; not sold individually

The VITA 46.11 Chassis Manager is a system management module designed for SOSA™-aligned VPX systems. It facilitates comprehensive monitoring and control of system components, including voltage, temperature, and card status. The chassis manager communicates with all components in the chassis and with higher-level entities in the operating environment. It collects information about the operating state, the temperature, and the type, number, and condition of the installed cards.

The VITA 46.11 Chassis Manager is an integral component for managing and monitoring SOSA™-aligned VPX systems. It ensures efficient system operation by providing real-time data on various system parameters and facilitating communication between components and higher-level entities.

Features

Compliance: VITA 46.11 (SOSA™ aligned)

Interfaces: 2 × IPMI system manager interfaces (RJ45, UART, or SUBD9)

Voltage Monitoring: VS1, VS2, VS3

Power Supply: 3.3VAUX single supply operation < 1 A

USB: Host & Device support

Modularity: Carrier modular and pluggable

Part Number: 1H00008020
