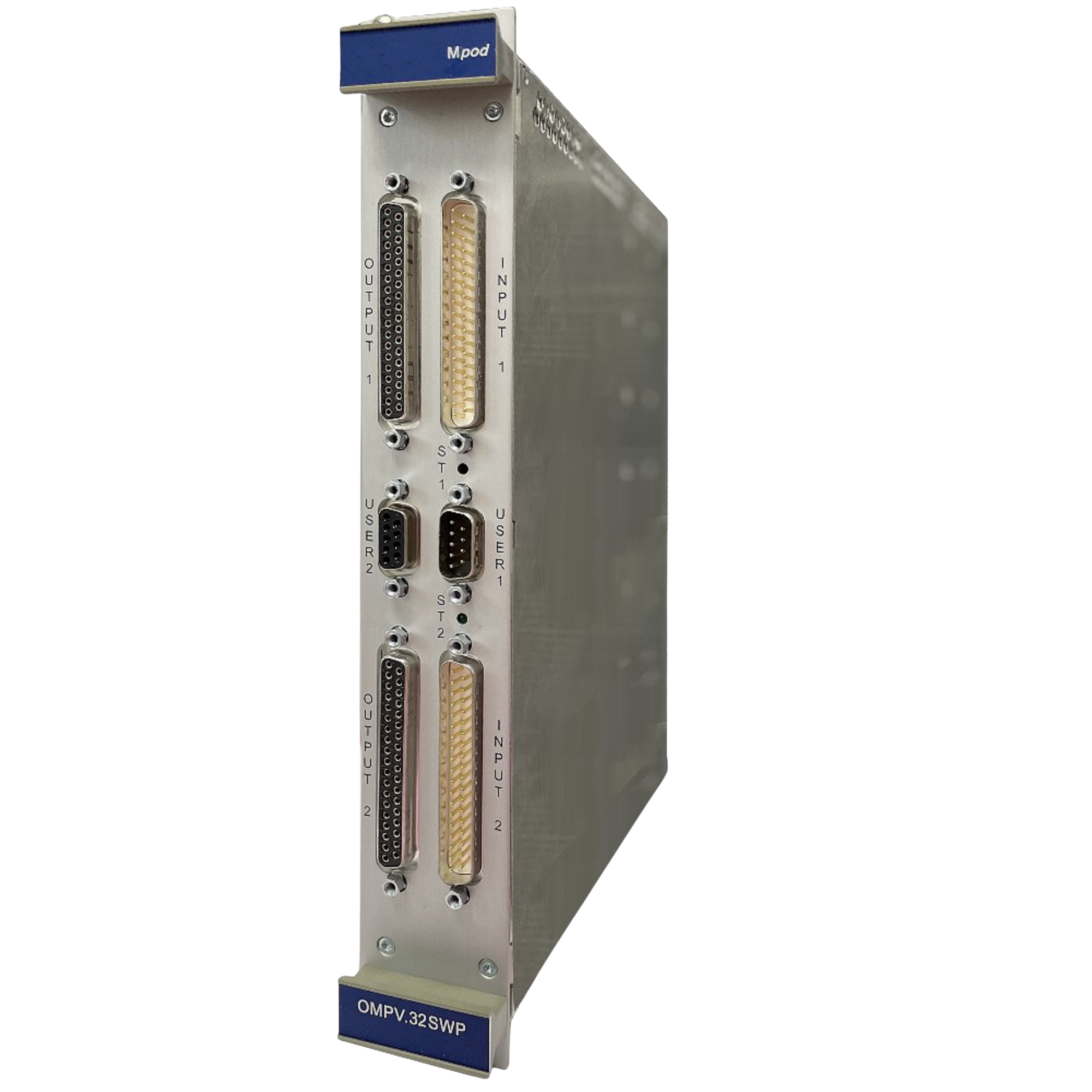

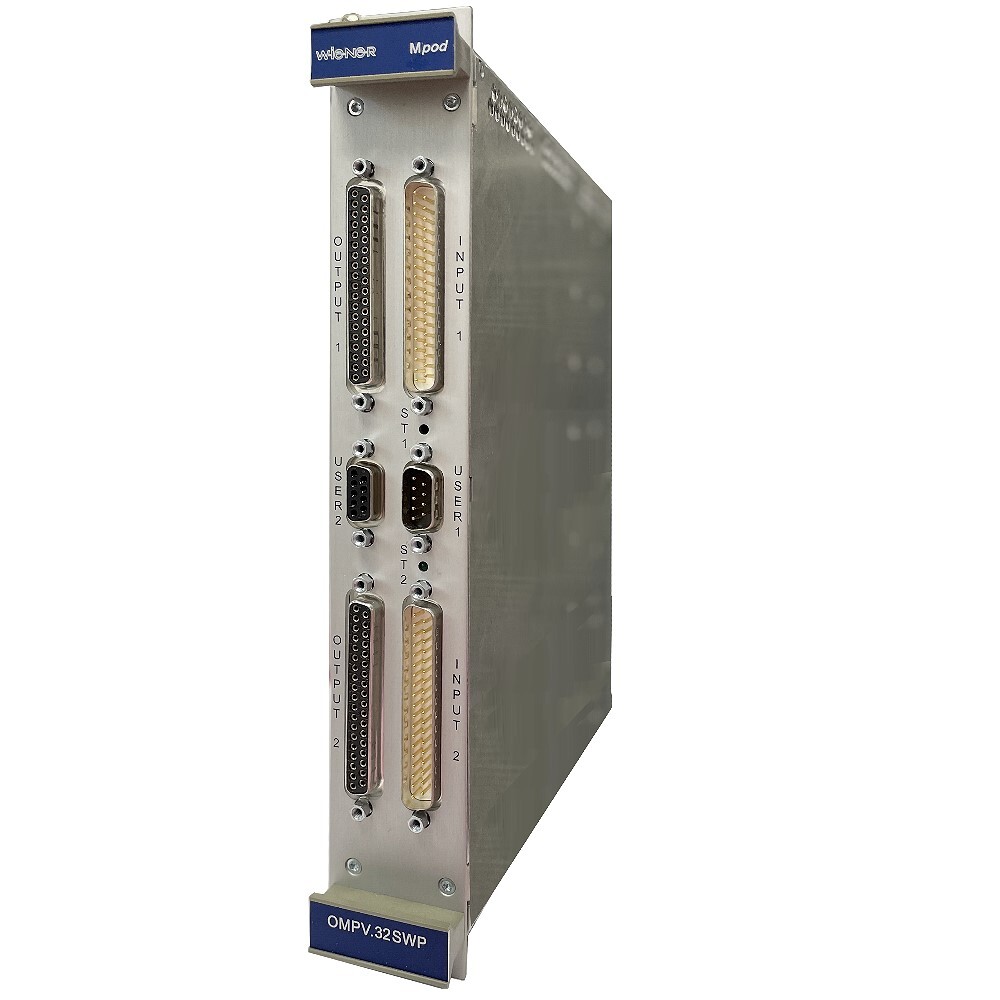

MPOD Switch Module
32-channel low voltage switching module for MPOD systems, enabling remote on/off and polarity control per channel with fast response times and minimal power loss
Specifications
- 32 independently programmable LV switch channels
- Max voltage: 60 V; max current: 5 A per channel
- Switch type: semiconductor with <5 ms response time
- Switching rate: up to 50 cycles/sec per channel
- Dimensions: 6U x 40.64 mm x 220 mm; weight ~2 kg
- Control via MPOD controller (Ethernet, SNMP)
This 32-channel low-voltage switching module is designed for use in MPOD power systems and provides a high level of flexibility and control for distributed low-voltage loads. Each of the 32 switch channels is independently programmable, allowing individual configuration and operation to match the specific requirements of complex detector, instrumentation, or test setups.
The module supports a maximum switching voltage of up to 60 V and a maximum current of 5 A per channel, making it suitable for a wide range of low-voltage applications. Semiconductor-based switching technology is used to ensure fast and reliable operation, with response times below 5 ms. This enables precise and rapid switching actions while minimizing wear and power losses typically associated with mechanical switching solutions.
With a switching capability of up to 50 cycles per second per channel, the module is well suited for applications requiring frequent or dynamic switching operations. Each channel can be controlled individually, enabling remote on/off switching as well as polarity control, which significantly simplifies system wiring and operational flexibility.
The module is designed in a compact 6U form factor with a width of 40.64 mm and a depth of 220 mm, allowing seamless integration into standard MPOD chassis. Despite its high channel density, the module maintains a low overall weight of approximately 2 kg, supporting efficient system design and handling.
Control and monitoring are performed via the MPOD controller, using Ethernet-based interfaces and SNMP communication. This allows straightforward integration into existing control infrastructures and enables centralized management, automation, and status monitoring of all switching channels. The combination of fast response times, independent channel control, and network-based management makes this module a powerful and scalable solution for modern low-voltage switching applications.
Features
| Switching Performance | Fast on/off and polarity switching Semiconductor-based switching element Switching on: 25–250 µs (up to 10 ms for all channels) Switching off: 2–20 µs Max switching rate: 50 Hz/channel |
| Channel Control | 32 channels individually programmable Switch on/off and polarity reversal functions All channels floating (to each other and to chassis ground) Max continuous current: 5 A/channel Max voltage drop per channel: 200 mV Max power loss: 1 W/channel, total 32 W + 2 W (logic) |
| Connectivity | Input: 2× 37-pin D-sub (male), 16 channels each Output: 2× 37-pin D-sub (female), 16 channels each User: 2× 9-pin D-sub (f + m) Front panel with 2 status LEDs |
| Control & Integration | Microprocessor controlled Internal CAN bus communication Control via MPOD controller using SNMP (Ethernet TCP/IP) External sense not supported for connected MPV modules |
| Mechanical | Form factor: 6U, 220 mm deep Weight: approx. 2 kg |
Downloads
Datasheets
MPOD Switch Module Datasheet
[ mpod-switch-module-datasheet.pdf, 270.76 KB, Aug.04.2025 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|
MPV 32SWP |
|
Channels per module: 32 • Voltages: 0 - 60V • Max: 5A • Peak Power: 50W / ch. |
