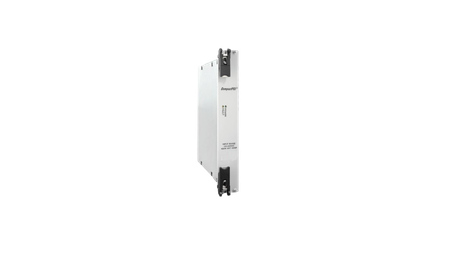

MPOD Low Voltage Module
Compact multichannel low-voltage power modules for MPOD mainframes, providing high-precision, low-noise DC outputs with individual monitoring and control.
Specifications
- Up to 16 or 4 individually controlled LV channels per module
- Output power: 50 W up to 225 W per channel
- Voltage ranges: 0–8 V, 0–16 V, 0–30 V, 0–60 V, 0–120 V
- Resolution: up to 21 bit for voltage/current (High Precision Series)
- Ripple & noise: <3 mVpp (0–20 MHz)
- Dimensions: 6U x 40.64 mm x 220 mm; weight ~2 kg
The MPOD Low Voltage Module is a compact, high-performance power supply solution for MPOD mainframes, offering up to 16 (or 4) independently controlled low-voltage channels. With output power from 50 W to 225 W per channel and voltage ranges from 0–8 V up to 0–120 V, it supports a wide range of applications.
High-resolution voltage and current control of up to 21-bit and extremely low ripple and noise below 3 mVpp make the module ideal for sensitive electronic loads. Its 6U form factor, robust design, and precise control ensure reliable operation in laboratory, industrial, and scientific environments.
Features
| Compliance | CE EN 60950, ISO 380, VDE 0805, UL 1950, C22.2.950 EMC: EN 61000-6-2/3, EN 55022 Class B (conducted & radiated noise) ESD, burst, surge & HF immunity according to EN standards |
| Power & Efficiency | 50 W or 100 W per channel Efficiency: 75–85% depending on module Extremely low ripple: <3 mVpp Voltage rise time: 50 ms, monotonic, processor controlled Terminal & load voltage sensing per channel Programmable ramp speed (1 V/s to 500 V/s) |
| Protection Features | Overvoltage protection with crowbar trip at 125% Undervoltage, overload, overtemperature, fan failure trip-off within 5 ms Adjustable current limits Outputs discharged on fault |
| Management & Control | Individual channel control and monitoring Control input per channel for Interlock/Inhibit Remote control via Ethernet (TCP/IP) and USB Programmable parameters: voltage, current, trip points, regulation type Grouping & error handling features Status LEDs per channel |
| Design & Components | Floating, individually sensed outputs No shared returns – individual return lines Mechanically shielded, rugged 6U module design No wet electrolytic capacitors Maintenance-free operation time: >65,000 h at 40 °C |
| Mechanical | 6U height, 220 mm depth Output: 2 × 37-pin Sub-D connectors Weight: ~2 kg Operating temp: 0–50 °C; Storage: –30 to +85 °C Stability: 10 mV or 0.1% over 24 h |
Downloads
Datasheets
MPOD Low Voltage Module
[ mpod-low-voltage-module.pdf, 316.67 KB, Aug.04.2025 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|

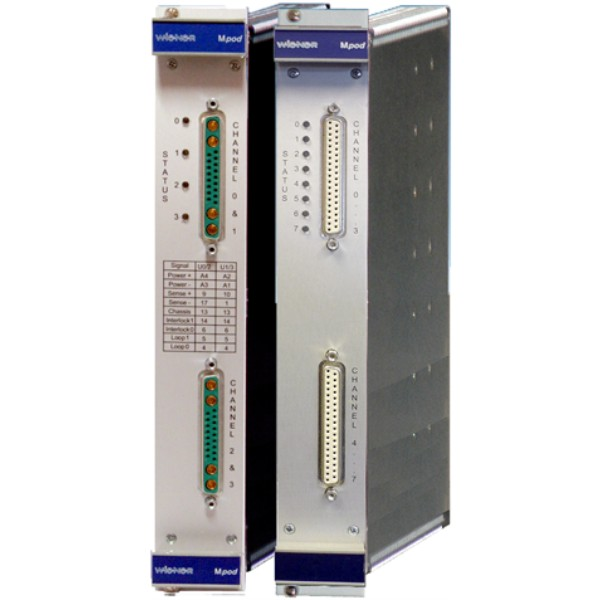

MPV 8008I |
|
Channels: 8 • Voltage: 0–8 V • Current max: 10 A • Peak Power: 50 W per channel • Voltage Resolution: 0.5 mV • Current Resolution: 0.5 mA • Ripple: < 3 mVpp | |
|
MPV 8016I |
|
Channels: 8 • Voltage: 0–16 V • Current max: 5 A • Peak Power: 50 W per channel • Voltage Resolution: 1 mV • Current Resolution: 0.25 mA • Ripple: < 2 mVpp | |
|
MPV 8030I |
|
Channels: 8 • Voltage: 0–30 V • Current max: 2.5 A • Peak Power: 50 W per channel • Voltage Resolution: 2 mV • Current Resolution: 0.12 mA • Ripple: < 2 mVpp | |
|
MPV 8060I |
|
Channels: 8 • Voltage: 0–60 V • Current max: 1 A • Peak Power: 50 W per channel • Voltage Resolution: 4 mV • Current Resolution: 0.06 mA • Ripple: < 2 mVpp | |
|
MPV 8120I |
|
Channels: 8 • Voltage: 0–120 V • Current max: 100 mA • Peak Power: 50 W per channel • Voltage Resolution: 4 mV • Current Resolution: 4 µA • Ripple: < 2 mVpp | |
|
MPV 8008H |
|
Channels: 8 • Voltage: 0–8 V • Current max: 10 A • Peak Power: 50 W per channel • Voltage Resolution: 2 µV • Current Resolution: 1.5 µA • Ripple: < 3 mVpp | |
|
MPV 8016H |
|
Channels: 8 • Voltage: 0–16 V • Current max: 5 A • Peak Power: 50 W per channel • Voltage Resolution: 5 µV • Current Resolution: 760 nA • Ripple: < 2 mVpp | |
|
MPV 8030H |
|
Channels: 8 • Voltage: 0–30 V • Current max: 2.5 A • Peak Power: 50 W per channel • Voltage Resolution: 8 µV • Current Resolution: 760 nA • Ripple: < 2 mVpp | |
|
MPV 8060H |
|
Channels: 8 • Voltage: 0–60 V • Current max: 1 A • Peak Power: 50 W per channel • Voltage Resolution: 17 µV • Current Resolution: 300 nA • Ripple: < 2 mVpp | |
|
MPV 8120H |
|
Channels: 8 • Voltage: 0–120 V • Current max: 100 mA • Peak Power: 50 W per channel • Voltage Resolution: 40 µV • Current Resolution: 32 nA • Ripple: < 2 mVpp | |
|
MPV 4008I |
|
Channels: 4 • Voltage: 0–8 V • Current max: 20 A • Peak Power: 100 W per channel • Voltage Resolution: 0.5 mV • Current Resolution: 0.5 mA • Ripple: < 3 mVpp | |
|
MPV 4016I |
|
Channels: 4 • Voltage: 0–16 V • Current max: 10 A • Peak Power: 100 W per channel • Voltage Resolution: 1 mV • Current Resolution: 0.25 mA • Ripple: < 2 mVpp | |
|
MPV 4030I |
|
Channels: 4 • Voltage: 0–30 V • Current max: 5 A • Peak Power: 100 W per channel • Voltage Resolution: 2 mV • Current Resolution: 0.12 mA • Ripple: < 2 mVpp | |
|
MPV 4060I |
|
Channels: 4 • Voltage: 0–60 V • Current max: 2 A • Peak Power: 100 W per channel • Voltage Resolution: 4 mV • Current Resolution: 0.06 mA • Ripple: < 2 mVpp |
