EZ3-VX3230 This product is legacy

Turnkey PowerPC 3U VPX Platform

Specifications

1 GHz Freescale MPC8544
Air-Cooled Laboratory Environment
VITA 46 Slots for Extensions
Equipment for Wind River VxWorks Live USB Evaluation Environment
Pre-Installed Linux or VxWorks
Ideal for VPX Evaluation and Software Development

Turnkey PowerPC 3U VPX Platform

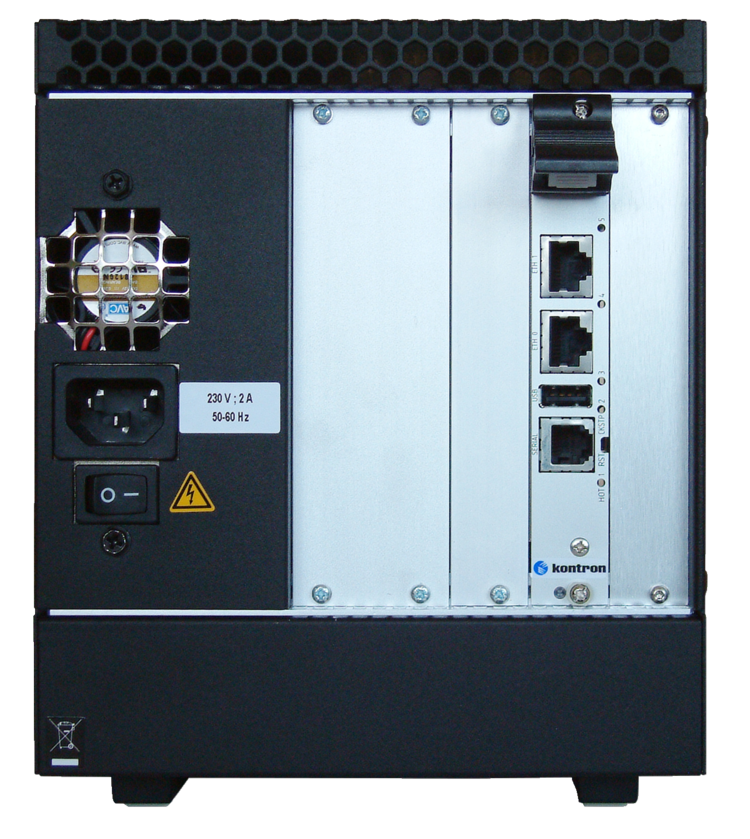

This small air-cooled 3U VPX rack is fitted with a Kontron VX3230 single board computer and its rear transition module (RTM).

The Freescale MPC8544 offers 1 GB of main memory and runs at 1 GHz.

Ordering Code: EZ3-VX3230-00-1K
This system is delivered with the Wind River VxWorks LiveUSB Evaluation Kit. Using the specially
configured evaluation environment provided in this kit, you will quickly be able to use Wind River’s market leading
development tools and run VxWorks, the world’s most popular real-time operating system, on the Kontron
EZ3-VX3230.

Ordering Code: EZ3-VX3230-00-L
This system is delivered with a SATA hard disk device (HDD) preloaded with a complete Fedora Linux distribution augmented with the VX3230 board support package.

Ordering Code: EZ3-VX3230-00-V, EZ3-VX3230-0P-V
This system is delivered with a SATA hard disk device (HDD) preloaded with a complete VxWorks distribution augmented with the VX3230 board support package.

Features

CPU	Freescale MPC8544 @ 1 GHz, 1 GB DDR2-533 SDRAM

Dimensions (H x W x D)

195 x 300 x 185 mm

Connectivity

Front Panel: USB, Gigabit Ethernet, Serial

Power Supply

200W

Temperature

Operating: 0°C to +35°C
