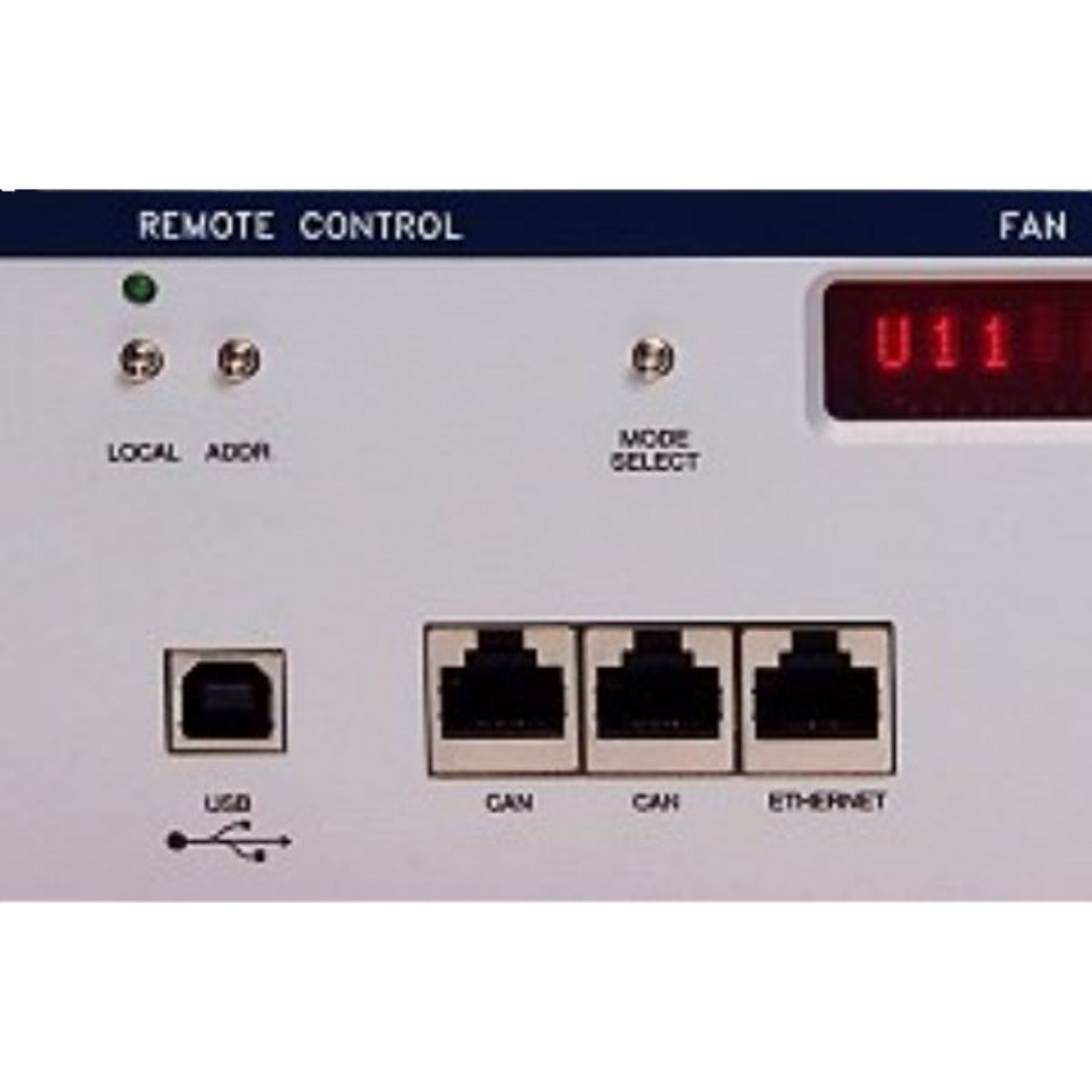

Ethernet Option
The Ethernet Option is a “combo interface” add-on for Wiener chassis, crates, and power supplies that enables remote monitoring and control via standard Ethernet networks.
- Easy integration into standard LANs
- Auto 10/100 Mbps Ethernet
- Embedded web server for browser-based control and monitoring
- SNMP v2c interface for full remote access
- Combined interface versions with CAN-bus / RS232 / USB
Product Information
The Ethernet Option allows Wiener crates and power supplies to be controlled and monitored over a LAN. Using standard Ethernet and TCP/IP protocols, the interface provides a web GUI and SNMP access to retrieve real-time information (voltages, currents, temperatures, fan speeds), issue control commands (ON/OFF, reset, fan speed), and integrate into networked monitoring systems. This simplifies remote operation and supervision of experimental setups or distributed instrumentation.
Technical data
| Features | Supported Devices: Wiener VME / VME64x / VXI crates (4000 & 6000 families), PL5xx power supplies Interface Types: Ethernet (TCP/IP), CAN-bus, RS232 / USB in “combo interface” versions Network Speeds: Auto-switching 10 M / 100 M Ethernet Front-end Web Interface: Embedded WWW server (port 80) for basic control via browser (status, voltages, currents, temperature, fan speeds, ON/OFF, SYSRES) SNMP Support: SNMP v2c over TCP/IP (port 69) for full parameter access (chassis, bin, supplies) Ordering / Part Info: Option “EX” (Ethernet combo interface) can be configured for Wiener crates / power supplies |
|---|
